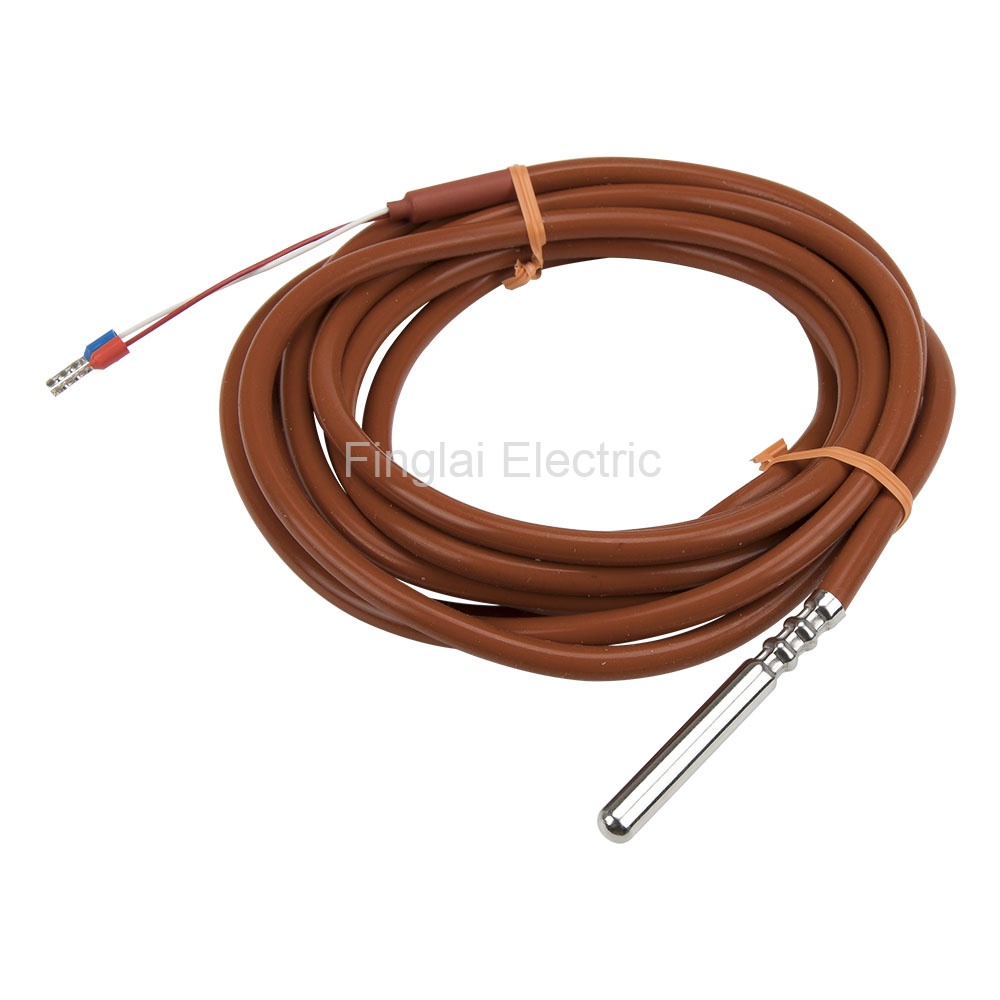

FTARP03-NTC 6*50mm stainless steel probe 3m silica gel cable 10K 3435 NTC temperature sensor
Product features
Price: US $5.32 / piece
Model number: FTARP03-NTC-D6L50R10B3435S3
Product name: Temperature sensor
Probe length:
50mmDeliver to:
Shipping:
US $4.92via
Estimated Delivery Time: 9-15 days
Total price:US $10.24
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Type | Measuring range | Online store: |
FTARP03-PT100 | PT100 | -50-150 ℃ | US $2.74 - 10.07/ pieceOrder (14) |
FTARP03-CU50 | Cu50 | -50-150 ℃ | US $2.2 - 4.58/ pieceOrder (8) |
FTARP03-NTC | NTC | PVC: -5-80 ℃; Silica gel: -50-180 ℃ | Visiting... |
▇ FTARP03-NTC temperature sensor model number legend
FTARP03-NTC
Parent Model Number
▇ General
Model number | FTARP03 series |
Mounting form | Polish rod probe |
Resistacne | NTC: 10KΩ at 25°C |
B value | NTC: 3435K at 25/85°C; 3950K at 25/85°C |
Probe material | Stainless steel |
Probe diameter | 5, 6mm Current: 6mm |
Probe length | 30mm, 50mm, can be customized Current: 50mm |
Cable material | PVC; Silica gel |
Cable length | Standard is 2m, customer can select 1, 3 ,5, 10m or specify the cable length Current: 3m |
Thermal response time | <12s |
Insulating resistance | 20MΩ min |
Purpose | Cold storage, Pharmaceutical GMP monitoring system, Telecommunications room, Beer production, Building automation control, Incubation, Aquaculture, Greenhouse, Air conditioning, Household refrigerators |
Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARP03-NTC temperature sensor child models
No | Model Number | Probe Diameter | Probe Length | Resistacne | B Value | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
1 | FTARP03-NTC-D5L50R10B3435P0.5 | 5mm | 50mm | 10K | 3435K | PVC | 0.5m | 1 | US $2.66 | Order |
2 | FTARP03-NTC-D5L50R10B3435P1 | 5mm | 50mm | 10K | 3435K | PVC | 1m | 1 | US $2.66 | Order |
3 | FTARP03-NTC-D5L50R10B3435P2 | 5mm | 50mm | 10K | 3435K | PVC | 2m | 1 | US $3.25 | Order |
4 | FTARP03-NTC-D5L50R10B3435S0.5 | 5mm | 50mm | 10K | 3435K | Silica gel | 0.5m | 1 | US $2.96 | Order |
5 | FTARP03-NTC-D5L50R10B3435S1 | 5mm | 50mm | 10K | 3435K | Silica gel | 1m | 1 | US $3.55 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
