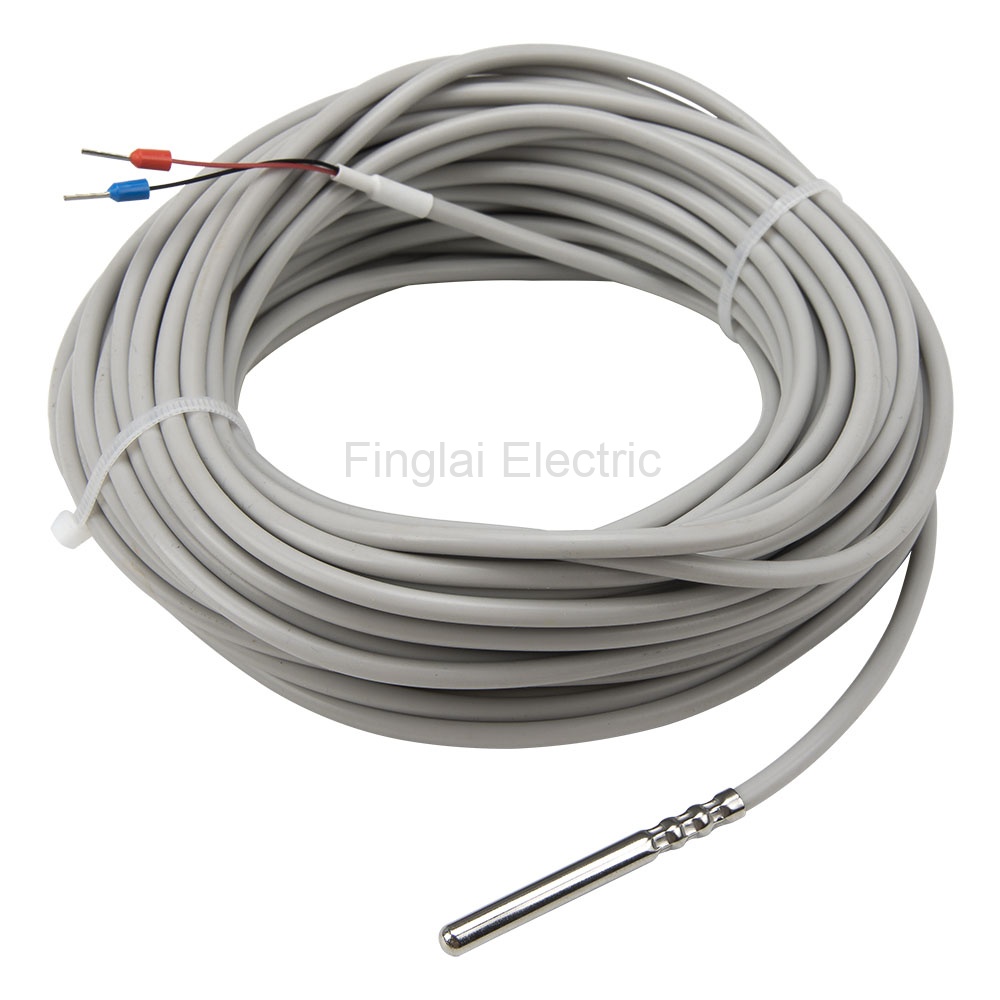

FTARP03-NTC 5*50mm stainless steel probe 15m silica gel cable 10K 3435 NTC temperature sensor

Product features
Price: US $11.81 / piece
Model number: FTARP03-NTC-D5L50R10B3435S15
Product name: Temperature sensor
Probe diameter:
5mm
US $11.81
6mm
US $11.81
Probe length:
50mm
Resistacne:
10K
US $11.81
3K
B value:
3435K
US $11.81
3950K
US $11.81
Cabel material:
PVCSilica gel
US $11.81
Deliver to:
Shipping:
US $8.53via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $20.34
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP03-PT100PT100-50-150 ℃US $2.74 - 10.07/ pieceOrder (14)
FTARP03-CU50Cu50-50-150 ℃US $2.2 - 4.58/ pieceOrder (8)
FTARP03-NTCNTCPVC: -5-80 ℃; Silica gel: -50-180 ℃Visiting...
FTARP03-NTC temperature sensor model number legend
FTARP03-NTC


Parent Model Number
-D5


Probe diameter
L50


Probe length
R10


Resistacne
S


Cabel material
General
Model number FTARP03 series
Mounting form Polish rod probe
Resistacne NTC: 10KΩ at 25°C
B value NTC: 3435K at 25/85°C; 3950K at 25/85°C
Probe material Stainless steel
Probe diameter 5, 6mm
Current: 5mm
Probe length 30mm, 50mm, can be customized
Current: 50mm
Cable material PVC; Silica gel
Cable length Standard is 2m, customer can select 1, 3 ,5, 10m or specify the cable length
Current: 15m
Thermal response time <12s
Insulating resistance 20MΩ min
Purpose Cold storage, Pharmaceutical GMP monitoring system, Telecommunications room, Beer production, Building automation control, Incubation, Aquaculture, Greenhouse, Air conditioning, Household refrigerators
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARP03-NTC temperature sensor child models
No Model Number Probe Diameter Probe Length Resistacne B Value Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP03-NTC-D5L50R10B3435P0.5 5mm 50mm 10K 3435K PVC 0.5m 1 US $2.66 Order
2 FTARP03-NTC-D5L50R10B3435P1 5mm 50mm 10K 3435K PVC 1m 1 US $2.66 Order
3 FTARP03-NTC-D5L50R10B3435P2 5mm 50mm 10K 3435K PVC 2m 1 US $3.25 Order
4 FTARP03-NTC-D5L50R10B3435S0.5 5mm 50mm 10K 3435K Silica gel 0.5m 1 US $2.96 Order
5 FTARP03-NTC-D5L50R10B3435S1 5mm 50mm 10K 3435K Silica gel 1m 1 US $3.55 Order Unfold
6 FTARP03-NTC-D5L50R10B3435S2 5mm 50mm 10K 3435K Silica gel 2m 1 US $4.43 Order
7 FTARP03-NTC-D5L50R10B3435S3 5mm 50mm 10K 3435K Silica gel 3m 1 US $5.32 Order
8 FTARP03-NTC-D5L50R10B3435S5 5mm 50mm 10K 3435K Silica gel 5m 1 US $6.2 Order
9 FTARP03-NTC-D5L50R10B3435S10 5mm 50mm 10K 3435K Silica gel 10m 1 US $8.27 Order
10 FTARP03-NTC-D5L50R10B3435S15 5mm 50mm 10K 3435K Silica gel 15m 1 US $11.81 Visiting...
11 FTARP03-NTC-D5L50R10B3950P0.5 5mm 50mm 10K 3950K PVC 0.5m 1 US $2.66 Order
12 FTARP03-NTC-D5L50R10B3950P1 5mm 50mm 10K 3950K PVC 1m 1 US $2.66 Order
13 FTARP03-NTC-D5L50R10B3950P2 5mm 50mm 10K 3950K PVC 2m 1 US $3.25 Order
14 FTARP03-NTC-D5L50R10B3950S0.5 5mm 50mm 10K 3950K Silica gel 0.5m 1 US $2.96 Order
15 FTARP03-NTC-D5L50R10B3950S1 5mm 50mm 10K 3950K Silica gel 1m 1 US $3.55 Order
16 FTARP03-NTC-D5L50R10B3950S2 5mm 50mm 10K 3950K Silica gel 2m 1 US $4.43 Order
17 FTARP03-NTC-D5L50R10B3950S3 5mm 50mm 10K 3950K Silica gel 3m 1 US $5.32 Order
18 FTARP03-NTC-D5L50R10B3950S5 5mm 50mm 10K 3950K Silica gel 5m 1 US $6.2 Order
19 FTARP03-NTC-D5L50R10B3950S10 5mm 50mm 10K 3950K Silica gel 10m 1 US $8.27 Order
20 FTARP03-NTC-D5L50R10B3950S15 5mm 50mm 10K 3950K Silica gel 15m 1 US $11.81 Order
21 FTARP03-NTC-D6L50R10B3435P0.5 6mm 50mm 10K 3435K PVC 0.5m 1 US $2.66 Order
22 FTARP03-NTC-D6L50R10B3435P1 6mm 50mm 10K 3435K PVC 1m 1 US $2.66 Order
23 FTARP03-NTC-D6L50R10B3435P2 6mm 50mm 10K 3435K PVC 2m 1 US $3.25 Order
24 FTARP03-NTC-D6L50R10B3435S0.5 6mm 50mm 10K 3435K Silica gel 0.5m 1 US $2.96 Order
25 FTARP03-NTC-D6L50R10B3435S1 6mm 50mm 10K 3435K Silica gel 1m 1 US $3.55 Order
26 FTARP03-NTC-D6L50R10B3435S2 6mm 50mm 10K 3435K Silica gel 2m 1 US $4.43 Order
27 FTARP03-NTC-D6L50R10B3435S3 6mm 50mm 10K 3435K Silica gel 3m 1 US $5.32 Order
28 FTARP03-NTC-D6L50R10B3435S5 6mm 50mm 10K 3435K Silica gel 5m 1 US $6.2 Order
29 FTARP03-NTC-D6L50R10B3435S10 6mm 50mm 10K 3435K Silica gel 10m 1 US $8.27 Order
30 FTARP03-NTC-D6L50R10B3435S15 6mm 50mm 10K 3435K Silica gel 15m 1 US $11.81 Order
31 FTARP03-NTC-D6L50R10B3950P0.5 6mm 50mm 10K 3950K PVC 0.5m 1 US $2.66 Order
32 FTARP03-NTC-D6L50R10B3950P1 6mm 50mm 10K 3950K PVC 1m 1 US $2.66 Order
33 FTARP03-NTC-D6L50R10B3950P2 6mm 50mm 10K 3950K PVC 2m 1 US $3.25 Order
34 FTARP03-NTC-D6L50R10B3950S0.5 6mm 50mm 10K 3950K Silica gel 0.5m 1 US $2.96 Order
35 FTARP03-NTC-D6L50R10B3950S1 6mm 50mm 10K 3950K Silica gel 1m 1 US $3.55 Order
36 FTARP03-NTC-D6L50R10B3950S2 6mm 50mm 10K 3950K Silica gel 2m 1 US $4.43 Order
37 FTARP03-NTC-D6L50R10B3950S3 6mm 50mm 10K 3950K Silica gel 3m 1 US $5.32 Order
38 FTARP03-NTC-D6L50R10B3950S5 6mm 50mm 10K 3950K Silica gel 5m 1 US $6.2 Order
39 FTARP03-NTC-D6L50R10B3950S10 6mm 50mm 10K 3950K Silica gel 10m 1 US $8.27 Order
40 FTARP03-NTC-D6L50R10B3950S15 6mm 50mm 10K 3950K Silica gel 15m 1 US $11.81 Order
41 FTARP03-NTC-D6L50R3B3950P1 6mm 50mm 3K 3950K PVC 1m 1 US $3.55 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.32kg
Package size: 14.5 x 8.5 x 10.5 cm
