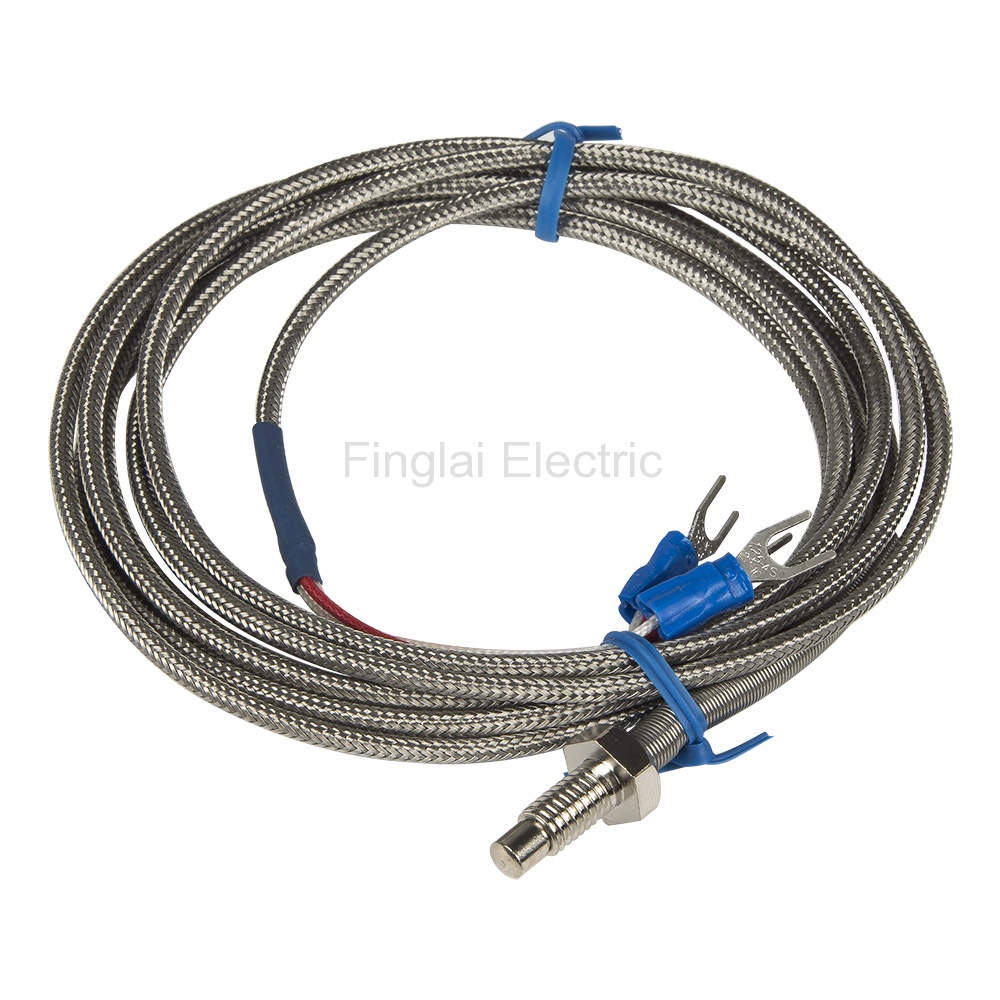

FTARB02 PT100 type 2B grade M6 bolt spring protected 2m high temperature metal screening cable RTD screw temperature sensor
Product features
Mouse over to zoom in
FTARB02 PT100 type 2B grade M6 bolt spring protected 2m high temperature metal screening cable RTD screw temperature sensor
Price: US $4.64 / piece
Model number: FTARB02-PT100-2BM6HM2
Product name: Temperature sensor
Accuracy:
2B grade: ±(0.6℃+1%|t|)US $4.64B grade: ±(0.3℃+0.5%|t|)
US $5.32A grade: ±(0.15℃+0.2%|t|)
US $5.771/3B grade: ±(0.1℃+0.17%|t|)
Cabel material:
High temperature metal screeningUS $4.64High quality PTFE silver plated copper
US $5.32
Cable length:
0.5mUS $3.971m
US $3.971.5m2m
US $4.643m
US $5.324m
US $5.995m
US $6.6610m
US $10.0312m
US $11.38
Deliver to:
Shipping:
US $5.78via
Estimated Delivery Time: 9-15 days
Total price:US $10.42
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Type | Measuring range | Online store: |
FTARB02-K | K | Metal screening: 0-600 ℃; Silica gel: 0-200 ℃ | US $1.46 - 7.56/ pieceOrder (17) |
FTARB02-E | E | 0-400℃ | US $1.46 - 6.1/ pieceOrder (8) |
FTARB02-J | J | 0-400℃ | |
FTARB02-PT100 | PT100 | Metal calbe: -50-450℃; PTFE cable: -50-260℃ | Visiting... |
▇ FTARB02-PT100 temperature sensor model number legend
FTARB02-PT100
Parent Model Number
-2B
Accuracy
▇ General
Model number | FTARB02 series |
Mounting form | Bolt |
Accuracy | K, E, J: ±0.4%t; PT100: 2B grade: ±(0.6℃+1%|t|); B grade: ±(0.3℃+0.5%|t|); A grade: ±(0.15℃+0.2%|t|); 1/3B grade: ±(0.1℃+0.17%|t|) Current: 2B grade: ±(0.6℃+1%|t|) |
Work type | Thermocouple: Ungrounded |
Thread size | M6. Can make M8, M10, M12 Current: M6 |
Cable material | High Temperature resistance metal screening; High quality PTFE silver plated copper |
Cable length | Standard is 2m, customer can select 0.5, 1, 3, 4, 5 , 7, 8, 10m or customized Current: 2m |
Thermal response time | Thermocouple: <0.5s; RTD: <12s |
Insulating resistance | 5MΩ min at 20℃, RH<80% |
Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARB02-PT100 temperature sensor child models
No | Model Number | Accuracy | Thread Size | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
1 | FTARB02-PT100-2BM6HM0.5 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 0.5m | 1 | US $3.97 | Order |
2 | FTARB02-PT100-2BM6HM1 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 1m | 1 | US $3.97 | Order |
3 | FTARB02-PT100-2BM6HM2 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 2m | 1 | US $4.64 | Visiting... |
4 | FTARB02-PT100-2BM6HM3 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 3m | 1 | US $5.32 | Order |
5 | FTARB02-PT100-2BM6HM4 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 4m | 1 | US $5.99 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.09kg
Package size: 10 x 10 x 4 cm
