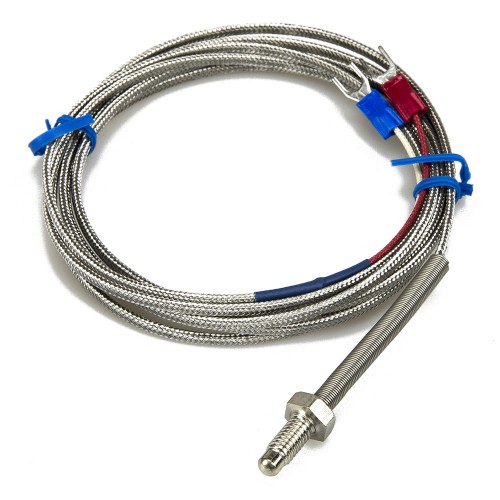

FTARB02-E series E bolt spring protected thermocouple temperature sensors

Main child models

Mouse over to zoom in

Price: US $2.02 / piece

Model number: FTARB02-E-M6HM2

Product name: Thermocouple

Thread size:

Cabel material:

Cable length:

Product description

▇ Model number and parameters

▇ FTARB02-E thermocouple model number legend

FTARB02-E

Parent Model Number

Thread size

-M6: M6

-M8: M8

Cabel material

Cable length

0.5: 0.5m

▇ General

Model number	FTARB02 series
Mounting form	Bolt
Accuracy	K, E, J: ±0.4%t; PT100: 2B grade: ±(0.6℃+1%\|t\|); B grade: ±(0.3℃+0.5%\|t\|); A grade: ±(0.15℃+0.2%\|t\|); 1/3B grade: ±(0.1℃+0.17%\|t\|)
Work type	Thermocouple: Ungrounded
Thread size	M6. Can make M8, M10, M12
Cable material	High Temperature resistance metal screening; High quality FEP silver plated copper
Cable length	Standard is 2m, customer can select 0.5, 1, 3, 4, 5 , 7, 8, 10m or customized
Thermal response time	Thermocouple: <0.5s; RTD: <12s
Insulating resistance	5MΩ min at 20℃, RH<80%
Technical article	PT100 Platinum RTD temperature resistance list - 0.00385 coefficient

▇ FTARB02-E thermocouple child models

No	Model Number	Thread Size	Cabel Material	Cable Length	MOQ	Unit Price
1	FTARB02-E-M6HM1	M6	high temperature metal screening	1m	1	US $1.46
2	FTARB02-E-M6HM2	M6	high temperature metal screening	2m	1	US $2.02
3	FTARB02-E-M6HM3	M6	high temperature metal screening	3m	1	US $2.74
4	FTARB02-E-M6HM4	M6	high temperature metal screening	4m	1	US $3.3
5	FTARB02-E-M6HM5	M6	high temperature metal screening	5m	1	US $4.19
6	FTARB02-E-M6HM7	M6	high temperature metal screening	7m	1	US $4.87
7	FTARB02-E-M6HM8	M6	high temperature metal screening	8m	1	US $5.43
8	FTARB02-E-M6HM10	M6	high temperature metal screening	10m	1	US $6.1
