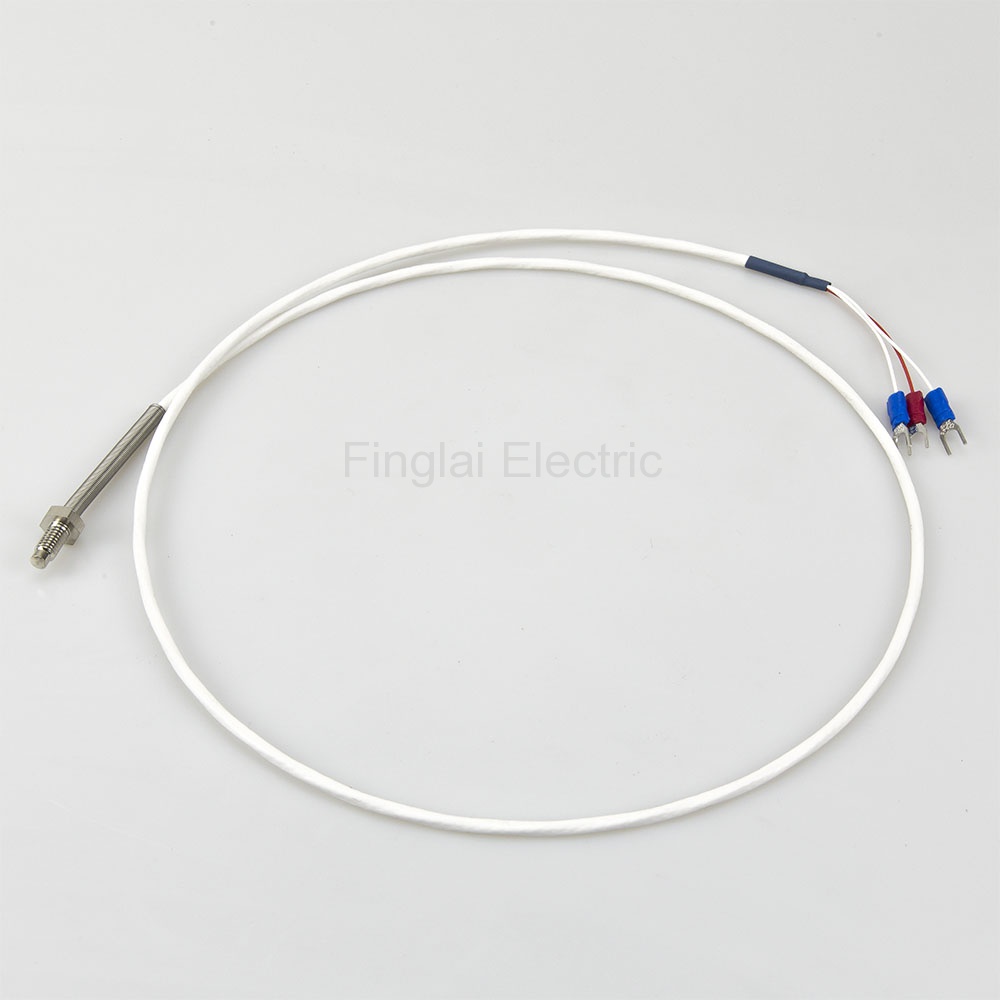

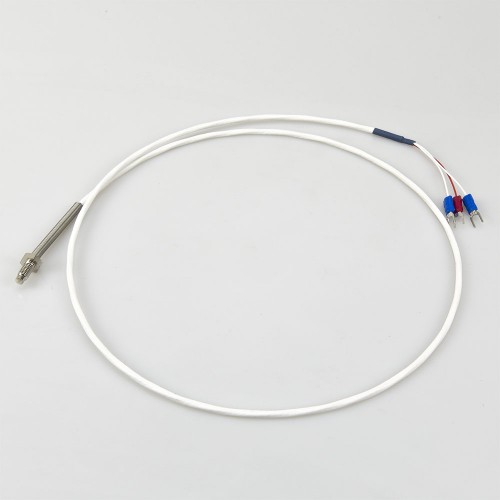

FTARB02 PT100 type 1/3B grade M6 bolt spring protected 1m high quality FEP cable RTD screw temperature sensor
Product features
Mouse over to zoom in
FTARB02 PT100 type 1/3B grade M6 bolt spring protected 1m high quality FEP cable RTD screw temperature sensor
Price: US $7.79 / piece
Model number: FTARB02-PT100-1/3BM6HP1
Product name: Temperature sensor
Accuracy:
2B grade: ±(0.6℃+1%|t|)US $4.64B grade: ±(0.3℃+0.5%|t|)
US $5.54A grade: ±(0.15℃+0.2%|t|)
US $5.771/3B grade: ±(0.1℃+0.17%|t|)
US $7.79
Deliver to:
Shipping:
US $6.07via
Estimated Delivery Time: 9-17 days
Total price:US $13.86
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARB02-K | K | Metal screening: 0-600 ℃; Silica gel: 0-200 ℃ | US $1.46 - 7.56/ pieceOrder (17) |
| FTARB02-E | E | 0-400℃ | US $1.46 - 6.1/ pieceOrder (8) |
| FTARB02-J | J | 0-400℃ | |
| FTARB02-PT100 | PT100 | Metal calbe: -50-450℃; FEP cable: -50-200℃ | Visiting... |
▇ FTARB02-PT100 temperature sensor model number legend
FTARB02-PT100
Parent Model Number
-1/3B
Accuracy
▇ General
| Model number | FTARB02 series |
| Mounting form | Bolt |
| Accuracy | K, E, J: ±0.4%t; PT100: 2B grade: ±(0.6℃+1%|t|); B grade: ±(0.3℃+0.5%|t|); A grade: ±(0.15℃+0.2%|t|); 1/3B grade: ±(0.1℃+0.17%|t|) Current: 1/3B grade: ±(0.1℃+0.17%|t|) |
| Work type | Thermocouple: Ungrounded |
| Thread size | M6. Can make M8, M10, M12 Current: M6 |
| Cable material | High Temperature resistance metal screening; High quality FEP silver plated copper |
| Cable length | Standard is 2m, customer can select 0.5, 1, 3, 4, 5 , 7, 8, 10m or customized Current: 1m |
| Thermal response time | Thermocouple: <0.5s; RTD: <12s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARB02-PT100 temperature sensor child models
| No | Model Number | Accuracy | Thread Size | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARB02-PT100-2BM6HM0.5 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 0.5m | 1 | US $3.97 | Order |
| 2 | FTARB02-PT100-2BM6HM1 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 1m | 1 | US $3.97 | Order |
| 3 | FTARB02-PT100-2BM6HM2 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 2m | 1 | US $4.64 | Order |
| 4 | FTARB02-PT100-2BM6HM3 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 3m | 1 | US $5.32 | Order |
| 5 | FTARB02-PT100-2BM6HM4 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 4m | 1 | US $5.99 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
