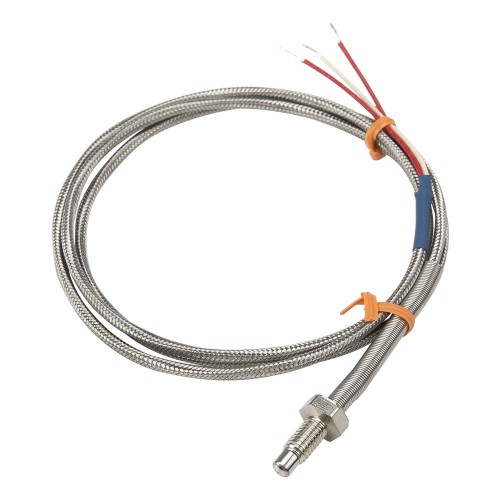

FTARB02 PT100 type 2B grade M6 bolt spring protected 1m red red white no terminal 5mm 304 stainless steel probe (not include thread length) high temperature metal screening cable RTD screw temperature sensor
Product features
Mouse over to zoom in
FTARB02 PT100 type 2B grade M6 bolt spring protected 1m red red white no terminal 5mm 304 stainless steel probe (not include thread length) high temperature metal screening cable RTD screw temperature sensor
Price: US $4.32 / piece
Model number: FTARB02-PT100-2BM6HM1WS
Product name: Temperature sensor
Accuracy:
2B grade: ±(0.6℃+1%|t|)US $4.32B grade: ±(0.3℃+0.5%|t|)A grade: ±(0.15℃+0.2%|t|)1/3B grade: ±(0.1℃+0.17%|t|)
Cable length:
0.5mUS $3.971m
US $3.971m sepcial
US $4.321.5m2m
US $4.643m
US $5.324m
US $5.995m
US $6.6610m
US $10.0312m
US $11.38
Deliver to:
Shipping:
US $21.75via
Estimated Delivery Time: 9-17 days
Total price:US $64.95
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARB02-K | K | Metal screening: 0-600 ℃; Silica gel: 0-200 ℃ | US $1.46 - 7.56/ pieceOrder (17) |
| FTARB02-E | E | 0-400℃ | US $1.46 - 6.1/ pieceOrder (8) |
| FTARB02-J | J | 0-400℃ | |
| FTARB02-PT100 | PT100 | Metal calbe: -50-450℃; FEP cable: -50-200℃ | Visiting... |
▇ FTARB02-PT100 temperature sensor model number legend
FTARB02-PT100
Parent Model Number
-2B
Accuracy
▇ General
| Model number | FTARB02 series |
| Mounting form | Bolt |
| Accuracy | K, E, J: ±0.4%t; PT100: 2B grade: ±(0.6℃+1%|t|); B grade: ±(0.3℃+0.5%|t|); A grade: ±(0.15℃+0.2%|t|); 1/3B grade: ±(0.1℃+0.17%|t|) Current: 2B grade: ±(0.6℃+1%|t|) |
| Work type | Thermocouple: Ungrounded |
| Thread size | M6. Can make M8, M10, M12 Current: M6 |
| Cable material | High Temperature resistance metal screening; High quality FEP silver plated copper |
| Cable length | Standard is 2m, customer can select 0.5, 1, 3, 4, 5 , 7, 8, 10m or customized Current: 1m sepcial |
| Thermal response time | Thermocouple: <0.5s; RTD: <12s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARB02-PT100 temperature sensor child models
| No | Model Number | Accuracy | Thread Size | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARB02-PT100-2BM6HM0.5 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 0.5m | 1 | US $3.97 | Order |
| 2 | FTARB02-PT100-2BM6HM1 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 1m | 1 | US $3.97 | Order |
| 3 | FTARB02-PT100-2BM6HM2 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 2m | 1 | US $4.64 | Order |
| 4 | FTARB02-PT100-2BM6HM3 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 3m | 1 | US $5.32 | Order |
| 5 | FTARB02-PT100-2BM6HM4 | 2B grade: ±(0.6℃+1%|t|) | M6 | High temperature metal screening | 4m | 1 | US $5.99 | Order Unfold |
Packaging Details
Product quantity: 10pcs
Package weight: 0.6kg
Package size: 14.5 x 8.5 x 10.5 cm
