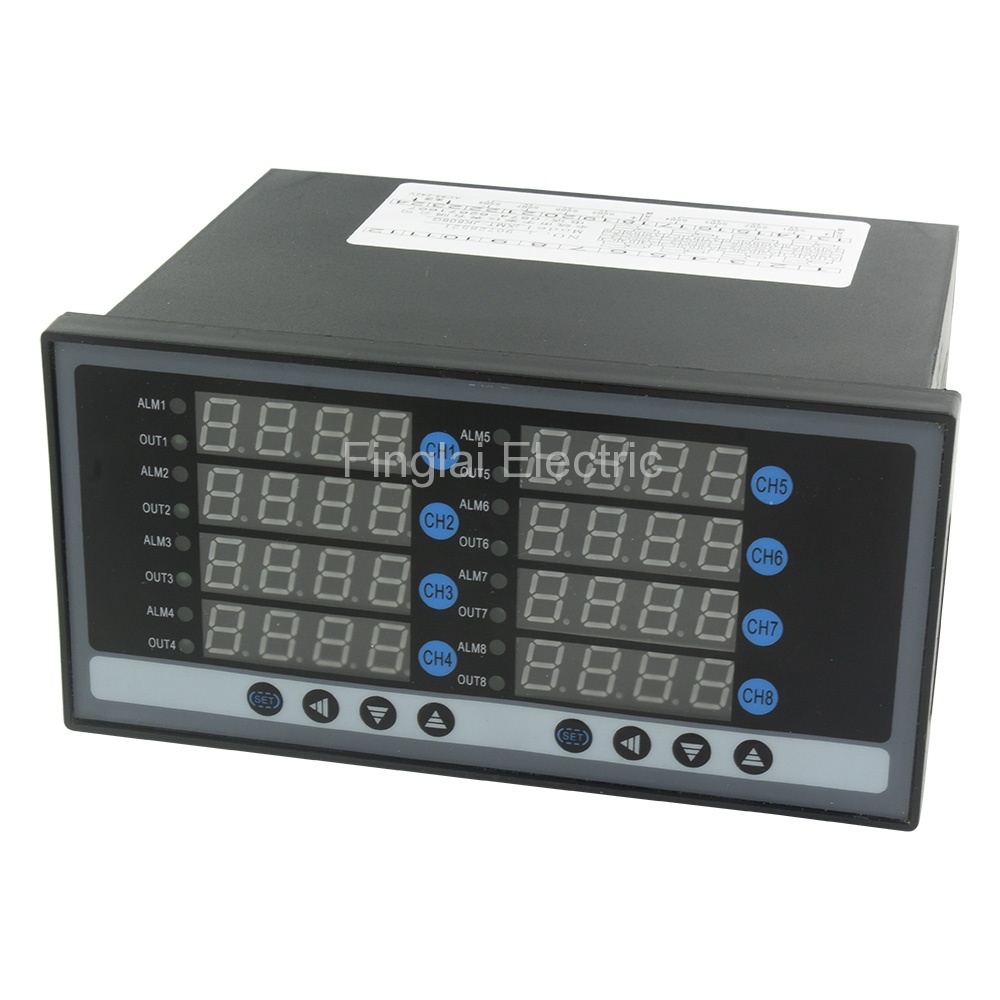

XMT-JK808G 160*80mm AC 85-242V 8 SSR main outputs and 8 thermocouple or RTD inputs digital temperature controller
Product features
Mouse over to zoom in
XMT-JK808G 160*80mm AC 85-242V 8 SSR main outputs and 8 thermocouple or RTD inputs digital temperature controller
Price: US $104.3 / piece
Model number: XMT-JK808G
Product name: Digital temperature controller
Input type and output:
Multiple inputs and relay outputUS $104.3Multiple inputs and SSR output
US $104.3Multiple inputs and relay RS485 output
US $117.78Multiple inputs and SSR RS485 output
US $117.78
Deliver to:
Shipping:
US $22.19via
Estimated Delivery Time: 9-15 days
Total price:US $126.49
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | External dimensions | Perforation dimensions | Online store: |
| XMT-JK8 | 160x80x125 mm | 152 10x76 10 mm | Visiting... |
▇ XMT-JK8 digital temperature controller model number legend
XMT-JK8
Parent Model Number
▇ General
| Model number | XMT-JK8 series |
| Accuracy | ±0.5%F.S±1℃ |
| Supply voltage | 85-242Vac,50/60 Hz |
| Input type | Thermocouple: K, J, E RTD: Pt100, Cu50 |
| Output type | Electromagnetic relay, SSR, SCR, RS485 (not in one product, need to select) |
| Power consumption | Less than 5W |
| Control method | 8 PIDs, or ON/OFF |
| Setting method | Touch switch |
| Indication method | 8-segment 4-digital display and LED indication |
| Alarms | 1. Alarm quantity: default is no alarm, if 1pcs, need to be customized 2. Alarm form: ALP 0: no alarm 1: upper limit alarm 2: lower limit alarm 3: positive deviation alarm 4: negative deviation alarm 5: outside the interval alarm 6: inside the interval alarm |
| Sampling period | 0.5s |
| Control period | 2-120s (can adjust) |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 85% RH max, non-condensing |
| Alias name | XMT-JK8 series four ways four PIDs temperature controller, intelligent temperature controller |
▇ Output type and description
| Electromagnetic relay | Contact rating: 5A at 220Vac (Resistive load) |
| Solid state relay | Contact rating can be selected, order separately (Single phase 40A, Three phase 40A) |
| Triac | Zero crossing pulse, Amplitude>3V, width>50us, the instrument's supply voltage and load must be same phase current |
▇ Auxiliary function
| Communication | RS485 interface (Standard Modbus RTU protocol, not include PC software, provide protocol, need you write it yourself) |
▇ Input type and measuring range
| K | -30.0-1300 ℃ (Bolt, Press spring, Ring, M12 probe, M8 probe, Flexible probe, Armor high temperature resistant, Customized thread probe) |
| J | -30.0-900.0 ℃ (Bolt, Press spring, Press spring without threaded sleeve, Ring, Flexible probe |
| E | -30-700.0 ℃ (Bolt, Press spring, Ring, Probe, Customized thread probe) |
| Pt100 | -199.9-600.0 ℃ (Bolt, Press spring, Ring, Probe, Polish rod, Polish rod waterproof, Polish rod waterproof anticorrosive, Flexible probe, Customized thread probe) |
| Cu50 | -50.0-150.0 ℃ (Probe), Polish rod waterproof) |
▇ XMT-JK8 digital temperature controller child models
| No | Model Number | Alarm Quantity | Input Type And Output | MOQ | Unit Price | Related Product |
| 1 | XMT-JK808 | 0 alarm | Multiple inputs and relay output | 1 | US $104.3 | Order |
| 2 | XMT-JK808G | 0 alarm | Multiple inputs and SSR output | 1 | US $104.3 | Visiting... |
| 3 | XMT-JK808K | 0 alarm | Multiple inputs and relay RS485 output | 1 | US $117.78 | Order |
| 4 | XMT-JK808GK | 0 alarm | Multiple inputs and SSR RS485 output | 1 | US $117.78 | Order |
| 5 | XMT-JK818 | 1 alarm | Multiple inputs and relay output | 1 | US $115.53 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 1kg
Package size: 25 x 25 x 12 cm
