FTARP08 PT100 type B grade 3*100mm 321 stainless steel flexible probe 1m metal screening cable sheathed RTD temperature sensor

Product features

Mouse over to zoom in

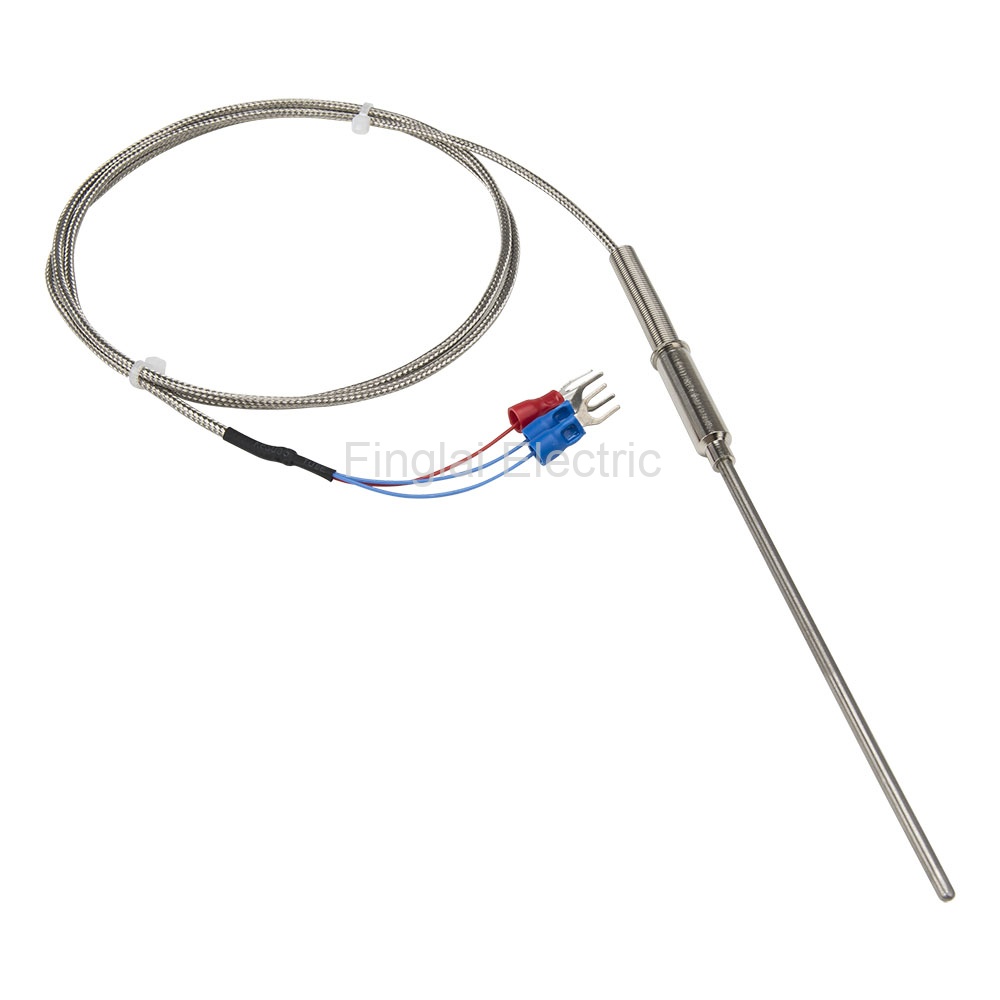

FTARP08 PT100 type B grade 3*100mm 321 stainless steel flexible probe 1m metal screening cable sheathed RTD temperature sensor

Price: US $6.44 / piece

Model number: FTARP08-PT100-BD3L100M1

Product name: Temperature sensor

Accuracy:

A grade: ±(0.15℃+0.2%|t|)
US $7.56B grade: ±(0.3℃+0.5%|t|)
US $6.44

Probe material:

321 stainless steel
US $6.44316L stainless steel 321 stainless steel with fixed M6*1

Probe diameter:

3mm
US $6.444mm
US $6.44 5mm
US $6.44 6mm
US $6.44

Probe length:

100mm
US $6.44120mm
US $6.89 135mm 150mm
US $6.89 200mm
US $6.89 300mm
US $7.34 400mm
US $7.79 500mm
US $8.24 600mm
US $8.24 800mm 50mm 20mm

Cabel material:

Metal screening
US $6.44FEP silver plated copper
US $6.44 Silica gel cable

Cable length (3 wires default):

0.15m 0.15m no terminal 0.25m 0.25m 4 wires1m
US $6.441.5m 2m
US $7.11 2m 4 wires 3m
US $7.79 4m 5m 7m 8m

Deliver to:

Shipping:

US $6.39via

Estimated Delivery Time: 9-17 days

Quantity:

Total price:US $12.83

Buy Now

Add to Cart

Inquire

Payment:

PayPal/Credit CardWESTERN UNIONBANK TRANSFER

Product description

▇ Model number and parameters

Model number	Type	Measuring range	Online store:
FTARP08-K	K	0-600 ℃	US $2.47 - 44.02/ pieceOrder (84)
FTARP08-E	E	0-400 ℃	US $3.74/ pieceOrder (1)
FTARP08-J	J	0-400 ℃	US $5.32 - 9.57/ pieceOrder (31)
FTARP08-T	T	-200-350 ℃	US $6.07 - 7.24/ pieceOrder (4)
FTARP08-N	N	0-600 ℃	US $6.07/ pieceOrder (1)
FTARP08-PT100	PT100	Metal, FEP cable: -50-200℃ Silica gel cable: -50-180℃	Visiting...
FTARP08-PT1000	PT1000	Metal, FEP cable: -50-200℃ Silica gel cable: -50-180℃	US $8.24 - 9.58/ pieceOrder (5)

▇ FTARP08-PT100 temperature sensor model number legend

FTARP08-PT100

Parent Model Number

-B

Accuracy

-A: A grade: ±(0.15℃+0.2%|t|)

-B: B grade: ±(0.3℃+0.5%|t|)

Probe material

D: 321 stainless steel

316LD: 316L stainless steel

M6P1D: 321 stainless steel with fixed M6*1

Probe diameter

L100

Probe length

L100: 100mm

L120: 120mm

L135: 135mm

L150: 150mm

L200: 200mm

L300: 300mm

L400: 400mm

L500: 500mm

L600: 600mm

L800: 800mm

L50: 50mm

L20: 20mm

Cabel material

M: Metal screening

P: FEP silver plated copper

S: Silica gel cable

Cable length (3 wires default)

0.15: 0.15m

0.15NT: 0.15m no terminal

0.25: 0.25m

0.25W4: 0.25m 4 wires

1.5: 1.5m

2W4: 2m 4 wires

▇ General

Model number	FTARP08 series
Mounting form	Flexible probe (Can be straight or bent, sheathed solid tube)
Accuracy	K, E, J: ±0.4%\|t\|; PT100 A grade: ±(0.15℃+0.2%\|t\|); PT100 B grade: ±(0.3℃+0.5%\|t\|) Current: B grade: ±(0.3℃+0.5%\|t\|)
Work type	Thermocouple: Ungrounded excpet 0.5mm diameter, can't assure 0.5mm diameter ungrounded
Thread size	Can add fixed screw thread, like M6*1...
Probe material	Standard is 321 stainless steel, can make to the following: High temperature resistant: 2520, 3030, 3039 Anti-corrosion: 316L High temperature resistant and anti-corrosion: GH3039
Probe diameter	0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10mm, more bigger diameter more higher temperature resistant more response time and more operation life Current: 3mm
Probe length	10-30000mm. Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip. If with fixed screw, the length don't include screw thread length. Current: 100mm
Cable material	Metal screening; FEP silver plated copper, Silica gel; 240.6mm blue compensated fibreglass braided
Cable length	Standard is K 1.5m, PT100 1m, can make 0.1-100m
Matched accessory	M12 mounting nut, M16 mounting nut
Insulating resistance	20MΩ min
Technical article	PT100 Platinum RTD temperature resistance list - 0.00385 coefficient

▇ Thermal response time (Unit: s)

Probe diameter	Ungrounded thermocouple	Grounded thermocouple	RTD
Ф2	0.5	0.4	---
Ф3	1.2	0.6	3
Ф4	2.5	0.8	5
Ф5	4.5	1.2	8
Ф6	6	2	12
Ф8	8	4	15

▇ FTARP08-PT100 temperature sensor child models

No	Model Number	Accuracy	Probe Material	Probe Diameter	Probe Length	Cabel Material	Cable Length (3 Wires Default)	MOQ	Unit Price	Related Product
1	FTARP08-PT100-AD3L100M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	100mm	Metal screening	1m	1	US $7.56	Order
2	FTARP08-PT100-AD3L100M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	100mm	Metal screening	2m	1	US $8.24	Order
3	FTARP08-PT100-AD3L100M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	100mm	Metal screening	3m	1	US $8.91	Order
4	FTARP08-PT100-AD3L100M5	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	100mm	Metal screening	5m	1	US $10.26	Order
5	FTARP08-PT100-AD3L100P1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	100mm	FEP silver plated copper	1m	1	US $7.56	Order Unfold
6	FTARP08-PT100-AD3L100P2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	100mm	FEP silver plated copper	2m	1	US $8.24	Order
7	FTARP08-PT100-AD3L120M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	120mm	Metal screening	1m	1	US $8.01	Order
8	FTARP08-PT100-AD3L150M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	150mm	Metal screening	1m	1	US $8.01	Order
9	FTARP08-PT100-AD3L200M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	200mm	Metal screening	1m	1	US $8.01	Order
10	FTARP08-PT100-AD3L200M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	200mm	Metal screening	3m	1	US $9.36	Order
11	FTARP08-PT100-AD3L200P1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	200mm	FEP silver plated copper	1m	1	US $8.01	Order
12	FTARP08-PT100-AD3L300M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	300mm	Metal screening	1m	1	US $8.46	Order
13	FTARP08-PT100-AD3L300M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	300mm	Metal screening	3m	1	US $9.81	Order
14	FTARP08-PT100-AD3L400M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	400mm	Metal screening	1m	1	US $8.91	Order
15	FTARP08-PT100-AD3L500M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	500mm	Metal screening	1m	1	US $9.36	Order
16	FTARP08-PT100-AD3L500M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	500mm	Metal screening	2m	1	US $10.03	Order
17	FTARP08-PT100-AD3L600M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	600mm	Metal screening	1m	1	US $9.36	Order
18	FTARP08-PT100-AD3L600M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	600mm	Metal screening	3m	1	US $10.71	Order
19	FTARP08-PT100-AD3L50M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	3mm	50mm	Metal screening	2m	1	US $8.24	Order
20	FTARP08-PT100-AD4L100M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	100mm	Metal screening	1m	1	US $7.56	Order
21	FTARP08-PT100-AD4L100M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	100mm	Metal screening	2m	1	US $8.24	Order
22	FTARP08-PT100-AD4L100M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	100mm	Metal screening	3m	1	US $8.91	Order
23	FTARP08-PT100-AD4L100M7	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	100mm	Metal screening	7m	1	US $11.61	Order
24	FTARP08-PT100-AD4L100P1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	100mm	FEP silver plated copper	1m	1	US $7.56	Order
25	FTARP08-PT100-AD4L100P2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	100mm	FEP silver plated copper	2m	1	US $8.24	Order
26	FTARP08-PT100-AD4L150M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	150mm	Metal screening	1m	1	US $8.01	Order
27	FTARP08-PT100-AD4L200M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	200mm	Metal screening	1m	1	US $8.01	Order
28	FTARP08-PT100-AD4L200M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	200mm	Metal screening	3m	1	US $9.36	Order
29	FTARP08-PT100-AD4L300M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	300mm	Metal screening	1m	1	US $8.46	Order
30	FTARP08-PT100-AD4L300M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	300mm	Metal screening	3m	1	US $9.81	Order
31	FTARP08-PT100-AD4L300P2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	300mm	FEP silver plated copper	2m	1	US $6.15	Order
32	FTARP08-PT100-AD4L400M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	400mm	Metal screening	1m	1	US $8.91	Order
33	FTARP08-PT100-AD4L500M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	500mm	Metal screening	1m	1	US $9.36	Order
34	FTARP08-PT100-AD4L50M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	4mm	50mm	Metal screening	2m	1	US $8.24	Order
35	FTARP08-PT100-AD5L100M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	100mm	Metal screening	1m	1	US $7.56	Order
36	FTARP08-PT100-AD5L100M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	100mm	Metal screening	2m	1	US $8.24	Order
37	FTARP08-PT100-AD5L100M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	100mm	Metal screening	3m	1	US $8.91	Order
38	FTARP08-PT100-AD5L100P1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	100mm	FEP silver plated copper	1m	1	US $7.56	Order
39	FTARP08-PT100-AD5L100P2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	100mm	FEP silver plated copper	2m	1	US $8.24	Order
40	FTARP08-PT100-AD5L150M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	150mm	Metal screening	1m	1	US $8.01	Order
41	FTARP08-PT100-AD5L200M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	200mm	Metal screening	1m	1	US $8.01	Order
42	FTARP08-PT100-AD5L200M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	200mm	Metal screening	3m	1	US $9.36	Order
43	FTARP08-PT100-AD5L300M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	300mm	Metal screening	1m	1	US $8.46	Order
44	FTARP08-PT100-AD5L300M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	300mm	Metal screening	3m	1	US $9.81	Order
45	FTARP08-PT100-AD5L300M4	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	300mm	Metal screening	4m	1	US $6.15	Order
46	FTARP08-PT100-AD5L400M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	400mm	Metal screening	1m	1	US $8.91	Order
47	FTARP08-PT100-AD5L500M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	500mm	Metal screening	1m	1	US $9.36	Order
48	FTARP08-PT100-AD5L50M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	5mm	50mm	Metal screening	2m	1	US $8.24	Order
49	FTARP08-PT100-AD6L100M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	100mm	Metal screening	1m	1	US $7.56	Order
50	FTARP08-PT100-AD6L100M2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	100mm	Metal screening	2m	1	US $8.24	Order
51	FTARP08-PT100-AD6L100M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	100mm	Metal screening	3m	1	US $8.91	Order
52	FTARP08-PT100-AD6L100P1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	100mm	FEP silver plated copper	1m	1	US $7.56	Order
53	FTARP08-PT100-AD6L100P2	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	100mm	FEP silver plated copper	2m	1	US $8.24	Order
54	FTARP08-PT100-AD6L150M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	150mm	Metal screening	1m	1	US $8.01	Order
55	FTARP08-PT100-AD6L200M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	200mm	Metal screening	1m	1	US $8.01	Order
56	FTARP08-PT100-AD6L200M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	200mm	Metal screening	3m	1	US $9.36	Order
57	FTARP08-PT100-AD6L300M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	300mm	Metal screening	1m	1	US $8.46	Order
58	FTARP08-PT100-AD6L300M3	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	300mm	Metal screening	3m	1	US $9.81	Order
59	FTARP08-PT100-AD6L300S1.5	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	300mm	Silica gel cable	1.5m	1	US $6.15	Order
60	FTARP08-PT100-AD6L400M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	400mm	Metal screening	1m	1	US $8.91	Order
61	FTARP08-PT100-AD6L400M5	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	400mm	Metal screening	5m	1	US $11.6	Order
62	FTARP08-PT100-AD6L500M1	A grade: ±(0.15℃+0.2%\|t\|)	321 stainless steel	6mm	500mm	Metal screening	1m	1	US $9.36	Order
63	FTARP08-PT100-A316LD3L100M2	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	3mm	100mm	Metal screening	2m	1	US $8.91	Order
64	FTARP08-PT100-A316LD3L100P2	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	3mm	100mm	FEP silver plated copper	2m	1	US $8.91	Order
65	FTARP08-PT100-A316LD3L200M0.15	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	3mm	200mm	Metal screening	0.15m	1	US $8.69	Order
66	FTARP08-PT100-A316LD3L200M0.15NT	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	3mm	200mm	Metal screening	0.15m no terminal	1	US $8.69	Order
67	FTARP08-PT100-A316LD3L200M0.25	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	3mm	200mm	Metal screening	0.25m	1	US $8.69	Order
68	FTARP08-PT100-A316LD3L200P3	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	3mm	200mm	FEP silver plated copper	3m	1	US $10.03	Order
69	FTARP08-PT100-A316LD3L800M8	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	3mm	800mm	Metal screening	8m	1	US $11.15	Order
70	FTARP08-PT100-A316LD4L200P3	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	4mm	200mm	FEP silver plated copper	3m	1	US $10.03	Order
71	FTARP08-PT100-A316LD4L300P2W4	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	4mm	300mm	FEP silver plated copper	2m 4 wires	1	US $8.69	Order
72	FTARP08-PT100-A316LD4L500P2	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	4mm	500mm	FEP silver plated copper	2m	1	US $8.69	Order
73	FTARP08-PT100-A316LD4L500P2W4	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	4mm	500mm	FEP silver plated copper	2m 4 wires	1	US $8.69	Order
74	FTARP08-PT100-A316LD5L200P3	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	5mm	200mm	FEP silver plated copper	3m	1	US $10.03	Order
75	FTARP08-PT100-A316LD6L120P0.25W4	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	6mm	120mm	FEP silver plated copper	0.25m 4 wires	1	US $8.69	Order
76	FTARP08-PT100-A316LD6L135P0.25W4	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	6mm	135mm	FEP silver plated copper	0.25m 4 wires	1	US $8.69	Order
77	FTARP08-PT100-A316LD6L200P3	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	6mm	200mm	FEP silver plated copper	3m	1	US $10.03	Order
78	FTARP08-PT100-A316LD6L300P2W4	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	6mm	300mm	FEP silver plated copper	2m 4 wires	1	US $8.69	Order
79	FTARP08-PT100-A316LD6L500P2W4	A grade: ±(0.15℃+0.2%\|t\|)	316L stainless steel	6mm	500mm	FEP silver plated copper	2m 4 wires	1	US $8.69	Order
80	FTARP08-PT100-BD3L100M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	100mm	Metal screening	1m	1	US $6.44	Visiting...
81	FTARP08-PT100-BD3L100M2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	100mm	Metal screening	2m	1	US $7.11	Order
82	FTARP08-PT100-BD3L100M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	100mm	Metal screening	3m	1	US $7.79	Order
83	FTARP08-PT100-BD3L100P1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	100mm	FEP silver plated copper	1m	1	US $6.44	Order
84	FTARP08-PT100-BD3L100P2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	100mm	FEP silver plated copper	2m	1	US $7.11	Order
85	FTARP08-PT100-BD3L120M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	120mm	Metal screening	1m	1	US $6.89	Order
86	FTARP08-PT100-BD3L150M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	150mm	Metal screening	1m	1	US $6.89	Order
87	FTARP08-PT100-BD3L200M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	200mm	Metal screening	1m	1	US $6.89	Order
88	FTARP08-PT100-BD3L200M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	200mm	Metal screening	3m	1	US $7.79	Order
89	FTARP08-PT100-BD3L300M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	300mm	Metal screening	1m	1	US $7.34	Order
90	FTARP08-PT100-BD3L300M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	300mm	Metal screening	3m	1	US $8.69	Order
91	FTARP08-PT100-BD3L400M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	400mm	Metal screening	1m	1	US $7.79	Order
92	FTARP08-PT100-BD3L500M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	500mm	Metal screening	1m	1	US $8.24	Order
93	FTARP08-PT100-BD3L600M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	600mm	Metal screening	1m	1	US $8.24	Order
94	FTARP08-PT100-BD3L600M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	600mm	Metal screening	3m	1	US $9.58	Order
95	FTARP08-PT100-BD3L50M2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	3mm	50mm	Metal screening	2m	1	US $7.11	Order
96	FTARP08-PT100-BD4L100M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	100mm	Metal screening	1m	1	US $6.44	Order
97	FTARP08-PT100-BD4L100M2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	100mm	Metal screening	2m	1	US $7.11	Order
98	FTARP08-PT100-BD4L100M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	100mm	Metal screening	3m	1	US $7.79	Order
99	FTARP08-PT100-BD4L100P1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	100mm	FEP silver plated copper	1m	1	US $6.44	Order
100	FTARP08-PT100-BD4L100P2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	100mm	FEP silver plated copper	2m	1	US $7.11	Order
101	FTARP08-PT100-BD4L150M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	150mm	Metal screening	1m	1	US $6.89	Order
102	FTARP08-PT100-BD4L200M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	200mm	Metal screening	1m	1	US $6.89	Order
103	FTARP08-PT100-BD4L200M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	200mm	Metal screening	3m	1	US $7.79	Order
104	FTARP08-PT100-BD4L300M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	300mm	Metal screening	1m	1	US $7.34	Order
105	FTARP08-PT100-BD4L300M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	300mm	Metal screening	3m	1	US $8.69	Order
106	FTARP08-PT100-BD4L400M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	400mm	Metal screening	1m	1	US $7.79	Order
107	FTARP08-PT100-BD4L500M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	500mm	Metal screening	1m	1	US $8.24	Order
108	FTARP08-PT100-BD4L50M2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	4mm	50mm	Metal screening	2m	1	US $7.11	Order
109	FTARP08-PT100-BD5L100M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	100mm	Metal screening	1m	1	US $6.44	Order
110	FTARP08-PT100-BD5L100M2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	100mm	Metal screening	2m	1	US $7.11	Order
111	FTARP08-PT100-BD5L100M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	100mm	Metal screening	3m	1	US $7.79	Order
112	FTARP08-PT100-BD5L100P2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	100mm	FEP silver plated copper	2m	1	US $7.11	Order
113	FTARP08-PT100-BD5L150M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	150mm	Metal screening	1m	1	US $6.89	Order
114	FTARP08-PT100-BD5L200M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	200mm	Metal screening	1m	1	US $6.89	Order
115	FTARP08-PT100-BD5L200M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	200mm	Metal screening	3m	1	US $7.79	Order
116	FTARP08-PT100-BD5L300M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	300mm	Metal screening	1m	1	US $7.34	Order
117	FTARP08-PT100-BD5L300M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	300mm	Metal screening	3m	1	US $8.69	Order
118	FTARP08-PT100-BD5L400M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	400mm	Metal screening	1m	1	US $7.79	Order
119	FTARP08-PT100-BD5L500M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	500mm	Metal screening	1m	1	US $8.24	Order
120	FTARP08-PT100-BD5L50M2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	5mm	50mm	Metal screening	2m	1	US $7.11	Order
121	FTARP08-PT100-BD6L100M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	100mm	Metal screening	1m	1	US $6.44	Order
122	FTARP08-PT100-BD6L100M2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	100mm	Metal screening	2m	1	US $7.11	Order
123	FTARP08-PT100-BD6L100M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	100mm	Metal screening	3m	1	US $7.79	Order
124	FTARP08-PT100-BD6L100P1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	100mm	FEP silver plated copper	1m	1	US $6.44	Order
125	FTARP08-PT100-BD6L100P2	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	100mm	FEP silver plated copper	2m	1	US $7.11	Order
126	FTARP08-PT100-BD6L150M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	150mm	Metal screening	1m	1	US $6.89	Order
127	FTARP08-PT100-BD6L200M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	200mm	Metal screening	1m	1	US $6.89	Order
128	FTARP08-PT100-BD6L200M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	200mm	Metal screening	3m	1	US $7.79	Order
129	FTARP08-PT100-BD6L300M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	300mm	Metal screening	1m	1	US $7.34	Order
130	FTARP08-PT100-BD6L300M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	300mm	Metal screening	3m	1	US $8.69	Order
131	FTARP08-PT100-BD6L400M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	400mm	Metal screening	1m	1	US $7.79	Order
132	FTARP08-PT100-BD6L500M1	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel	6mm	500mm	Metal screening	1m	1	US $8.24	Order
133	FTARP08-PT100-B316LD6L100P1.5	B grade: ±(0.3℃+0.5%\|t\|)	316L stainless steel	6mm	100mm	FEP silver plated copper	1.5m	1	US $7.79	Order
134	FTARP08-PT100-BM6P1D3L20M3	B grade: ±(0.3℃+0.5%\|t\|)	321 stainless steel with fixed M6*1	3mm	20mm	Metal screening	3m	1	US $6.15	Order

Packaging Details

Product quantity: 1pc

Package weight: 0.07kg

Package size: 10 x 10 x 3 cm

◄ FTARP08-PT100-A316LD6L500P2W4 PT100 type flexible probe sheathed RTD temperature sensor

FTARP08-PT100-BD3L100M2 PT100 type flexible probe sheathed RTD temperature sensor ►
