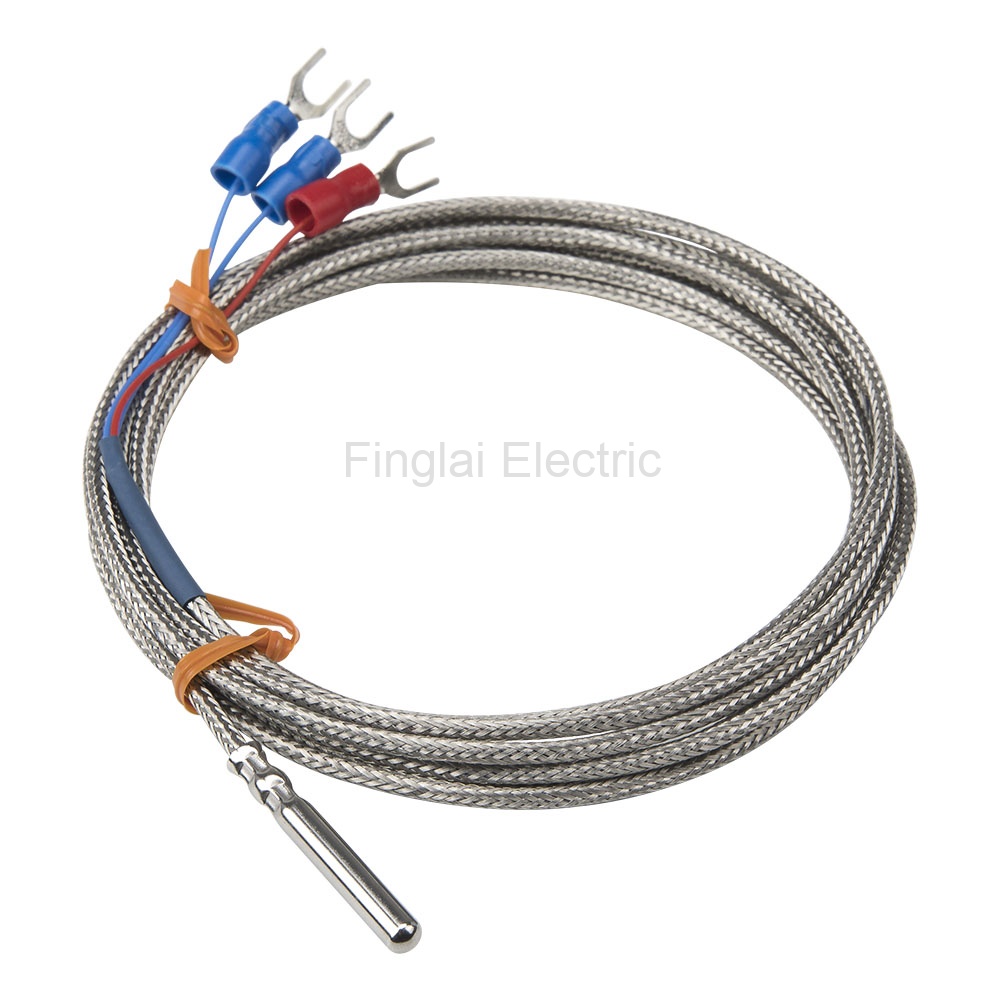

FTARP02 PT100 type B grade 4*30mm polish rod probe 2m usual metal screening cable RTD temperature sensor

Product features
Price: US $4.76 / piece
Model number: FTARP02-PT100-BD4L30UM2
Product name: Temperature sensor
Probe diameter:
4mm
US $4.76
5mm
Probe length:
30mm
US $4.76
40mm50mm60mm
Cabel material:
Usual metal screening (-50-200℃)
US $4.76
High temperature metal screening (-50-450℃)
US $4.76
Deliver to:
Shipping:
US $5.95via
Estimated Delivery Time: 12-24 days
quantity:



Total price:US $10.71
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP02-KK0-600℃US $0.94 - 5.32/ pieceOrder (17)
FTARP02-EE0-400℃US $0.94 - 5.32/ pieceOrder (13)
FTARP02-JJMetal screening: 0-400℃; Silica gel: 0-200 ℃US $3.52 - 5.53/ pieceOrder (5)
FTARP02-PT100PT100-50-200℃; -50-450℃Visiting...
FTARP02-PT100 temperature sensor model number legend
FTARP02-PT100


Parent Model Number
-B


Accuracy


-A: A grade: ±(0.15℃+0.2%|t|)


-B: B grade: ±(0.3℃+0.5%|t|)


-2B: 2B grade: ±(0.6℃+1%|t|)
D4


Probe diameter


D4: 4mm


D5: 5mm
L30


Probe length


L30: 30mm


L40: 40mm


L50: 50mm


L60: 60mm
UM


Cabel material


UM: Usual metal screening (-50-200℃)


HM: High temperature metal screening (-50-450℃)
2


Cable length


1: 1m


2: 2m


3: 3m


4: 4m


5: 5m


6: 6m


7: 7m


8: 8m


0.5: 0.5m
General
Model number FTARP02 series
Mounting form Polish rod probe
Accuracy K,E,J: ±0.75%t; PT100: A grade: ±(0.15℃+0.2%|t|); B grade: ±(0.3℃+0.5%|t|); 2B grade: ±(0.6℃+1%|t|)
Current: B grade: ±(0.3℃+0.5%|t|)
Probe material Stainless steel
Probe diameter 4, 5, 6mm
Current: 4mm
Probe length 30, 40, 50, 60, 100mm
Current: 30mm
Cable material Usual metal screening (-50-200℃); High density single core metal screening, high density multi cores metal screening (-50-450℃)
Cable length Standard is 2m, customer can select 1, 3 ,5 or specify the cable length
Current: 2m
Thermal response time Thermocouple: <6s; RTD: <12s
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARP02-PT100 temperature sensor child models
No Model Number Accuracy Probe Diameter Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP02-PT100-AD4L30UM1 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm Usual metal screening (-50-200℃) 1m 1 US $4.54 Order
2 FTARP02-PT100-AD4L30UM2 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm Usual metal screening (-50-200℃) 2m 1 US $4.99 Order
3 FTARP02-PT100-AD4L30UM3 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm Usual metal screening (-50-200℃) 3m 1 US $5.77 Order
4 FTARP02-PT100-AD4L30UM5 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm Usual metal screening (-50-200℃) 5m 1 US $7.11 Order
5 FTARP02-PT100-AD4L30UM7 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm Usual metal screening (-50-200℃) 7m 1 US $8.01 Order Unfold
6 FTARP02-PT100-AD4L30HM1 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 1m 1 US $4.54 Order
7 FTARP02-PT100-AD4L30HM2 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 2m 1 US $4.99 Order
8 FTARP02-PT100-AD4L30HM3 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 3m 1 US $5.99 Order
9 FTARP02-PT100-AD4L30HM4 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 4m 1 US $6.66 Order
10 FTARP02-PT100-AD4L30HM5 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 5m 1 US $7.34 Order
11 FTARP02-PT100-AD4L30HM6 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 6m 1 US $8.01 Order
12 FTARP02-PT100-AD4L30HM8 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 8m 1 US $9.36 Order
13 FTARP02-PT100-AD5L50UM1 A grade: ±(0.15℃+0.2%|t|) 5mm 50mm Usual metal screening (-50-200℃) 1m 1 US $4.54 Order
14 FTARP02-PT100-AD5L50UM2 A grade: ±(0.15℃+0.2%|t|) 5mm 50mm Usual metal screening (-50-200℃) 2m 1 US $4.99 Order
15 FTARP02-PT100-AD5L50UM3 A grade: ±(0.15℃+0.2%|t|) 5mm 50mm Usual metal screening (-50-200℃) 3m 1 US $5.77 Order
16 FTARP02-PT100-AD5L50UM5 A grade: ±(0.15℃+0.2%|t|) 5mm 50mm Usual metal screening (-50-200℃) 5m 1 US $6.66 Order
17 FTARP02-PT100-AD5L50UM7 A grade: ±(0.15℃+0.2%|t|) 5mm 50mm Usual metal screening (-50-200℃) 7m 1 US $8.01 Order
18 FTARP02-PT100-AD5L60UM7 A grade: ±(0.15℃+0.2%|t|) 5mm 60mm Usual metal screening (-50-200℃) 7m 1 US $8.01 Order
19 FTARP02-PT100-BD4L30UM1 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm Usual metal screening (-50-200℃) 1m 1 US $4.31 Order
20 FTARP02-PT100-BD4L30UM2 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm Usual metal screening (-50-200℃) 2m 1 US $4.76 Visiting...
21 FTARP02-PT100-BD4L30UM3 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm Usual metal screening (-50-200℃) 3m 1 US $5.54 Order
22 FTARP02-PT100-BD4L30UM5 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm Usual metal screening (-50-200℃) 5m 1 US $6.89 Order
23 FTARP02-PT100-BD4L30UM7 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm Usual metal screening (-50-200℃) 7m 1 US $7.79 Order
24 FTARP02-PT100-BD4L30HM1 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 1m 1 US $4.09 Order
25 FTARP02-PT100-BD4L30HM2 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 2m 1 US $4.76 Order
26 FTARP02-PT100-BD4L30HM3 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 3m 1 US $5.77 Order
27 FTARP02-PT100-BD4L30HM4 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 4m 1 US $6.44 Order
28 FTARP02-PT100-BD4L30HM5 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 5m 1 US $7.11 Order
29 FTARP02-PT100-BD4L30HM6 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 6m 1 US $7.79 Order
30 FTARP02-PT100-BD4L30HM8 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm High temperature metal screening (-50-450℃) 8m 1 US $9.13 Order
31 FTARP02-PT100-BD5L40UM0.5 B grade: ±(0.3℃+0.5%|t|) 5mm 40mm Usual metal screening (-50-200℃) 0.5m 1 US $4.19 Order
32 FTARP02-PT100-BD5L50UM1 B grade: ±(0.3℃+0.5%|t|) 5mm 50mm Usual metal screening (-50-200℃) 1m 1 US $4.31 Order
33 FTARP02-PT100-BD5L50UM2 B grade: ±(0.3℃+0.5%|t|) 5mm 50mm Usual metal screening (-50-200℃) 2m 1 US $4.76 Order
34 FTARP02-PT100-BD5L50UM3 B grade: ±(0.3℃+0.5%|t|) 5mm 50mm Usual metal screening (-50-200℃) 3m 1 US $5.54 Order
35 FTARP02-PT100-BD5L50UM5 B grade: ±(0.3℃+0.5%|t|) 5mm 50mm Usual metal screening (-50-200℃) 5m 1 US $6.89 Order
36 FTARP02-PT100-BD5L50UM7 B grade: ±(0.3℃+0.5%|t|) 5mm 50mm Usual metal screening (-50-200℃) 7m 1 US $7.79 Order
37 FTARP02-PT100-2BD4L30UM1 2B grade: ±(0.6℃+1%|t|) 4mm 30mm Usual metal screening (-50-200℃) 1m 1 US $3.64 Order
38 FTARP02-PT100-2BD4L30UM2 2B grade: ±(0.6℃+1%|t|) 4mm 30mm Usual metal screening (-50-200℃) 2m 1 US $4.09 Order
39 FTARP02-PT100-2BD4L30UM3 2B grade: ±(0.6℃+1%|t|) 4mm 30mm Usual metal screening (-50-200℃) 3m 1 US $4.87 Order
40 FTARP02-PT100-2BD4L30UM5 2B grade: ±(0.6℃+1%|t|) 4mm 30mm Usual metal screening (-50-200℃) 5m 1 US $6.21 Order
41 FTARP02-PT100-2BD4L30UM7 2B grade: ±(0.6℃+1%|t|) 4mm 30mm Usual metal screening (-50-200℃) 7m 1 US $7.11 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.09kg
Package size: 10 x 10 x 4 cm
