XMT-JK1201G-E 160*80mm AC 85-242V 12 SSR main outputs and 12 E thermocouple inputs digital temperature controller

Product features
Mouse over to zoom in

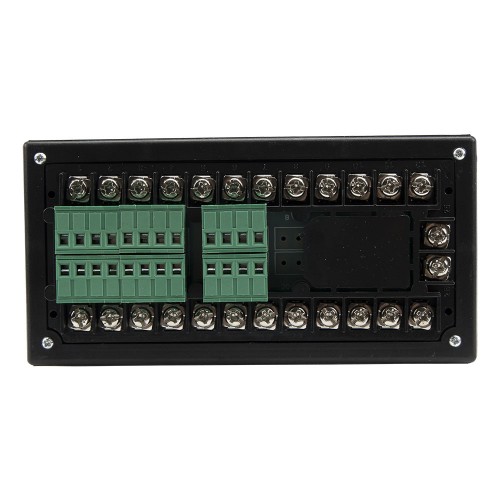

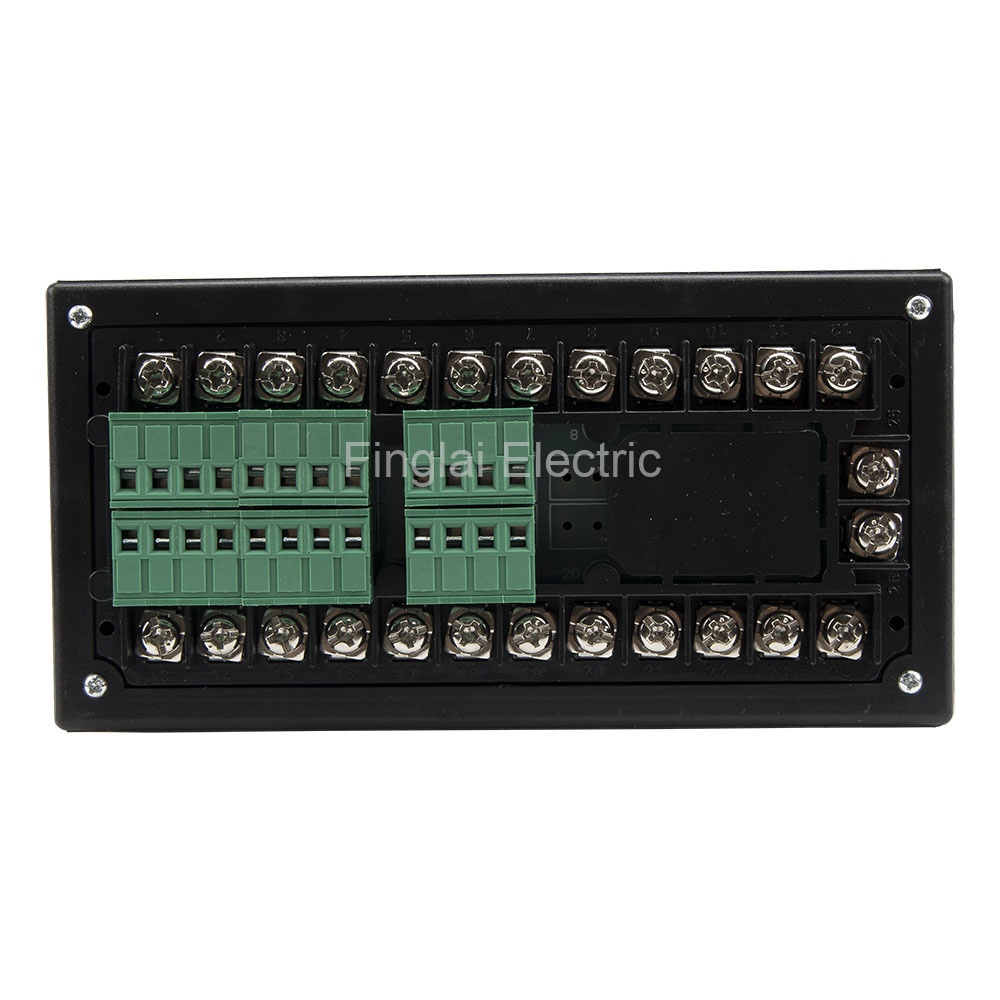

XMT-JK1201G-E 160*80mm AC 85-242V 12 SSR main outputs and 12 E thermocouple inputs digital temperature controller
Price: US $146.97 / piece
Model number: XMT-JK1201G-E
DatasheetXMT-JK12 series 12 ways 12 PIDs digital temperature controller manual
Product name: Digital temperature controller
Alarm quantity:
0 alarm
Input method and output type:
Thermocouple input and relay output
US $146.97Thermocouple input and SSR output
US $146.97RTD input and relay outputRTD input and SSR output
Input type:
K
US $146.97E
US $146.97J
US $146.97PT100Cu50
Deliver to:
Shipping:
US $39.17via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $186.14
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberExternal dimensionsPerforation dimensionsOnline store:
XMT-JK12160x80x125 mm152 10x76 10 mmVisiting...
▇ XMT-JK12 digital temperature controller model number legend
▇ General
Model number XMT-JK12 series
Accuracy ±0.5%F.S±1℃
Supply voltage 85-242Vac,50/60 Hz
Input type Thermocouple: K, J, E
RTD: Pt100, Cu50
Output type Electromagnetic relay, SSR  (not in one product, need to select)
Power consumption Less than 5W
Control method 12 PIDs, or ON/OFF
Setting method Touch switch
Indication method 8-segment 4-digital display and LED indication
Alarms No alarm
Control period 2-120s (can adjust)
Operating temperature 0 to 50 ℃ (32 to 122 ℉)
Operating humidity 85% RH max, non-condensing
Alias name XMT-JK12 series four ways four PIDs temperature controller, intelligent temperature controller
▇ Output type and description
Electromagnetic relay Contact rating: 5A at 220Vac (Resistive load)
Solid state relay Contact rating can be selected, order separately (Single phase 40A, Three phase 40A)
Triac Zero crossing pulse, Amplitude>3V, width>50us, the instrument's supply voltage and load must be same phase current
▇ Input type and measuring range
K -30.0-1300 ℃ (Bolt, Press spring, Ring, M12 probe, M8 probe, Flexible probe, Armor high temperature resistant, Customized thread probe)
J -30.0-900.0 ℃ (Bolt, Press spring, Press spring without threaded sleeve, Ring, Flexible probe
E -30-700.0 ℃ (Bolt, Press spring, Ring, Probe, Customized thread probe)
Pt100 -199.9-600.0 ℃ (Bolt, Press spring, Ring, Probe, Polish rod, Polish rod waterproof, Polish rod waterproof anticorrosive, Flexible probe, Customized thread probe)
Cu50 -50.0-150.0 ℃ (Probe), Polish rod waterproof)
▇ XMT-JK12 digital temperature controller child models
No Model Number Alarm Quantity Input Method And Output Type Input Type MOQ Unit Price Related Product
1 XMT-JK1201-K 0 alarm Thermocouple input and relay output K 1 US $146.97 Order
2 XMT-JK1201-E 0 alarm Thermocouple input and relay output E 1 US $146.97 Order
3 XMT-JK1201-J 0 alarm Thermocouple input and relay output J 1 US $146.97 Order
4 XMT-JK1201G-K 0 alarm Thermocouple input and SSR output K 1 US $146.97 Order
5 XMT-JK1201G-E 0 alarm Thermocouple input and SSR output E 1 US $146.97 Visiting... Unfold
6 XMT-JK1201G-J 0 alarm Thermocouple input and SSR output J 1 US $146.97 Order
7 XMT-JK1202-PT100 0 alarm RTD input and relay output PT100 1 US $146.97 Order
8 XMT-JK1202-CU50 0 alarm RTD input and relay output Cu50 1 US $146.97 Order
9 XMT-JK1202G-PT100 0 alarm RTD input and SSR output PT100 1 US $146.97 Order
10 XMT-JK1202G-CU50 0 alarm RTD input and SSR output Cu50 1 US $146.97 Order
Packaging Details
Product quantity: 1pc
Package weight: 1.2kg
Package size: 23 x 13 x 16 cm
