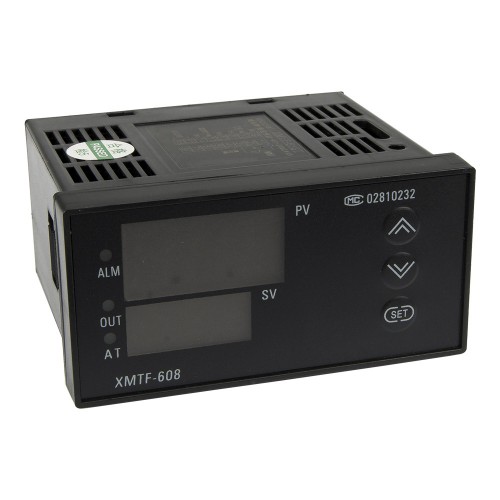

XMTF-6 series 96*48mm AC 85-242V time control digital temperature controllers

Main child models
Product description
Model number and parameters
Model numberExternal dimensionsPerforation dimensionsOnline store:
XMTG-648x48x110 mm44 10x44 10 mmUS $25.69/ pieceOrder (2)
XMTE-648x96x110 mm44 10x92 10 mmUS $25.69/ pieceOrder (2)
XMTF-696x48x110 mm92 10x44 10 mmVisiting...
XMTD-672x72x110 mm68 10x68 10 mmUS $25.69/ pieceOrder (2)
XMTA-696x96x110 mm92 10x92 10 mmUS $25.69/ pieceOrder (2)
XMT-6168x80x120 mm156 10x76 10 mmUS $25.69/ pieceOrder (2)
XMTS-680x160x120 mm76 10x156 10 mmUS $25.69/ pieceOrder (2)
XMTF-6 digital temperature controller model number legend
General
Model number XMT-6 series
Accuracy ±0.5%F.S±1℃
Supply voltage 85-242Vac,50/60 Hz
Input type Thermocouple: K, J, E, T
RTD: Pt100, Cu50
Output type Electromagnetic relay, SSR (not in one product, need to select)
Auxiliary function Time control
Power consumption Less than 3W
Control method PID, or ON/OFF, with time function
Setting method Touch switch
Indication method 8-segment 4-digital display and LED indication
Alarms Upper limit alarm / time control contact
Operating temperature 0 to 50 ℃ (32 to 122 ℉)
Operating humidity 85% RH max, non-condensing
Alias name XMT-6 series pid temperature controller, intelligent temperature controller
Output type and description
Electromagnetic relay Contact rating: 5A at 250Vac
Solid state relay Contact rating can be selected, order separately (Single phase 40AThree phase 40A)
Auxiliary function
Time control Time range: 0-999s or 0-999min (Can select by UPT parameter)
Time funciton (INT parameter):
0. Common temperature control
1. When reach to SV, timer work, when time finished, the alarm relay switch on, the controller go on heating.
2. When reach to SV, timer work, when time finished, the alarm relay switch on, the controller stop heating. (soaking time)
3. Usual temperature control (No alarm) + time control function: The time run when switch on the controller, the alarm relay switch on when time reached.
Input type and measuring range
K -30-999 ℃ (BoltPress springRingM12 probeM8 probeFlexible probeArmor high temperature resistantCustomized thread probe)
E -30-700 ℃ (BoltPress springRingProbeCustomized thread probe)
T -199-400 ℃
Pt100 -199.9-649.0 ℃ (BoltPress springRingProbePolish rodPolish rod waterproofPolish rod waterproof anticorrosiveFlexible probeCustomized thread probe)
Cu50 -50-150 ℃ (ProbePolish rod waterproof)
XMTF-6 digital temperature controller child models
No Model Number Alarm Quantity Input Type Output Type MOQ Unit Price
1 XMTF-618T 1 alarm / time control contact Thermocouples and RTDs Electromagnetic relay+time control 1 US $25.69
2 XMTF-618GT 1 alarm / time control contact Thermocouples and RTDs SSR+time control 1 US $25.69
