FTARP03 PT100 6*30mm polish rod probe 5m plastic cable waterproof temperature sensor

10 sold
Product features
Mouse over to zoom in

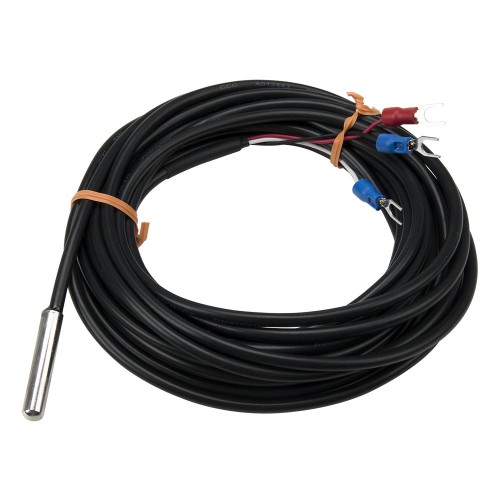

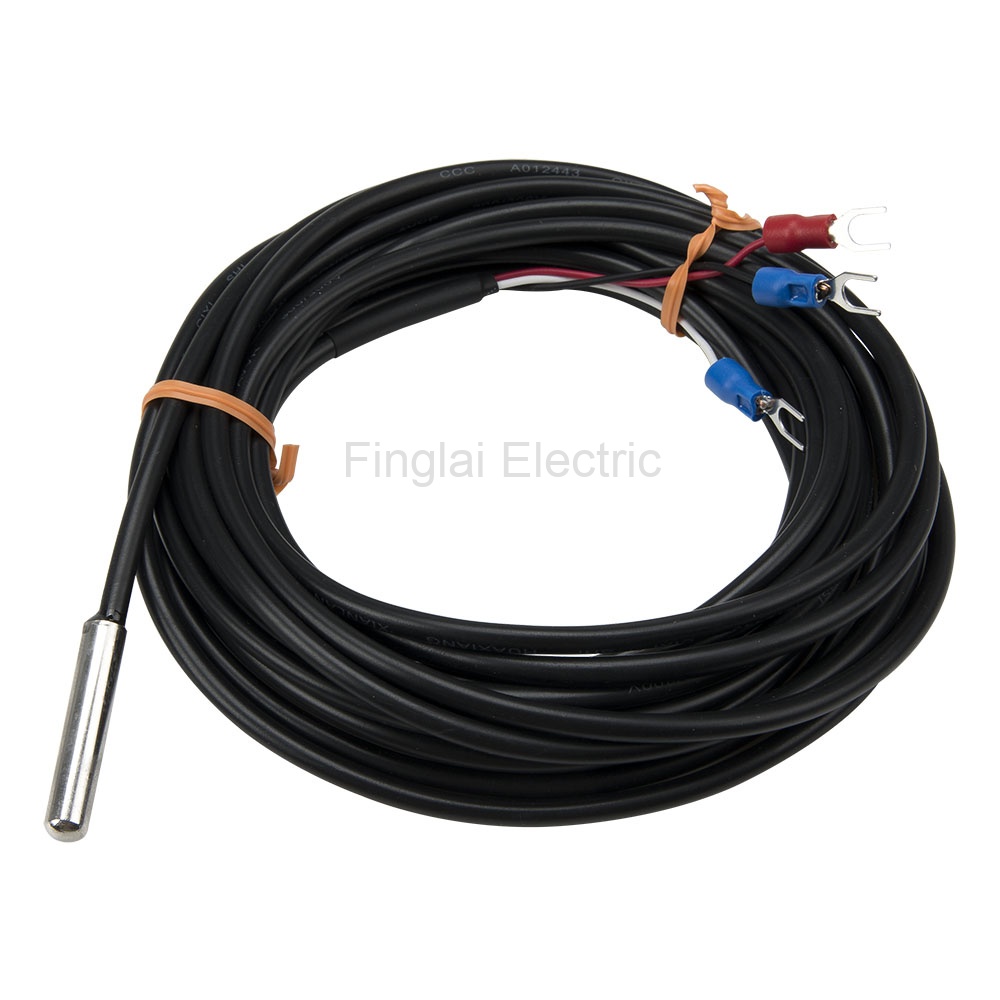

FTARP03 PT100 6*30mm polish rod probe 5m plastic cable waterproof temperature sensor
Price: US $4.87 / piece
Model number: FTARP03-PT100-D6L30P5
Product name: Temperature sensor
Probe diameter:
5mm6mm
US $4.87
Probe length:
30mm
US $4.8750mm
US $4.8770mm
Cabel material:
PVC
Cable length:
1m
US $2.742m
US $3.193m
US $3.975m
US $4.878m10m
US $6.8915m20m32m40m
Deliver to:
Shipping:
US $8.69via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $13.56
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP03-PT100PT100-50-150 ℃Visiting...
FTARP03-CU50Cu50-50-150 ℃US $2.2 - 4.58/ pieceOrder (8)
FTARP03-NTCNTCPVC: -5-80 ℃; Silica gel: -50-180 ℃US $2.66 - 11.81/ pieceOrder (41)
▇ FTARP03-PT100 temperature sensor model number legend
FTARP03-PT100
Parent Model Number
-D6
Probe diameter
-D5: 5mm
-D6: 6mm
L30
Probe length
L30: 30mm
L50: 50mm
L70: 70mm
P
Cabel material
P: PVC
5
Cable length
1: 1m
2: 2m
3: 3m
5: 5m
8: 8m
10: 10m
15: 15m
20: 20m
32: 32m
40: 40m
▇ General
Model number FTARP03 series
Mounting form Polish rod probe
Resistacne NTC: 10KΩ at 25°C
B value NTC: 3435K at 25/85°C; 3950K at 25/85°C
Probe material Stainless steel
Probe diameter 5, 6mm
Current: 6mm
Probe length 30mm, 50mm, can be customized
Current: 30mm
Cable material PVC; Silica gel
Cable length Standard is 2m, customer can select 1, 3 ,5, 10m or specify the cable length
Current: 5m
Thermal response time <12s
Insulating resistance 20MΩ min
Purpose Cold storage, Pharmaceutical GMP monitoring system, Telecommunications room, Beer production, Building automation control, Incubation, Aquaculture, Greenhouse, Air conditioning, Household refrigerators
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
▇ FTARP03-PT100 temperature sensor child models
No Model Number Probe Diameter Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP03-PT100-D5L50P1 5mm 50mm PVC 1m 1 US $2.74 Order
2 FTARP03-PT100-D5L50P2 5mm 50mm PVC 2m 1 US $3.19 Order
3 FTARP03-PT100-D5L50P3 5mm 50mm PVC 3m 1 US $3.97 Order
4 FTARP03-PT100-D5L50P5 5mm 50mm PVC 5m 1 US $4.87 Order
5 FTARP03-PT100-D5L50P8 5mm 50mm PVC 8m 1 US $6.09 Order Unfold
6 FTARP03-PT100-D5L50P10 5mm 50mm PVC 10m 1 US $6.89 Order
7 FTARP03-PT100-D5L50P15 5mm 50mm PVC 15m 1 US $9.27 Order
8 FTARP03-PT100-D5L50P20 5mm 50mm PVC 20m 1 US $10.07 Order
9 FTARP03-PT100-D5L50P32 5mm 50mm PVC 32m 1 US $14.83 Order
10 FTARP03-PT100-D5L50P40 5mm 50mm PVC 40m 1 US $18.01 Order
11 FTARP03-PT100-D6L30P1 6mm 30mm PVC 1m 1 US $2.74 Order
12 FTARP03-PT100-D6L30P2 6mm 30mm PVC 2m 1 US $3.19 Order
13 FTARP03-PT100-D6L30P3 6mm 30mm PVC 3m 1 US $3.97 Order
14 FTARP03-PT100-D6L30P5 6mm 30mm PVC 5m 1 US $4.87 Visiting...
15 FTARP03-PT100-D6L30P10 6mm 30mm PVC 10m 1 US $6.89 Order
16 FTARP03-PT100-D6L50P5 6mm 50mm PVC 5m 1 US $4.87 Order
17 FTARP03-PT100-D6L70P2 6mm 70mm PVC 2m 1 US $4.15 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
