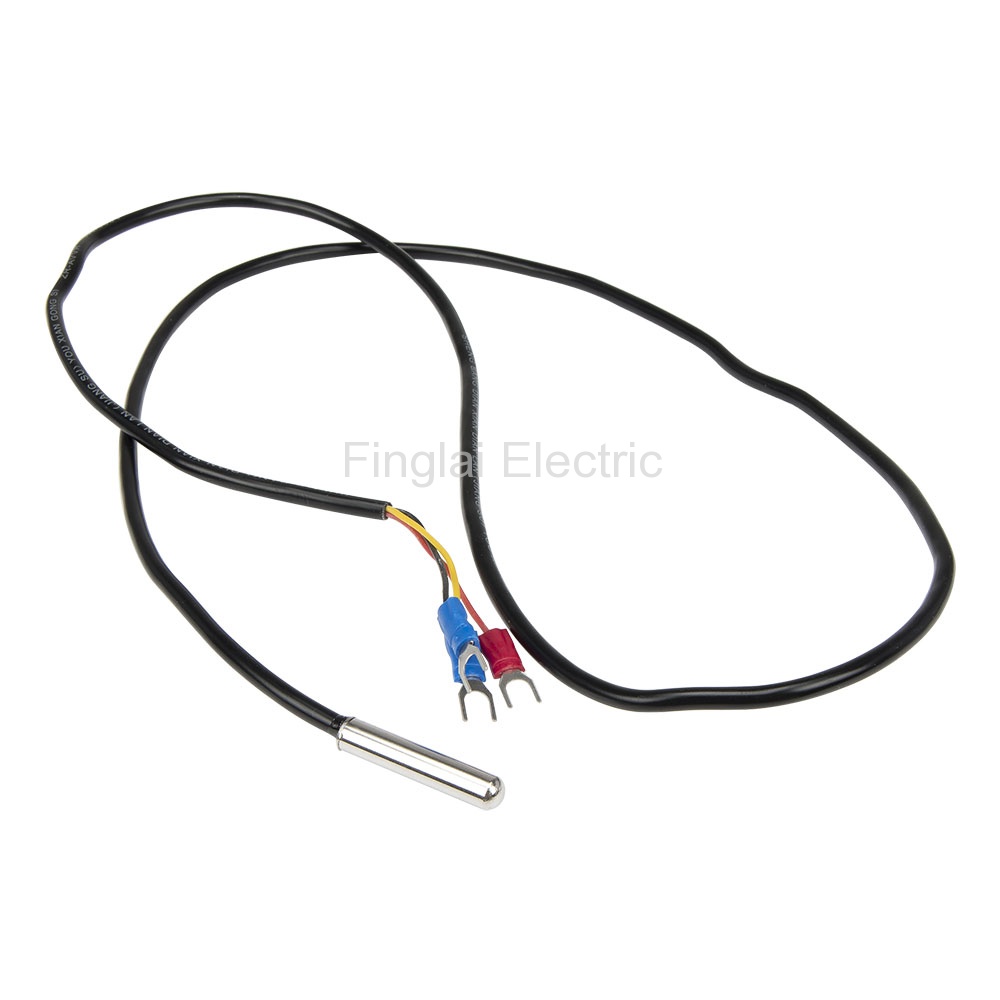

FTARP03 PT100 6*30mm polish rod probe 1m plastic cable waterproof temperature sensor

Product features
Mouse over to zoom in
FTARP03 PT100 6*30mm polish rod probe 1m plastic cable waterproof temperature sensor
Price: US $2.74 / piece
Model number: FTARP03-PT100-D6L30P1
Product name: Temperature sensor
Probe diameter:
5mm6mm
US $2.74
Probe length:
30mm
US $2.74
50mm70mm
Cabel material:
Plastic
Deliver to:
Shipping:
US $5.6via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $8.34
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP03-PT100PT100-50-150 ℃Visiting...
FTARP03-CU50Cu50-50-150 ℃US $2.2 - 4.58/ pieceOrder (8)
FTARP03-NTCNTCPVC: -5-80 ℃; Silica gel: -50-180 ℃US $2.66 - 11.81/ pieceOrder (37)
FTARP03-PT100 temperature sensor model number legend
FTARP03-PT100


Parent Model Number
-D6


Probe diameter
P


Cabel material
General
Model number FTARP03 series
Mounting form Polish rod probe
Resistacne NTC: 10KΩ at 25°C
B value NTC: 3435K at 25/85°C; 3950K at 25/85°C
Probe material Stainless steel
Probe diameter 5, 6mm
Current: 6mm
Probe length 30mm, 50mm, can be customized
Current: 30mm
Cable material PVC; Silica gel
Cable length Standard is 2m, customer can select 1, 3 ,5, 10m or specify the cable length
Current: 1m
Thermal response time <12s
Insulating resistance 20MΩ min
Purpose Cold storage, Pharmaceutical GMP monitoring system, Telecommunications room, Beer production, Building automation control, Incubation, Aquaculture, Greenhouse, Air conditioning, Household refrigerators
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARP03-PT100 temperature sensor child models
No Model Number Probe Diameter Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP03-PT100-D5L50P1 5mm 50mm Plastic 1m 1 US $2.74 Order
2 FTARP03-PT100-D5L50P2 5mm 50mm Plastic 2m 1 US $3.19 Order
3 FTARP03-PT100-D5L50P3 5mm 50mm Plastic 3m 1 US $3.97 Order
4 FTARP03-PT100-D5L50P5 5mm 50mm Plastic 5m 1 US $4.87 Order
5 FTARP03-PT100-D5L50P8 5mm 50mm Plastic 8m 1 US $6.09 Order Unfold
6 FTARP03-PT100-D5L50P10 5mm 50mm Plastic 10m 1 US $6.89 Order
7 FTARP03-PT100-D5L50P15 5mm 50mm Plastic 15m 1 US $9.27 Order
8 FTARP03-PT100-D5L50P20 5mm 50mm Plastic 20m 1 US $10.07 Order
9 FTARP03-PT100-D6L30P1 6mm 30mm Plastic 1m 1 US $2.74 Visiting...
10 FTARP03-PT100-D6L30P2 6mm 30mm Plastic 2m 1 US $3.19 Order
11 FTARP03-PT100-D6L30P3 6mm 30mm Plastic 3m 1 US $3.97 Order
12 FTARP03-PT100-D6L30P5 6mm 30mm Plastic 5m 1 US $4.87 Order
13 FTARP03-PT100-D6L30P10 6mm 30mm Plastic 10m 1 US $6.89 Order
14 FTARP03-PT100-D6L70P2 6mm 70mm Plastic 2m 1 US $4.15 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.07kg
Package size: 10 x 10 x 3 cm
