FTARP02-K-D4L30UM2 K thermocouple temperature sensor with 4mm probe diameter, usual metal screening cabel material, 2m cable length

Product features
Mouse over to zoom in

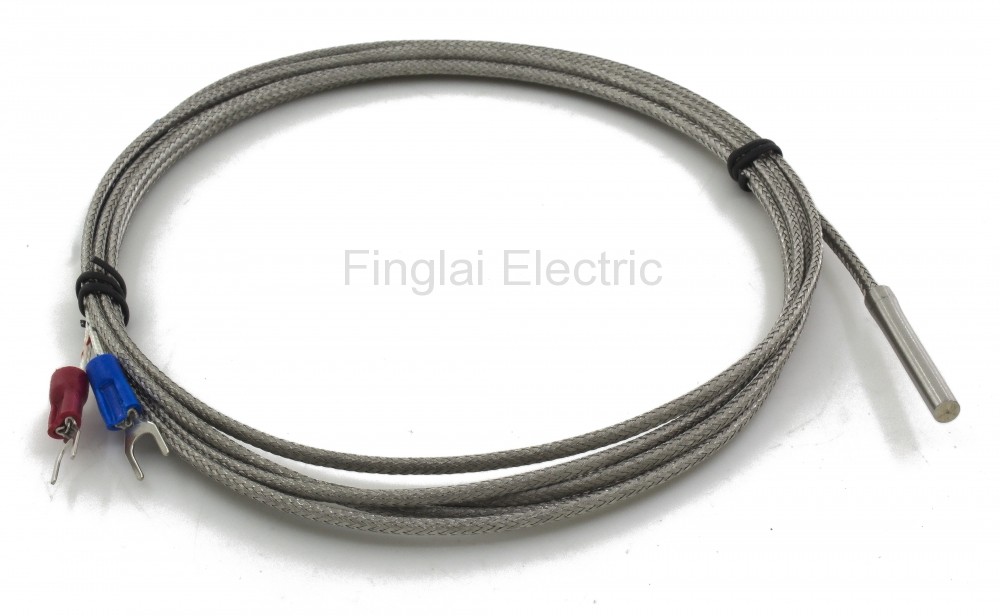

FTARP02-K 2m usual cabel 4*30mm polish rod probe head K type thermocouple temperature sensor
Price: US $1.16 / piece
Model number: FTARP02-K-D4L30UM2
Product name: Thermocouple
Probe diameter:
4mm
US $1.16
5mm
US $1.23
6mm
Probe length:
30mm
Cabel material:
Usual metal screening
US $1.16
High Temperature resistance metal screening
US $2.13
Deliver to:
Shipping:
US $5.22via
Estimated Delivery Time: 12-20 days
quantity:



Total price:US $6.38
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP02-KK0-600℃Visiting...
FTARP02-EE0-400℃US $0.94 - 5.32/ pieceOrder (13)
FTARP02-PT100PT100-50-200℃; -50-450℃US $3.64 - 9.36/ pieceOrder (41)
FTARP02-K thermocouple model number legend
FTARP02-K


Parent Model Number
-D4


Probe diameter


-D4: 4mm


-D5: 5mm


-D6: 6mm
L30


Probe length


L30: 30mm
UM


Cabel material


UM: Usual metal screening


HM: High Temperature resistance metal screening
2


Cable length


1: 1m


2: 2m


3: 3m


4: 4m


5: 5m


8: 8m


10: 10m
General
Model number FTARP02 series
Mounting form Polish rod probe
Accuracy K,E: ±0.75%t; PT100: A grade: ±(0.15℃+0.2%|t|); B grade: ±(0.3℃+0.5%|t|); 2B grade: ±(0.6℃+1%|t|)
Probe material Stainless steel
Probe diameter 4, 5, 6mm
Current: 4mm
Probe length 30, 40, 50, 60, 100mm
Current: 30mm
Cabel material Usual metal screening (-50-200℃); High temperature metal screening (-50-450℃)
Current: Usual metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 or specify the cable length
Current: 2m
Thermal response time Thermocouple: <6s; RTD: <12s
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARP02-K thermocouple child models
No Model Number Probe Diameter Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP02-K-D4L30UM1 4mm 30mm Usual metal screening 1m 1 US $0.94 Order
2 FTARP02-K-D4L30UM2 4mm 30mm Usual metal screening 2m 1 US $1.16 Visiting...
3 FTARP02-K-D4L30UM3 4mm 30mm Usual metal screening 3m 1 US $1.88 Order
4 FTARP02-K-D4L30UM4 4mm 30mm Usual metal screening 4m 1 US $2.33 Order
5 FTARP02-K-D4L30UM5 4mm 30mm Usual metal screening 5m 1 US $2.78 Order Unfold
6 FTARP02-K-D4L30UM8 4mm 30mm Usual metal screening 8m 1 US $4.13 Order
7 FTARP02-K-D4L30UM10 4mm 30mm Usual metal screening 10m 1 US $4.8 Order
8 FTARP02-K-D4L30HM1 4mm 30mm High Temperature resistance metal screening 1m 1 US $1.57 Order
9 FTARP02-K-D4L30HM2 4mm 30mm High Temperature resistance metal screening 2m 1 US $2.13 Order
10 FTARP02-K-D4L30HM3 4mm 30mm High Temperature resistance metal screening 3m 1 US $3.07 Order
11 FTARP02-K-D4L30HM4 4mm 30mm High Temperature resistance metal screening 4m 1 US $3.52 Order
12 FTARP02-K-D4L30HM5 4mm 30mm High Temperature resistance metal screening 5m 1 US $3.97 Order
13 FTARP02-K-D4L30HM8 4mm 30mm High Temperature resistance metal screening 8m 1 US $5.32 Order
14 FTARP02-K-D5L30UM2 5mm 30mm Usual metal screening 2m 1 US $1.23 Order
15 FTARP02-K-D5L30UM5 5mm 30mm Usual metal screening 5m 1 US $2.78 Order
16 FTARP02-K-D5L30HM5 5mm 30mm High Temperature resistance metal screening 5m 1 US $3.97 Order
17 FTARP02-K-D6L30UM1 6mm 30mm Usual metal screening 1m 1 US $1.5 Order
Packaging Details
Package weight: 0.05kg
Package size: 10 x 10 x 2 cm
Product quantity: 1pcs
