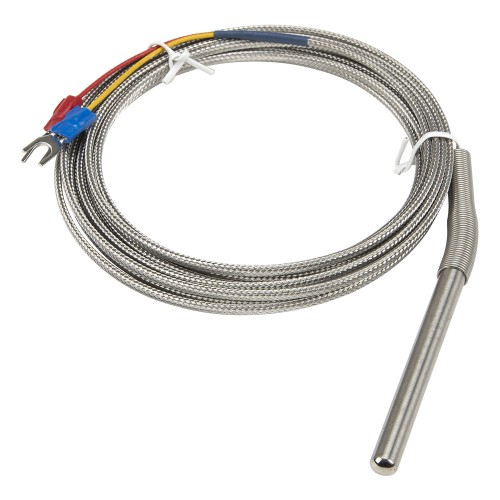

FTARP02 J type 6*60mm polish rod probe 3m high temperature metal screening cable thermocouple temperature sensor with spring protection
Product features
Mouse over to zoom in
FTARP02 J type 6*60mm polish rod probe 3m high temperature metal screening cable thermocouple temperature sensor with spring protection
Price: US $3.52 / piece
Model number: FTARP02-J-D6L60HM3S
Product name: Temperature sensor
Cabel material:
Usual metal screeningHigh density single core metal screeningUS $3.52High density multi cores metal screeningSilica gel
Deliver to:
Shipping:
US $6.95via
Estimated Delivery Time: 9-17 days
Total price:US $10.47
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARP02-K | K | 0-600℃ | US $0.94 - 5.32/ pieceOrder (17) |
| FTARP02-E | E | 0-400℃ | US $0.94 - 5.32/ pieceOrder (13) |
| FTARP02-J | J | Metal screening: 0-400℃; Silica gel: 0-200 ℃ | Visiting... |
| FTARP02-PT100 | PT100 | Usual metal screening: -50-200℃ High temperature metal screening: -50-450℃ Ceramic fiber pure nickel wire: -50-500℃ | US $3.64 - 9.36/ pieceOrder (42) |
▇ FTARP02-J temperature sensor model number legend
FTARP02-J
Parent Model Number
HM
Cabel material
▇ General
| Model number | FTARP02 series |
| Mounting form | Polish rod probe |
| Accuracy | K,E,J: ±0.75%t; PT100: A grade: ±(0.15℃+0.2%|t|); B grade: ±(0.3℃+0.5%|t|); 2B grade: ±(0.6℃+1%|t|) |
| Work type | Thermocouple: Usual metal screening: Grounded; High density metal screening: Ungrounded |
| Probe material | Stainless steel |
| Probe diameter | 4, 5, 6mm Current: 6mm |
| Probe length | 10, 20, 30, 40, 50, 60, 100mm Current: 60mm |
| Cable material | Usual metal screening, high density single core metal screening, high density multi cores metal screening |
| Cable length | Standard is 2m, customer can select 1, 3 ,5 or specify the cable length Current: 3m with spring |
| Thermal response time | Thermocouple: <6s; RTD: <12s |
| Insulating resistance | 20MΩ min |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARP02-J temperature sensor child models
| No | Model Number | Probe Diameter | Probe Length | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARP02-J-D4L40HM3S | 4mm | 40mm | High density single core metal screening | 3m with spring | 1 | US $3.52 | Order |
| 2 | FTARP02-J-D4L40HM4S | 4mm | 40mm | High density single core metal screening | 4m with spring | 1 | US $4.19 | Order |
| 3 | FTARP02-J-D4L40HM5S | 4mm | 40mm | High density single core metal screening | 5m with spring | 1 | US $4.87 | Order |
| 4 | FTARP02-J-D4L40MM4S | 4mm | 40mm | High density multi cores metal screening | 4m with spring | 1 | US $5.53 | Order |
| 5 | FTARP02-J-D4L20HM1 | 4mm | 20mm | High density single core metal screening | 1m | 1 | US $2.06 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.09kg
Package size: 10 x 10 x 4 cm
