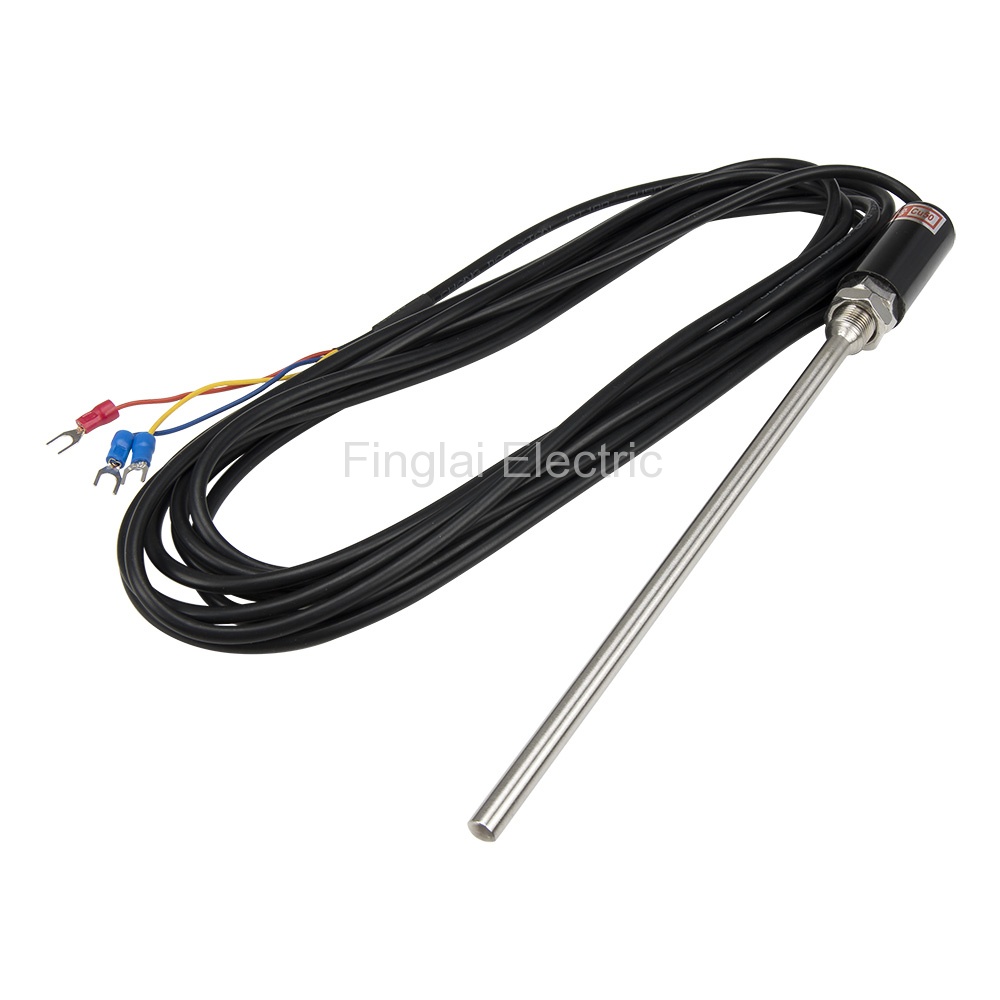

FTARP01 Cu50 type 200mm stainless steel probe 5m plastic sheathed cabel RTD temperature sensor

Product features
Mouse over to zoom in
FTARP01 Cu50 type 200mm stainless steel probe 5m plastic sheathed cabel RTD temperature sensor
Price: US $4.17 / piece
Model number: FTARP01-CU50-S200P5
Product name: Temperature sensor
Probe Material:
Stainless steel
Probe length:
200mm
Cabel material:
Plastic sheathed
Cable length:
1m
US $3.39
2m
US $3.51
5m
US $4.17
Deliver to:
Shipping:
US $7.4via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $11.57
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARP01-KWRNT-03K0-600 ℃US $1.84 - 4.35/ pieceOrder (8)
FTARP01-EWRET-03E0-400 ℃US $1.84 - 2.81/ pieceOrder (3)
FTARP01-JJ0-400 ℃
FTARP01-PT100WZPT-03PT100-50-150 ℃US $3.39 - 7.46/ pieceOrder (27)
FTARP01-CU50WZCT-03Cu50-50-150 ℃Visiting...
FTARP01-CU50 temperature sensor model number legend
FTARP01-CU50


Parent Model Number
-S


Probe Material
200


Probe length
P


Cabel material
5


Cable length
General
Model number FTARP01 series
Mounting form Probe
Accuracy K,E,J: ±0.75%t; PT100: ±(0.3℃+0.5%|t|); Cu50: ±(0.3℃+0.6%|t|)
Thread size M12x1
Probe material Default: Stainless steel (1Cr18Ni9Ti, recommend to measure liquid), can make Aluminum (recommend to measure air)
Probe diameter Φ7
Probe length 50, 100, 150, 200, 300, 500mm
Current: 200mm
Cable material K,E: fibreglass braided; J: metal screening; PT100: plastic, metal screening; Cu50: plastic
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 5m
Thermal response time Thermocouple: <8s; RTD: <15s
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARP01-CU50 temperature sensor child models
No Model Number Probe Material Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP01-CU50-S200P1 Stainless steel 200mm Plastic sheathed 1m 1 US $3.39 Order
2 FTARP01-CU50-S200P2 Stainless steel 200mm Plastic sheathed 2m 1 US $3.51 Order
3 FTARP01-CU50-S200P5 Stainless steel 200mm Plastic sheathed 5m 1 US $4.17 Visiting...
Packaging Details
Product quantity: 1pc
Package weight: 0.18kg
Package size: 20 x 15 x 5 cm
