E5EN 48*96mm AC 220V SSR main output and K thermocouple input 999℃ range digital temperature controller
10 sold
Product features
Mouse over to zoom in

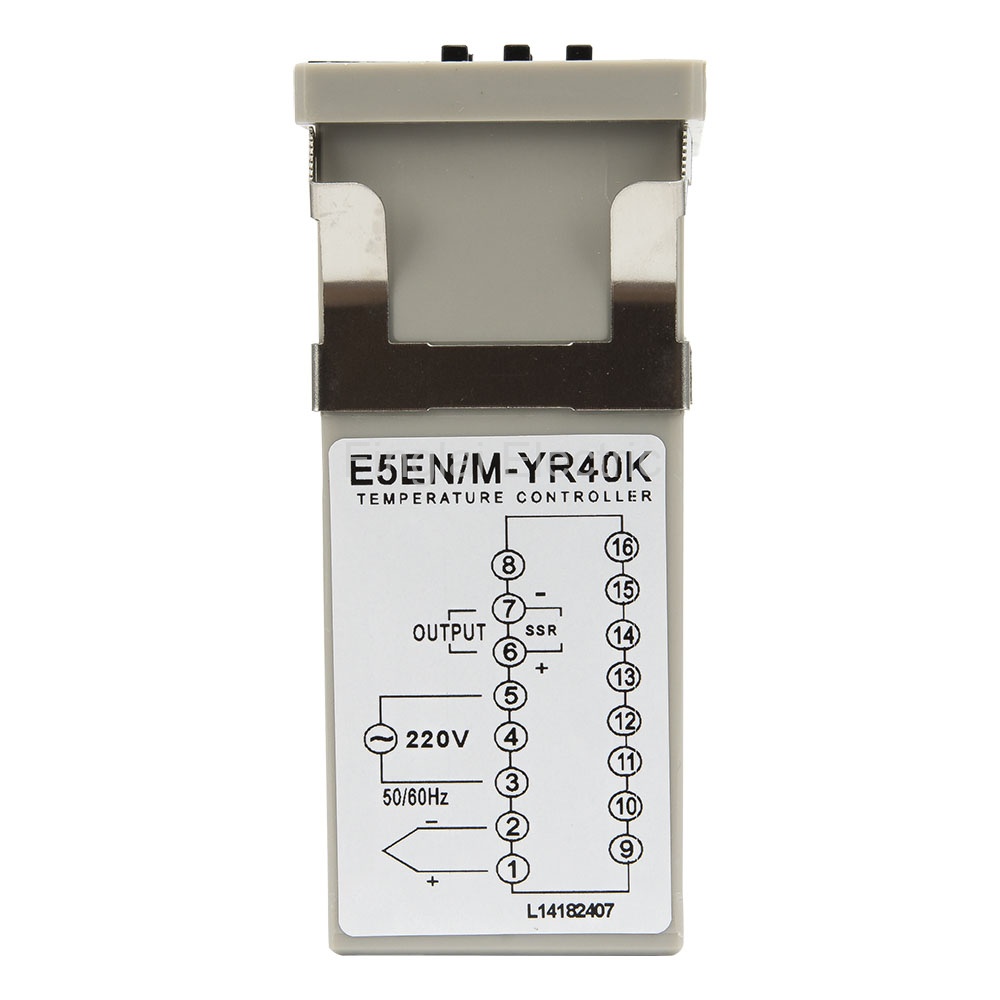

E5EN 48*96mm AC 220V SSR main output and K thermocouple input 999℃ range digital temperature controller
Price: US $11.22 / piece
Model number: E5EN-SR-K999
Product name: Digital temperature controller
Input type:
KDeliver to:
Shipping:
US $15.95via
Estimated Delivery Time: 9-17 days
Total price:US $27.17
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | External dimensions | Perforation dimensions | Online store: |
| E5EN | 48x96x110 mm | 45 10x92 10 mm | Visiting... |
▇ E5EN digital temperature controller model number legend
E5EN
Parent Model Number
▇ General
| Model number | E5EN-YR40K |
| Accuracy | ±1%F.S±1℃ |
| Supply voltage | 220Vac, 50/60 Hz |
| Input type | K |
| Output type | Mechanical Relay, SSR (not in one product, need to select) Current: SSR |
| Power consumption | Less than 5 VA |
| Control method | ON/OFF Control |
| Setting method | Dial switch |
| Indication method | 7-segment 3-digital display |
| Alarms | No alarm |
| Operating humidity | 0 to 50 ℃ (32 to 122 ℉) |
| Alias name | 85% RH max, non-condensing |
▇ Output type and description
| Electromagnetic relay | Contact rating: 3A at 250Vac |
| Solid state relay | Contact rating can be selected, order separately (Single phase 40A, Three phase 40A) |
▇ Input type and measuring range
| K | 0-999 ℃ (Bolt, Press spring, Ring, M12 probe, M8 probe, Flexible probe, Armor high temperature resistant, Customized thread probe) |
▇ E5EN digital temperature controller child models
| No | Model Number | Output Type | Input Type | Measuring Range | MOQ | Unit Price | Related Product |
| 1 | E5EN-R-K399 | Electromagnetic relay | K | 0-399℃ | 1 | US $8.24 | Order |
| 2 | E5EN-R-K999 | Electromagnetic relay | K | 0-999℃ | 1 | US $8.24 | Order |
| 3 | E5EN-SR-K399 | SSR | K | 0-399℃ | 1 | US $10.79 | Order |
| 4 | E5EN-SR-K999 | SSR | K | 0-999℃ | 1 | US $11.22 | Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 14.5 x 8.5 x 10.5 cm
