WRN-230 K type 2520 stainless steel M27x2 screw thread 350mm total 200mm insert probe length box connection thermocouple temperature sensor
Product features
Mouse over to zoom in

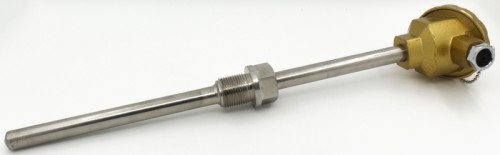

WRN-230 K type 2520 stainless steel M27x2 screw thread 350mm total 200mm insert probe length box connection thermocouple temperature sensor
Price: US $17.71 / piece
Model number: WRN-230-M2520M27P2D16T350L200
Product name: Thermocouple
Thread size:
M27*2mmProbe diameter:
Φ16Deliver to:
Shipping:
US $24.66via
Estimated Delivery Time: 9-17 days
Total price:US $42.37
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Remark | Online store: |
| WRN-230 | K | 201 stainless steel: 0-600 ℃ 304 stainless steel: 0-800 ℃ 2520 stainless steel: 0-1100 ℃ | Screw thread fixed | Visiting... |
| WRN-430 | K | 201 stainless steel: 0-600 ℃ 304 stainless steel: 0-800 ℃ 2520 stainless steel: 0-1100 ℃ | Flange fixed | |
| WZP-230 | PT100 | Screw thread fixed | ||
| WZP-430 | PT100 | Flange fixed |
▇ WRN-230 thermocouple model number legend
WRN-230
Parent Model Number
T350
Total probe length
L200
Insert probe length
▇ General
| Model number | WRN-230 |
| Mounting form | Probe |
| Accuracy | ±0.75%t |
| Sensor wire diameter | 201 stainless steel: 1.5mm; 2520 stainless steel: 2mm |
| Thread size | M27x2 Current: M27*2mm |
| Probe material | 201, 304, 2520, 316L, GH3039 stainless steel |
| Probe diameter | Φ16 Current: Φ16 |
| Probe length | Cold side tube: 150mm; sensing tube: 200mm, can be customized. |
| Total probe length | Current: 350mm |
| Matched accessory | FTARA03 terminal block |
| Thermal response time | <150s |
▇ WRN-230 thermocouple child models
| No | Model Number | Probe Material | Thread Size | Probe Diameter | Total Probe Length | Insert Probe Length | MOQ | Unit Price | Related Product |
| 1 | WRN-230-M201M27P2D16T250L100 | 201 stainless steel | M27*2mm | Φ16 | 250mm | 100mm | 1 | US $4.95 | Order |
| 2 | WRN-230-M201M27P2D16T350L200 | 201 stainless steel | M27*2mm | Φ16 | 350mm | 200mm | 1 | US $5.62 | Order |
| 3 | WRN-230-M201M27P2D16T450L300 | 201 stainless steel | M27*2mm | Φ16 | 450mm | 300mm | 1 | US $6.29 | Order |
| 4 | WRN-230-M201M27P2D16T550L400 | 201 stainless steel | M27*2mm | Φ16 | 550mm | 400mm | 1 | US $6.97 | Order |
| 5 | WRN-230-M2520M27P2D16T200L100 | 2520 stainless steel | M27*2mm | Φ16 | 200mm | 100mm | 1 | US $15.25 | Order Unfold |
WRN-230 series K type screw thread fixed probe box connection thermocouple temperature sensors dimensions
Packaging Details
Product quantity: 1pc
Package weight: 0.7kg
Package size: 50 x 20 x 20 cm
