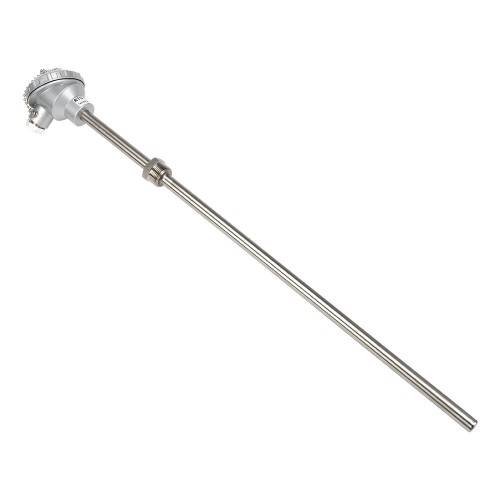

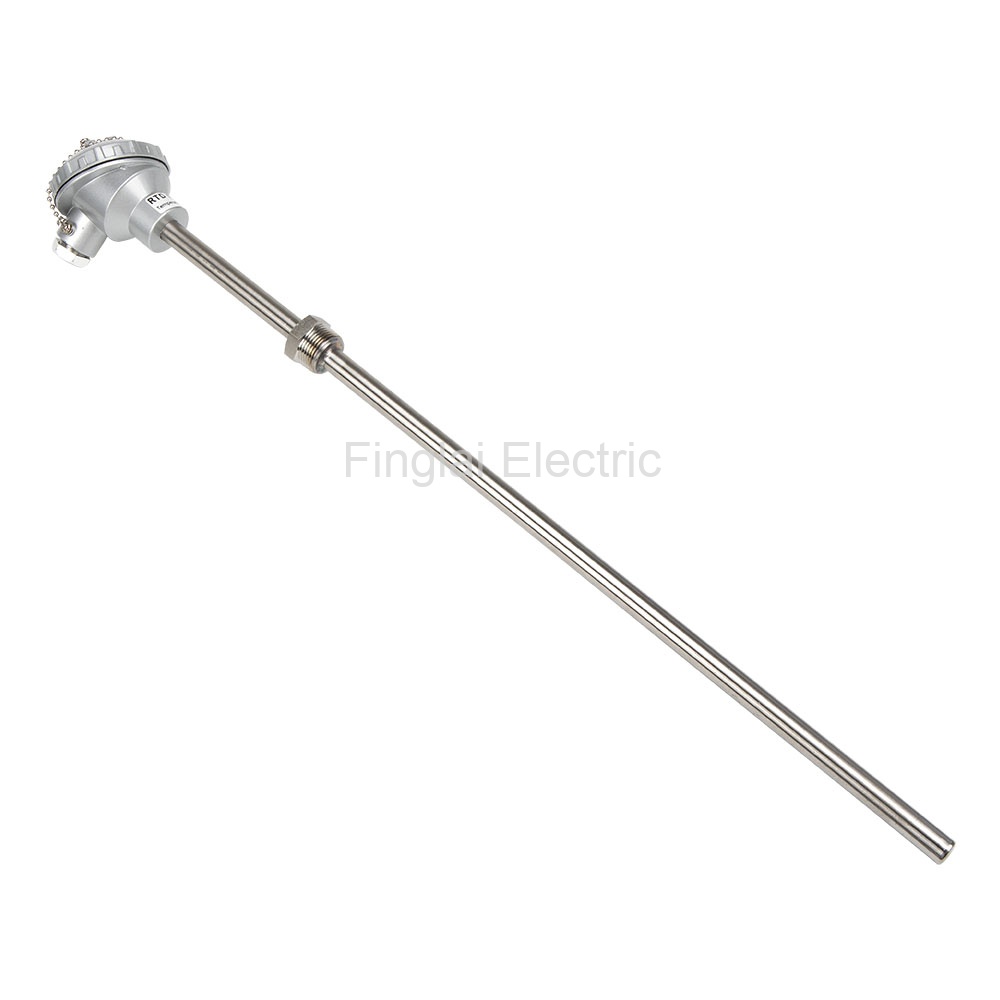

WRP-230 series PT100 type screw thread fixed probe box connection RTD temperature sensors
Main child models
Price: US $13.8 / piece
Model number: WZP-230-M304NPT6D14T550L430
Product name: Temperature sensor
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Remark | Online store: |
| WRN-230 | K | 201 stainless steel: 0-600 ℃ 304 stainless steel: 0-800 ℃ 2520 stainless steel: 0-1100 ℃ | Screw thread fixed | US $4.95 - 87/ pieceOrder (13) |
| WRN-430 | K | 201 stainless steel: 0-600 ℃ 304 stainless steel: 0-800 ℃ 2520 stainless steel: 0-1100 ℃ | Flange fixed | |
| WZP-230 | PT100 | Screw thread fixed | Visiting... | |
| WZP-430 | PT100 | Flange fixed |
▇ WZP-230 temperature sensor model number legend
WZP-230
Parent Model Number
Total probe length
▇ General
| Model number | WRN-230 |
| Mounting form | Probe |
| Accuracy | ±0.75%t |
| Sensor wire diameter | 201 stainless steel: 1.5mm; 2520 stainless steel: 2mm |
| Thread size | M27x2 |
| Probe material | 201, 304, 2520, 316L, GH3039 stainless steel |
| Probe diameter | Φ16 |
| Probe length | Cold side tube: 150mm; sensing tube: 200mm, can be customized. |
| Matched accessory | FTARA03 terminal block |
| Thermal response time | <150s |
▇ WZP-230 temperature sensor child models
| No | Model Number | Probe Material | Thread Size | Probe Diameter | Total Probe Length | Insert Probe Length | MOQ | Unit Price |
| 1 | WZP-230-M304NPT6D14T550L430 | 304 stainless steel | NPT 3/4" | Φ14 | 550mm | 430mm | 10 | US $13.8 |
WRN-230 series K type screw thread fixed probe box connection thermocouple temperature sensors dimensions
