Products >> Instruments >> Temperature sensors >> FTARS01 >> FTARS01-PT100 >> FTARS01-PT100-BM12P1.5L32M5
<

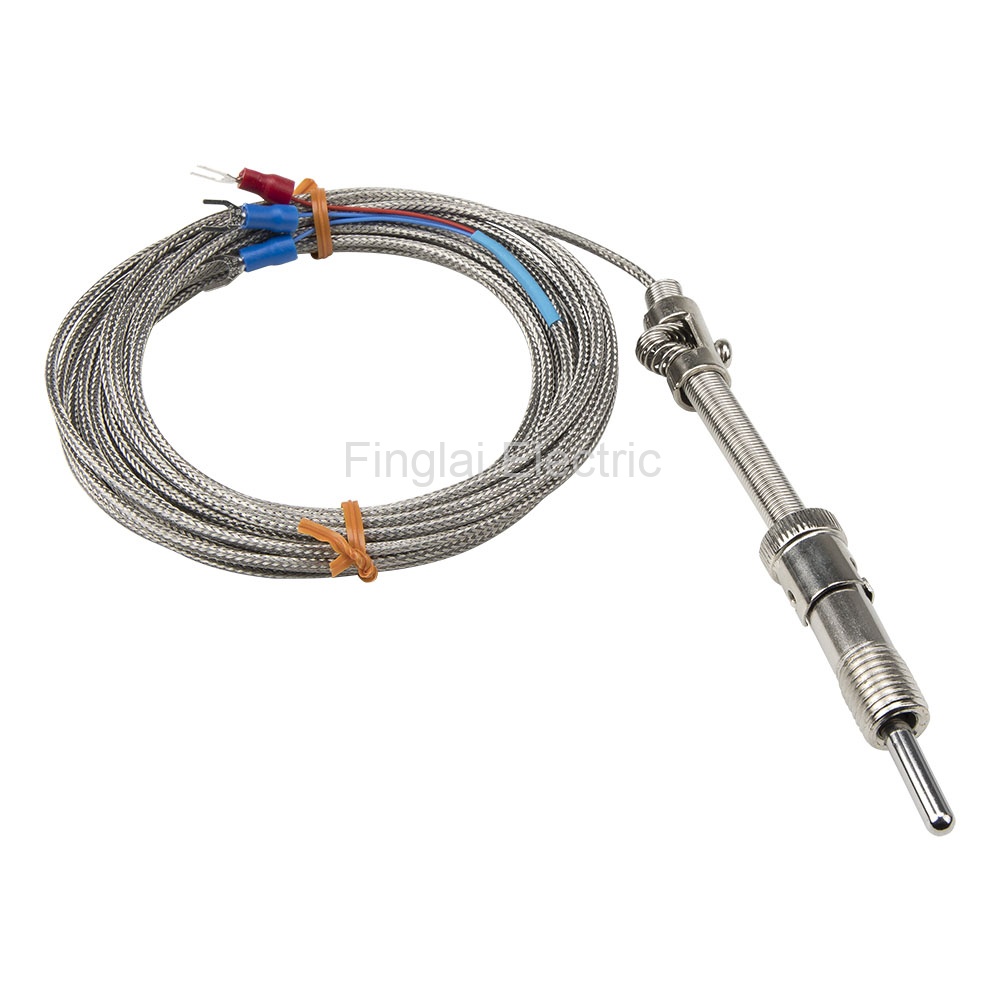

FTARS01 PT100 type B grade bayonet M12*1.5 compression spring 32mm sleeve length 5m metal screening cabel RTD temperature sensor
Product features
Price: US $5.65 / piece
Model number: FTARS01-PT100-BM12P1.5L32M5
Product name: Temperature sensor
Threaded sleeve length:
32mmCabel material:
Metal screeningDeliver to:
Shipping:
US $5.74via
Estimated Delivery Time: 9-15 days
Total price:US $11.39
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Same model | Type | Measuring range | Online store: |
FTARS01-K | WRNT | K | 0-600 ℃ | US $0.9 - 2.99/ pieceOrder (14) |
FTARS01-E | WRET | E | 0-400 ℃ | US $0.9 - 2.62/ pieceOrder (12) |
FTARS01-J | J | 0-400 ℃ | US $1.73 - 3.03/ pieceOrder (7) | |
FTARS01-PT100 | WZPT | PT100 | -50-200 ℃ | Visiting... |
▇ FTARS01-PT100 temperature sensor model number legend
FTARS01-PT100
Parent Model Number
▇ General
Model number | FTARS01 series |
Mounting form | Press spring |
Accuracy | K, E, J: ±0.75%t; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|) Current: B grade: ±(0.3℃+0.5%|t|) |
Work type | Grounded |
Thread size | M12x1.5, M12x1.75, M10x1.5, M8x1.25 Current: M12*1.5 |
Threaded sleeve length | 32mm, 70mm, default is 32mm, if 70mm, need to be customzied Current: 32mm |
Probe diameter | 5mm |
Probe length | 30mm |
Cable material | K, E: metal screening, fibreglass braided; PT100, J: metal screening |
Cable length | Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length Current: 5m |
Matched accessory | 11.5mm ID bayonet cap adapter (included) |
Thermal response time | Thermocouple: <5s; RTD: <12s |
Insulating resistance | 5MΩ min at 20℃, RH<80% |
Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARS01-PT100 temperature sensor child models
No | Model Number | Accuracy | Thread Size | Threaded Sleeve Length | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
1 | FTARS01-PT100-AM12P1.5L32M1 | A grade: ±(0.15℃+0.2%|t|) | M12*1.5 | 32mm | Metal screening | 1m | 1 | US $4.49 | Order |
2 | FTARS01-PT100-AM12P1.5L32M2 | A grade: ±(0.15℃+0.2%|t|) | M12*1.5 | 32mm | Metal screening | 2m | 1 | US $4.88 | Order |
3 | FTARS01-PT100-AM12P1.5L32M5 | A grade: ±(0.15℃+0.2%|t|) | M12*1.5 | 32mm | Metal screening | 5m | 1 | US $6.04 | Order |
4 | FTARS01-PT100-AM12P1.75L32M2 | A grade: ±(0.15℃+0.2%|t|) | M12*1.75 | 32mm | Metal screening | 2m | 1 | US $5.45 | Order |
5 | FTARS01-PT100-BM12P1.5L32M1 | B grade: ±(0.3℃+0.5%|t|) | M12*1.5 | 32mm | Metal screening | 1m | 1 | US $4.1 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
