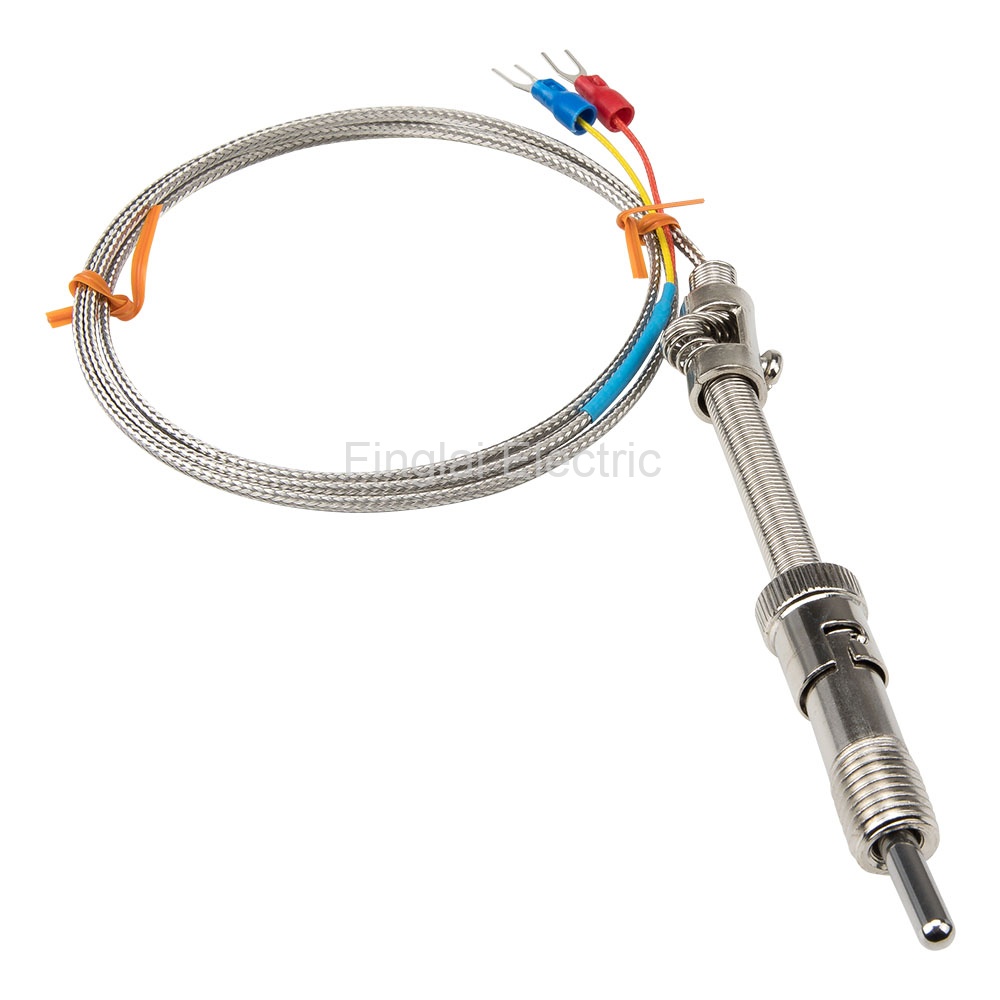

FTARS01-J series J thermocouple temperature sensors

Main child models
Price: US $1.73 / piece
Model number: FTARS01-J-M12P1.5L32M1
Product name: Thermocouple
Thread size:
Threaded sleeve length:
Cabel material:
Metal screening
Cable length:
Product description
Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARS01-KWRNTK0-600 ℃US $0.9 - 2.99/ pieceOrder (14)
FTARS01-EWRETE0-400 ℃US $0.9 - 2.62/ pieceOrder (12)
FTARS01-JJ0-400 ℃Visiting...
FTARS01-PT100WZPTPT100-50-200 ℃US $4.1 - 6.04/ pieceOrder (7)
FTARS01-J thermocouple model number legend

Parent Model Number

Threaded sleeve length

Cabel material
Model number FTARS01 series
Mounting form Press spring
Accuracy K, E, J: ±0.75%t; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|)
Work type Grounded
Thread size M12x1.5, M12x1.75, M10x1.5, M8x1.25
Threaded sleeve length 32mm, 70mm, default is 32mm, if 70mm, need to be customzied
Probe diameter 5mm
Probe length 30mm
Cable material K, E: metal screening, fibreglass braided; PT100, J: metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Matched accessory 11.5mm ID bayonet cap adapter (included)
Thermal response time Thermocouple: <5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARS01-J thermocouple child models
No Model Number Thread Size Threaded Sleeve Length Cabel Material Cable Length MOQ Unit Price
1 FTARS01-J-M12P1.5L32M1 M12*1.5 32mm Metal screening 1m 1 US $1.73
2 FTARS01-J-M12P1.5L32M2 M12*1.5 32mm Metal screening 2m 1 US $1.93
3 FTARS01-J-M12P1.5L32M3 M12*1.5 32mm Metal screening 3m 1 US $2.22
4 FTARS01-J-M12P1.5L32M4 M12*1.5 32mm Metal screening 4m 1 US $2.5
5 FTARS01-J-M12P1.5L32M5 M12*1.5 32mm Metal screening 5m 1 US $2.75
6 FTARS01-J-M12P1.5L32M6 M12*1.5 32mm Metal screening 6m 1 US $3.03
7 FTARS01-J-M12P1.5L70M3 M12*1.5 70mm Metal screening 3m 1 US $2.91
