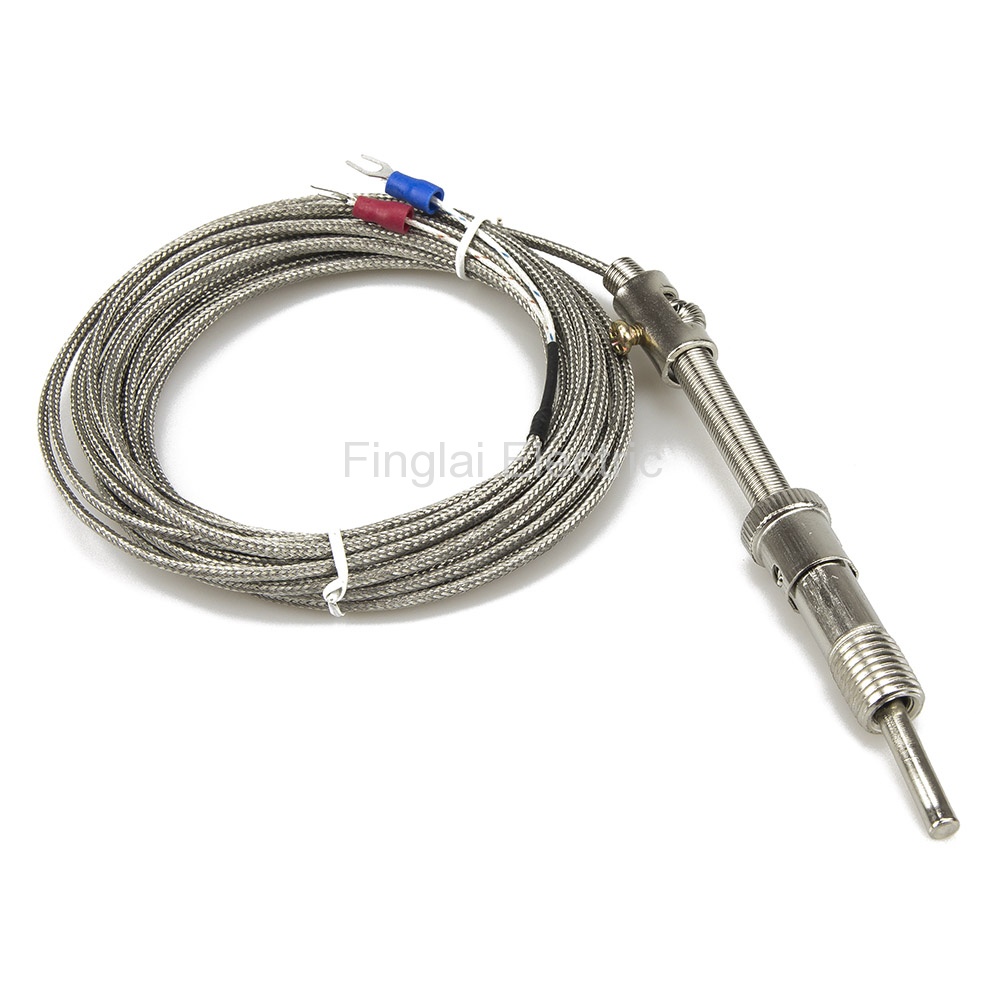

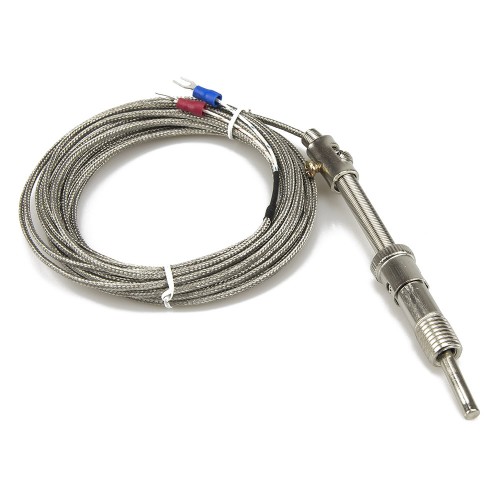

FTARS01 J type bayonet M12 compression spring 32mm sleeve length 5m metal screening cabel thermocouple temperature sensor
Product features
Mouse over to zoom in
FTARS01 J type bayonet M12 compression spring 32mm sleeve length 5m metal screening cabel thermocouple temperature sensor
Price: US $2.75 / piece
Model number: FTARS01-J-M12P1.5L32M5
Product name: Temperature sensor
Thread size:
M12*1.5Cabel material:
Metal screeningDeliver to:
Shipping:
US $7.82via
Estimated Delivery Time: 9-17 days
Total price:US $10.57
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Type | Measuring range | Online store: |
| FTARS01-K | WRNT | K | 0-600 ℃ | US $0.9 - 2.99/ pieceOrder (14) |
| FTARS01-E | WRET | E | 0-400 ℃ | US $0.9 - 2.62/ pieceOrder (12) |
| FTARS01-J | J | 0-400 ℃ | Visiting... | |
| FTARS01-PT100 | WZPT | PT100 | -50-200 ℃ | US $4.1 - 6.04/ pieceOrder (7) |
▇ FTARS01-J thermocouple model number legend
FTARS01-J
Parent Model Number
▇ General
| Model number | FTARS01 series |
| Mounting form | Press spring |
| Accuracy | K, E, J: ±0.75%t; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|) |
| Work type | Grounded |
| Thread size | M12x1.5, M12x1.75, M10x1.5, M8x1.25 Current: M12*1.5 |
| Threaded sleeve length | 32mm, 70mm, default is 32mm, if 70mm, need to be customzied Current: 32mm |
| Probe diameter | 5mm |
| Probe length | 30mm |
| Cable material | K, E: metal screening, fibreglass braided; PT100, J: metal screening |
| Cable length | Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length Current: 5m |
| Matched accessory | 11.5mm ID bayonet cap adapter (included) |
| Thermal response time | Thermocouple: <5s; RTD: <12s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARS01-J thermocouple child models
| No | Model Number | Thread Size | Threaded Sleeve Length | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARS01-J-M12P1.5L32M1 | M12*1.5 | 32mm | Metal screening | 1m | 1 | US $1.73 | Order |
| 2 | FTARS01-J-M12P1.5L32M2 | M12*1.5 | 32mm | Metal screening | 2m | 1 | US $1.93 | Order |
| 3 | FTARS01-J-M12P1.5L32M3 | M12*1.5 | 32mm | Metal screening | 3m | 1 | US $2.22 | Order |
| 4 | FTARS01-J-M12P1.5L32M4 | M12*1.5 | 32mm | Metal screening | 4m | 1 | US $2.5 | Order |
| 5 | FTARS01-J-M12P1.5L32M5 | M12*1.5 | 32mm | Metal screening | 5m | 1 | US $2.75 | Visiting... Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
