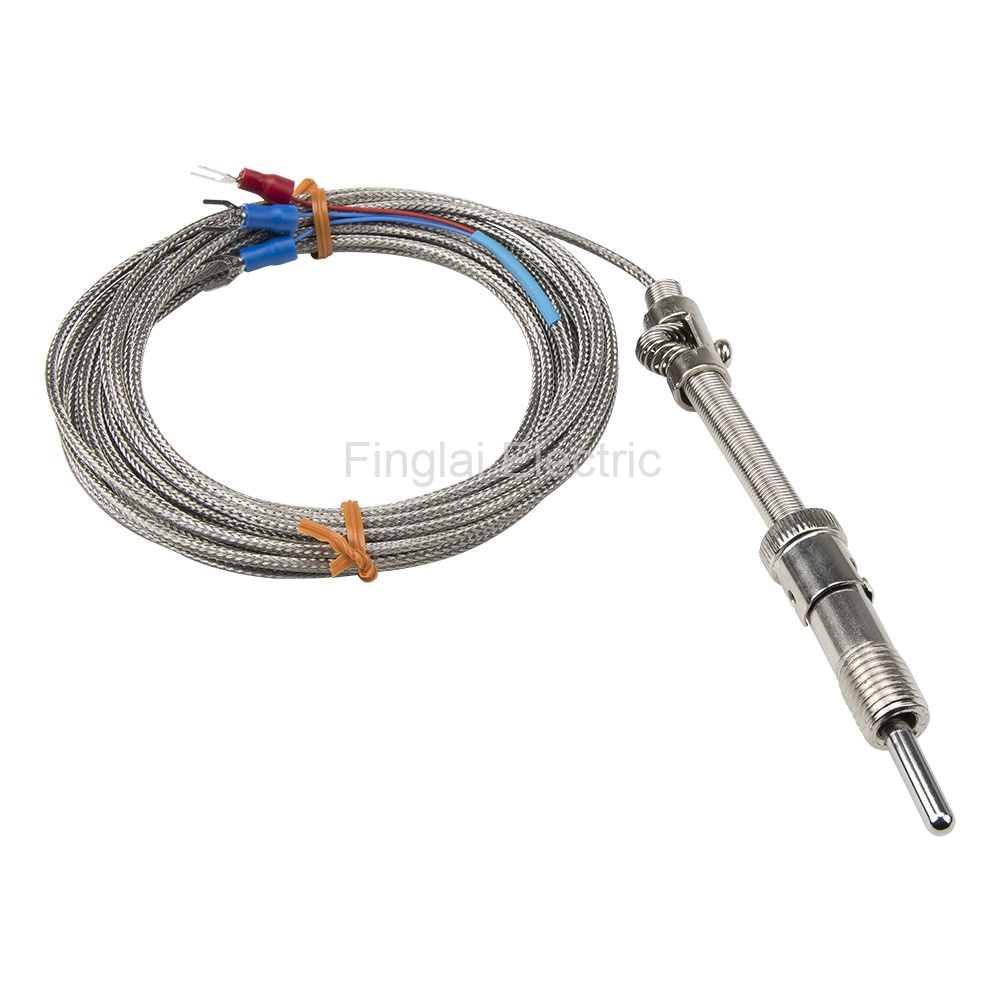

FTARS01 PT100 type A grade bayonet M12*1.5 compression spring 32mm sleeve length 5m metal screening cabel RTD temperature sensor

Product features
Mouse over to zoom in
FTARS01 PT100 type A grade bayonet M12*1.5 compression spring 32mm sleeve length 5m metal screening cabel RTD temperature sensor
Price: US $6.04 / piece
Model number: FTARS01-PT100-AM12P1.5L32M5
Product name: Temperature sensor
Accuracy:
A grade: ±(0.15℃+0.2%|t|)
US $6.04
B grade: ±(0.3℃+0.5%|t|)
US $5.65
Thread size:
M12*1.5
US $6.04
M12*1.75
Threaded sleeve length:
32mm
Cabel material:
Metal screening
Cable length:
1m
US $4.49
2m
US $4.88
5m
US $6.04
Deliver to:
Shipping:
US $5.74via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $11.78
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARS01-KWRNTK0-600 ℃US $0.9 - 2.99/ pieceOrder (14)
FTARS01-EWRETE0-400 ℃US $0.9 - 2.62/ pieceOrder (12)
FTARS01-JJ0-400 ℃US $1.73 - 3.03/ pieceOrder (7)
FTARS01-PT100WZPTPT100-50-200 ℃Visiting...
FTARS01-PT100 temperature sensor model number legend
FTARS01-PT100


Parent Model Number
L32


Threaded sleeve length
M


Cabel material
5


Cable length
General
Model number FTARS01 series
Mounting form Press spring
Accuracy K, E, J: ±0.75%t; PT100 A grade: ±(0.15℃+0.2%|t|); PT100 B grade: ±(0.3℃+0.5%|t|)
Current: A grade: ±(0.15℃+0.2%|t|)
Work type Grounded
Thread size M12x1.5, M12x1.75, M10x1.5, M8x1.25
Current: M12*1.5
Threaded sleeve length 32mm, 70mm, default is 32mm, if 70mm, need to be customzied
Current: 32mm
Probe diameter 5mm
Probe length 30mm
Cable material K, E: metal screening, fibreglass braided; PT100, J: metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 5m
Matched accessory 11.5mm ID bayonet cap adapter (included)
Thermal response time Thermocouple: <5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARS01-PT100 temperature sensor child models
No Model Number Accuracy Thread Size Threaded Sleeve Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARS01-PT100-AM12P1.5L32M1 A grade: ±(0.15℃+0.2%|t|) M12*1.5 32mm Metal screening 1m 1 US $4.49 Order
2 FTARS01-PT100-AM12P1.5L32M2 A grade: ±(0.15℃+0.2%|t|) M12*1.5 32mm Metal screening 2m 1 US $4.88 Order
3 FTARS01-PT100-AM12P1.5L32M5 A grade: ±(0.15℃+0.2%|t|) M12*1.5 32mm Metal screening 5m 1 US $6.04 Visiting...
4 FTARS01-PT100-AM12P1.75L32M2 A grade: ±(0.15℃+0.2%|t|) M12*1.75 32mm Metal screening 2m 1 US $5.45 Order
5 FTARS01-PT100-BM12P1.5L32M1 B grade: ±(0.3℃+0.5%|t|) M12*1.5 32mm Metal screening 1m 1 US $4.1 Order Unfold
6 FTARS01-PT100-BM12P1.5L32M2 B grade: ±(0.3℃+0.5%|t|) M12*1.5 32mm Metal screening 2m 1 US $4.49 Order
7 FTARS01-PT100-BM12P1.5L32M5 B grade: ±(0.3℃+0.5%|t|) M12*1.5 32mm Metal screening 5m 1 US $5.65 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
