Products >> Instruments >> Temperature sensors >> FTARR02 >> FTARR02-K >> FTARR02-K-D6S0.5
<
◄ FTARR02-K-D6M5 K cold pressing nose thermocouple temperature sensor

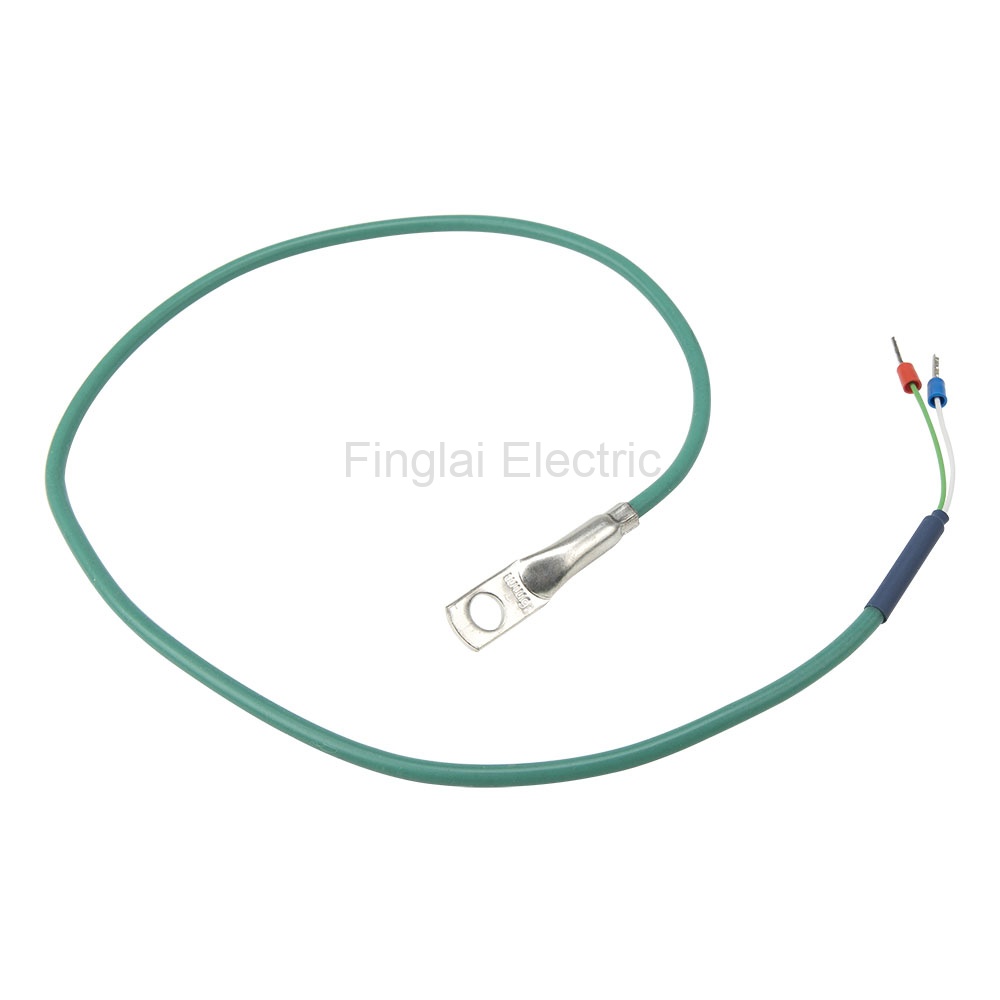

FTARR02 K type 6mm inner diameter cold pressing nose 0.5m silica gel cable cable thermocouple temperature sensor

2 sold
Product features
Price: US $2.34 / piece
Model number: FTARR02-K-D6S0.5
Product name: Thermocouple
Hole size:
Φ4Φ5
US $2.34Φ6
US $2.34
Cabel material:
Metal screeningSilica gel
US $2.34
Cable length:
1m2m3m4m5m0.5m
US $2.34
Deliver to:
Shipping:
US $5.81via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $8.15
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARR02-KKMetal screening: 0-600 ℃; Silica gel: 0-200 ℃Visiting...
FTARR02-EE0-400 ℃US $2.34 - 4.81/ pieceOrder (7)
FTARR02-JJ0-400 ℃US $3.16 - 4.79/ pieceOrder (4)
FTARR02-PT100WZPT-020PT100Metal cable: -50-450℃; Silica gel cable: -50-180℃US $4.58 - 11.49/ pieceOrder (10)
▇ FTARR02-K thermocouple model number legend
FTARR02-K
Parent Model Number
-D6
Hole size
-D4: Φ4
-D5: Φ5
-D6: Φ6
S
Cabel material
M: Metal screening
S: Silica gel
0.5
Cable length
1: 1m
2: 2m
3: 3m
4: 4m
5: 5m
0.5: 0.5m
▇ General
Model number FTARR02 series
Mounting form Ring
Accuracy K,E: ±0.4%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|), ±(0.15℃+0.2%|t|)
Hole diameter Φ4, Φ5, Φ6
Cable material Metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 0.5m
Thermal response time Thermocouple: <5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
▇ FTARR02-K thermocouple child models
No Model Number Hole Size Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARR02-K-D4M1 Φ4 Metal screening 1m 1 US $2.34 Order
2 FTARR02-K-D5M1 Φ5 Metal screening 1m 1 US $2.34 Order
3 FTARR02-K-D5S0.5 Φ5 Silica gel 0.5m 1 US $2.34 Order
4 FTARR02-K-D6M1 Φ6 Metal screening 1m 1 US $2.34 Order
5 FTARR02-K-D6M2 Φ6 Metal screening 2m 1 US $2.9 Order Unfold
6 FTARR02-K-D6M3 Φ6 Metal screening 3m 1 US $3.46 Order
7 FTARR02-K-D6M4 Φ6 Metal screening 4m 1 US $4.02 Order
8 FTARR02-K-D6M5 Φ6 Metal screening 5m 1 US $4.81 Order
9 FTARR02-K-D6S0.5 Φ6 Silica gel 0.5m 1 US $2.34 Visiting...
Packaging Details
Product quantity: 1pc
Package weight: 0.05kg
Package size: 10 x 10 x 2 cm
