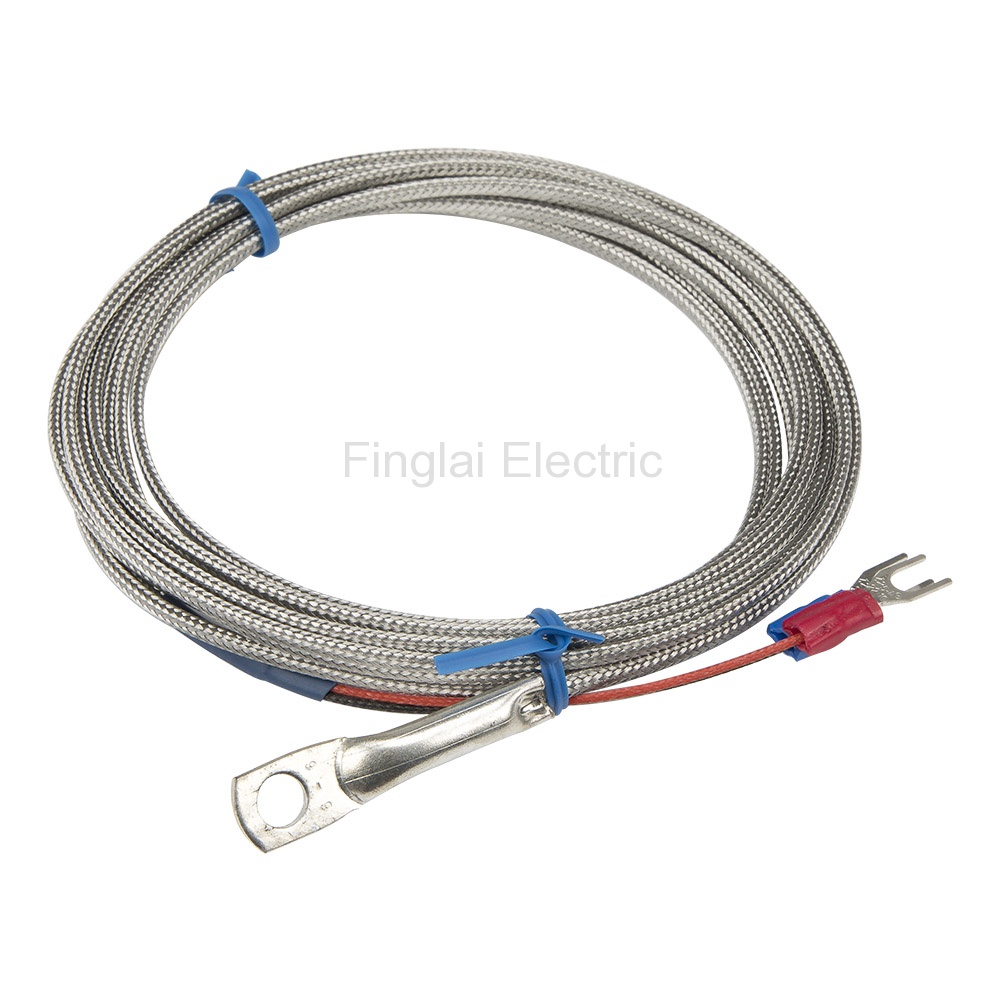

FTARR02 K type 6mm inner diameter cold pressing nose 3m metal screening cable thermocouple temperature sensor

Product features
Mouse over to zoom in
FTARR02 K type 6mm inner diameter cold pressing nose 3m metal screening cable thermocouple temperature sensor
Price: US $3.46 / piece
Model number: FTARR02-K-D6M3
Product name: Thermocouple
Hole size:
Φ4Φ5Φ6
US $3.46
Cabel material:
Metal screening
Deliver to:
Shipping:
US $5.75via
Estimated Delivery Time: 12-24 days
quantity:



Total price:US $9.21
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberSame modelTypeMeasuring rangeOnline store:
FTARR02-KK0-600 ℃Visiting...
FTARR02-EE0-400 ℃US $2.34 - 4.81/ pieceOrder (7)
FTARR02-JJ0-400 ℃US $4.02/ pieceOrder (2)
FTARR02-PT100WZPT-020PT100Metal cable: -50-450℃; Silica gel cable: -50-180℃US $4.58 - 11.49/ pieceOrder (9)
FTARR02-K thermocouple model number legend
FTARR02-K


Parent Model Number
-D6


Hole size


-D4: Φ4


-D5: Φ5


-D6: Φ6
M


Cabel material


M: Metal screening
3


Cable length


1: 1m


2: 2m


3: 3m


4: 4m


5: 5m
General
Model number FTARR02 series
Mounting form Ring
Accuracy K,E: ±0.75%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|), ±(0.15℃+0.2%|t|)
Hole diameter Φ4, Φ5, Φ6
Cable material Metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 3m
Thermal response time Thermocouple: <5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARR02-K thermocouple child models
No Model Number Hole Size Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARR02-K-D4M1 Φ4 Metal screening 1m 1 US $2.34 Order
2 FTARR02-K-D5M1 Φ5 Metal screening 1m 1 US $2.34 Order
3 FTARR02-K-D6M1 Φ6 Metal screening 1m 1 US $2.34 Order
4 FTARR02-K-D6M2 Φ6 Metal screening 2m 1 US $2.9 Order
5 FTARR02-K-D6M3 Φ6 Metal screening 3m 1 US $3.46 Visiting... Unfold
6 FTARR02-K-D6M4 Φ6 Metal screening 4m 1 US $4.02 Order
7 FTARR02-K-D6M5 Φ6 Metal screening 5m 1 US $4.81 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
