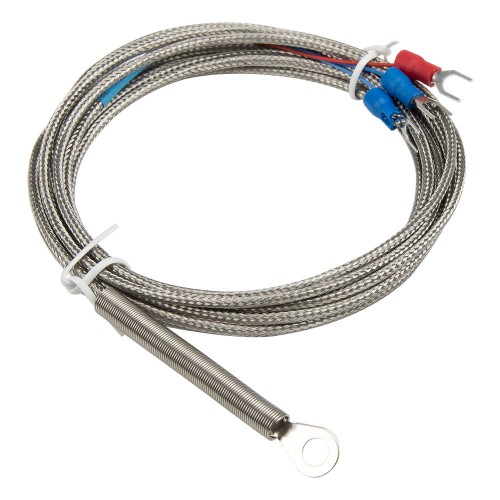

FTARR01 PT100 type 5mm inner diameter ring 3m metal screening cable RTD temperature sensor

Product features
Price: US $4.58 / piece
Model number: FTARR01-PT100-D5M3
Product name: Temperature sensor
Hole diameter:
Φ6
US $4.58Φ5
US $4.58
Cabel material:
Metal screening
Cable length:
0.5m
US $3.231m
US $3.682m
US $4.133m
US $4.585m
US $5.4810m
US $7.73
Deliver to:
Shipping:
US $4.6via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $9.18
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARR01-KK0-600℃US $1.07 - 4.36/ pieceOrder (39)
FTARR01-EE0-400℃US $1.19 - 4.36/ pieceOrder (20)
FTARR01-JJ0-400℃US $2.34 - 3.87/ pieceOrder (19)
FTARR01-PT100PT100-50-200℃Visiting...
FTARR01-PT1000PT100-50-200℃US $6.38/ pieceOrder (1)
▇ FTARR01-PT100 temperature sensor model number legend
FTARR01-PT100
Parent Model Number
-D5
Hole diameter
-D6: Φ6
-D5: Φ5
M
Cabel material
M: Metal screening
3
Cable length
0.5: 0.5m
1: 1m
2: 2m
3: 3m
5: 5m
10: 10m
▇ General
Model number FTARR01 series
Mounting form Ring
Accuracy K,E: ±0.75%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|)
Work type Thermocouple: Grounded
Hole diameter K, E, J: Φ5. Can make Φ4, Φ6, Φ8, Φ10, Φ14; PT100, PT1000: Φ5, Φ6, Φ10
Current: Φ5
Cable material K, E: metal screening, fibreglass braided; PT100, J: metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 3m
Thermal response time Thermocouple: <0.5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
▇ FTARR01-PT100 temperature sensor child models
No Model Number Hole Diameter Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARR01-PT100-D6M0.5 Φ6 Metal screening 0.5m 1 US $3.23 Order
2 FTARR01-PT100-D6M1 Φ6 Metal screening 1m 1 US $3.68 Order
3 FTARR01-PT100-D6M2 Φ6 Metal screening 2m 1 US $4.13 Order
4 FTARR01-PT100-D6M3 Φ6 Metal screening 3m 1 US $4.58 Order
5 FTARR01-PT100-D6M5 Φ6 Metal screening 5m 1 US $5.48 Order Unfold
6 FTARR01-PT100-D6M10 Φ6 Metal screening 10m 1 US $7.73 Order
7 FTARR01-PT100-D5M0.5 Φ5 Metal screening 0.5m 1 US $3.23 Order
8 FTARR01-PT100-D5M1 Φ5 Metal screening 1m 1 US $3.68 Order
9 FTARR01-PT100-D5M2 Φ5 Metal screening 2m 1 US $4.13 Order
10 FTARR01-PT100-D5M3 Φ5 Metal screening 3m 1 US $4.58 Visiting...
11 FTARR01-PT100-D5M5 Φ5 Metal screening 5m 1 US $5.48 Order
12 FTARR01-PT100-D5M10 Φ5 Metal screening 10m 1 US $7.73 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
