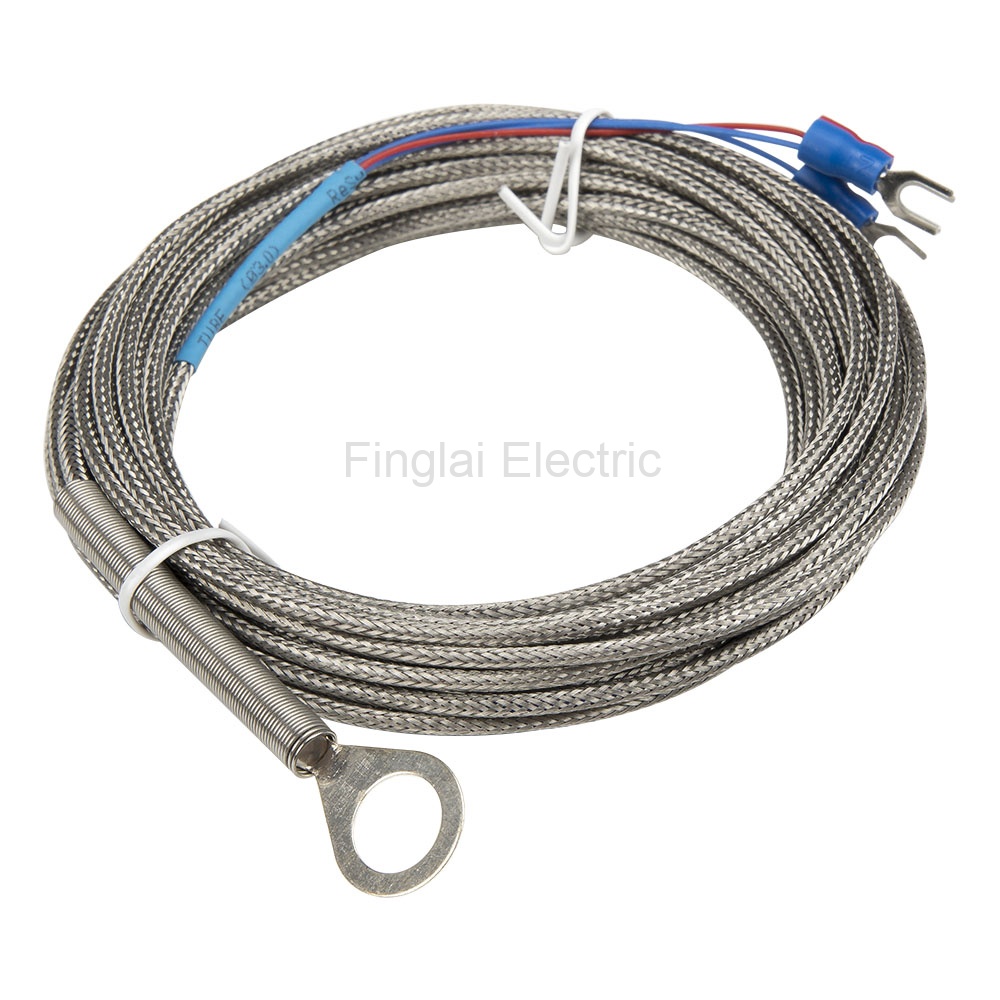

FTARR01 PT1000 type 10mm inner diameter ring 6m metal screening cable RTD temperature sensor
20 sold
Product features
Mouse over to zoom in
FTARR01 PT1000 type 10mm inner diameter ring 6m metal screening cable RTD temperature sensor
Price: US $6.38 / piece
Model number: FTARR01-PT1000-D10M6
Product name: Temperature sensor
Deliver to:
Shipping:
US $7.61via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $13.99
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARR01-K | K | 0-600℃ | US $1.07 - 4.36/ pieceOrder (41) |
| FTARR01-E | E | 0-400℃ | US $1.19 - 4.36/ pieceOrder (21) |
| FTARR01-J | J | 0-400℃ | US $2.34 - 3.87/ pieceOrder (20) |
| FTARR01-PT100 | PT100 | -50-200℃ | US $3.23 - 7.73/ pieceOrder (12) |
| FTARR01-PT1000 | PT100 | -50-200℃ | Visiting... |
▇ FTARR01-PT1000 temperature sensor model number legend
FTARR01-PT1000
Parent Model Number
▇ General
| Model number | FTARR01 series |
| Mounting form | Ring |
| Accuracy | K,E: ±0.75%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|) |
| Work type | Thermocouple: Grounded |
| Hole diameter | K, E, J: Φ5. Can make Φ4, Φ6, Φ8, Φ10, Φ14; PT100, PT1000: Φ5, Φ6, Φ10 Current: Φ10 |
| Cable material | K, E: metal screening, fibreglass braided; PT100, J: metal screening |
| Cable length | Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length Current: 6m |
| Thermal response time | Thermocouple: <0.5s; RTD: <12s |
| Insulating resistance | 5MΩ min at 20℃, RH<80% |
| Technical article | PT100 Platinum RTD temperature resistance list - 0.00385 coefficient |
▇ FTARR01-PT1000 temperature sensor submodels
| No | Model Number | Hole Diameter | Cabel Material | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARR01-PT1000-D10M6 | Φ10 | Metal screening | 6m | 1 | US $6.38 | Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.14kg
Package size: 10 x 10 x 7 cm
