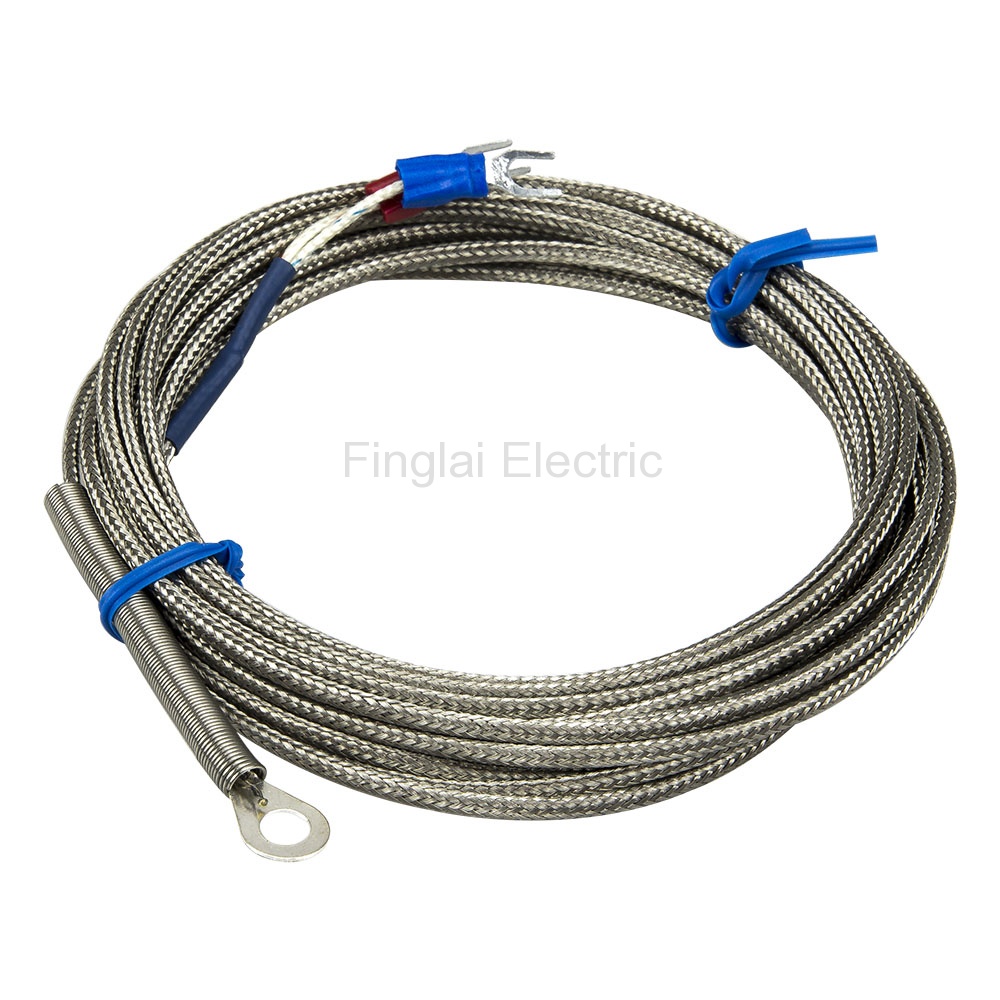

FTARR01 E type 5mm inner diameter ring 4m metal screening cable thermocouple temperature sensor

Product features
Mouse over to zoom in
FTARR01 E type 5mm inner diameter ring 4m metal screening cable thermocouple temperature sensor
Price: US $2.17 / piece
Model number: FTARR01-E-D5M4
Product name: Thermocouple
Hole diameter:
Φ5
US $2.17
Φ6
US $2.17
Φ14
Cabel material:
Metal screening
Deliver to:
Shipping:
US $4.45via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $6.62
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARR01-KK0-600℃US $1.07 - 4.36/ pieceOrder (39)
FTARR01-EE0-400℃Visiting...
FTARR01-JJ0-400℃US $2.34 - 3.87/ pieceOrder (19)
FTARR01-PT100PT100-50-200℃US $3.23 - 7.73/ pieceOrder (12)
FTARR01-PT1000PT100-50-200℃US $6.38/ pieceOrder (1)
FTARR01-E thermocouple model number legend
FTARR01-E


Parent Model Number
M


Cabel material
General
Model number FTARR01 series
Mounting form Ring
Accuracy K,E: ±0.75%t; PT100: ±(0.6℃+1%|t|), ±(0.3℃+0.5%|t|)
Work type Thermocouple: Grounded
Hole diameter K, E, J: Φ5. Can make Φ4, Φ6, Φ8, Φ10, Φ14; PT100, PT1000: Φ5, Φ6, Φ10
Current: Φ5
Cable material K, E: metal screening, fibreglass braided; PT100, J: metal screening
Cable length Standard is 2m, customer can select 1, 3 ,5 ,10m or specify the cable length
Current: 4m
Thermal response time Thermocouple: <0.5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARR01-E thermocouple child models
No Model Number Hole Diameter Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARR01-E-D5M0.5 Φ5 Metal screening 0.5m 1 US $1.19 Order
2 FTARR01-E-D5M1 Φ5 Metal screening 1m 1 US $1.19 Order
3 FTARR01-E-D5M2 Φ5 Metal screening 2m 1 US $1.34 Order
4 FTARR01-E-D5M2.5 Φ5 Metal screening 2.5m 1 US $1.88 Order
5 FTARR01-E-D5M3 Φ5 Metal screening 3m 1 US $1.95 Order Unfold
6 FTARR01-E-D5M4 Φ5 Metal screening 4m 1 US $2.17 Visiting...
7 FTARR01-E-D5M5 Φ5 Metal screening 5m 1 US $2.62 Order
8 FTARR01-E-D5M7 Φ5 Metal screening 7m 1 US $3.68 Order
9 FTARR01-E-D5M10 Φ5 Metal screening 10m 1 US $4.36 Order
10 FTARR01-E-D6M0.5 Φ6 Metal screening 0.5m 1 US $1.19 Order
11 FTARR01-E-D6M1 Φ6 Metal screening 1m 1 US $1.19 Order
12 FTARR01-E-D6M2 Φ6 Metal screening 2m 1 US $1.34 Order
13 FTARR01-E-D6M2.5 Φ6 Metal screening 2.5m 1 US $1.88 Order
14 FTARR01-E-D6M3 Φ6 Metal screening 3m 1 US $1.95 Order
15 FTARR01-E-D6M4 Φ6 Metal screening 4m 1 US $2.17 Order
16 FTARR01-E-D6M5 Φ6 Metal screening 5m 1 US $2.62 Order
17 FTARR01-E-D6M7 Φ6 Metal screening 7m 1 US $3.68 Order
18 FTARR01-E-D6M10 Φ6 Metal screening 10m 1 US $4.36 Order
19 FTARR01-E-D14M1 Φ14 Metal screening 1m 1 US $2.12 Order
20 FTARR01-E-D14M2 Φ14 Metal screening 2m 1 US $2.63 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.07kg
Package size: 10 x 10 x 3 cm
