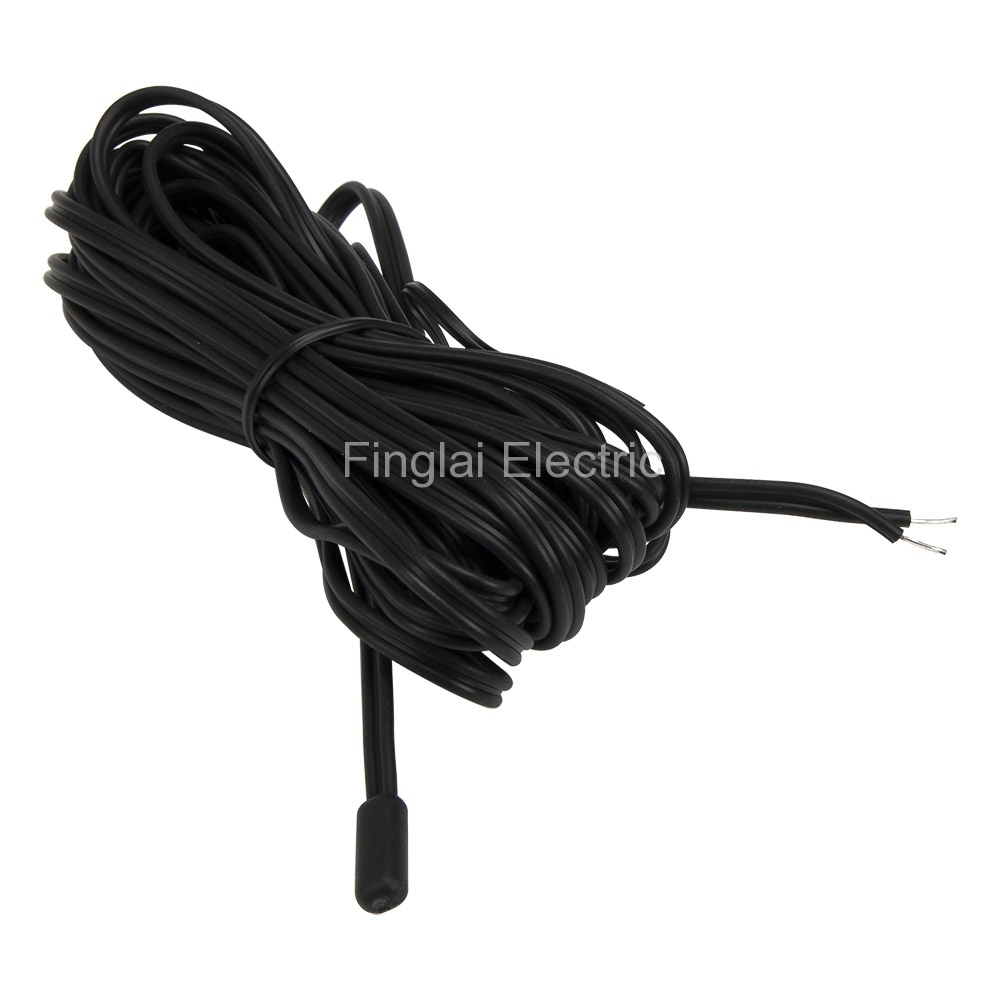

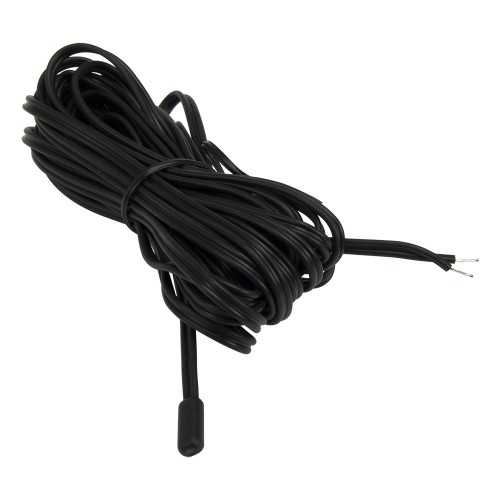

FTARP13 NTC 5m cable plastic probe 10K resistance 3435K B value RTD temperature sensor for STC-9200 STC-1000
Product features
Mouse over to zoom in
FTARP13 NTC 5m cable plastic probe 10K resistance 3435K B value RTD temperature sensor for STC-9200 STC-1000
Price: US $3.64 / piece
Model number: FTARP13-NTC-PR10B3435P5
Product name: NTC temperature sensor
Deliver to:
Shipping:
US $5.74via
Estimated Delivery Time: 9-15 days
Total price:US $9.38
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store:
|
| FTARP13-NTC-P | Plastic head NTC | -50-110 ℃ | Visiting... |
| FTARP13-NTC-S | Metal head NTC | -50-110 ℃ | US $2.07 - 3.64/ pieceOrder (3) |
▇ FTARP13-NTC-P NTC temperature sensor model number legend
▇ General
| Model number |
FTARP13 series |
| Mounting form |
probe |
| Resistacne |
10KΩ at 25℃ |
| B value |
3435K at 25/85℃ |
| Probe material |
Plastic; Stainless steel |
| Probe diameter |
6mm |
| Probe length |
Stainless steel: 34mm; Plastic: 18mm |
| Cable material |
Plastic |
| Cable length |
2m, 5m, can be customized
Current: 5m |
| Matched instrument |
STC-9200, STC-1000 |
| Insulating resistance |
20MΩ min |
| Purpose |
For defrost temperature controller |
▇ FTARP13-NTC-P NTC temperature sensor child models
| No |
Model Number |
Resistance |
B Value |
Cable Length |
MOQ |
Unit Price |
Related Product |
| 1 |
FTARP13-NTC-PR10B3435P2 |
10K |
3435 |
2m |
1 |
US $1.84 |
Order |
| 2 |
FTARP13-NTC-PR10B3435P5 |
10K |
3435 |
5m |
1 |
US $3.64 |
Visiting... |
FTARP13 series NTC temperature sensor temperature VS resistance characteristic
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
