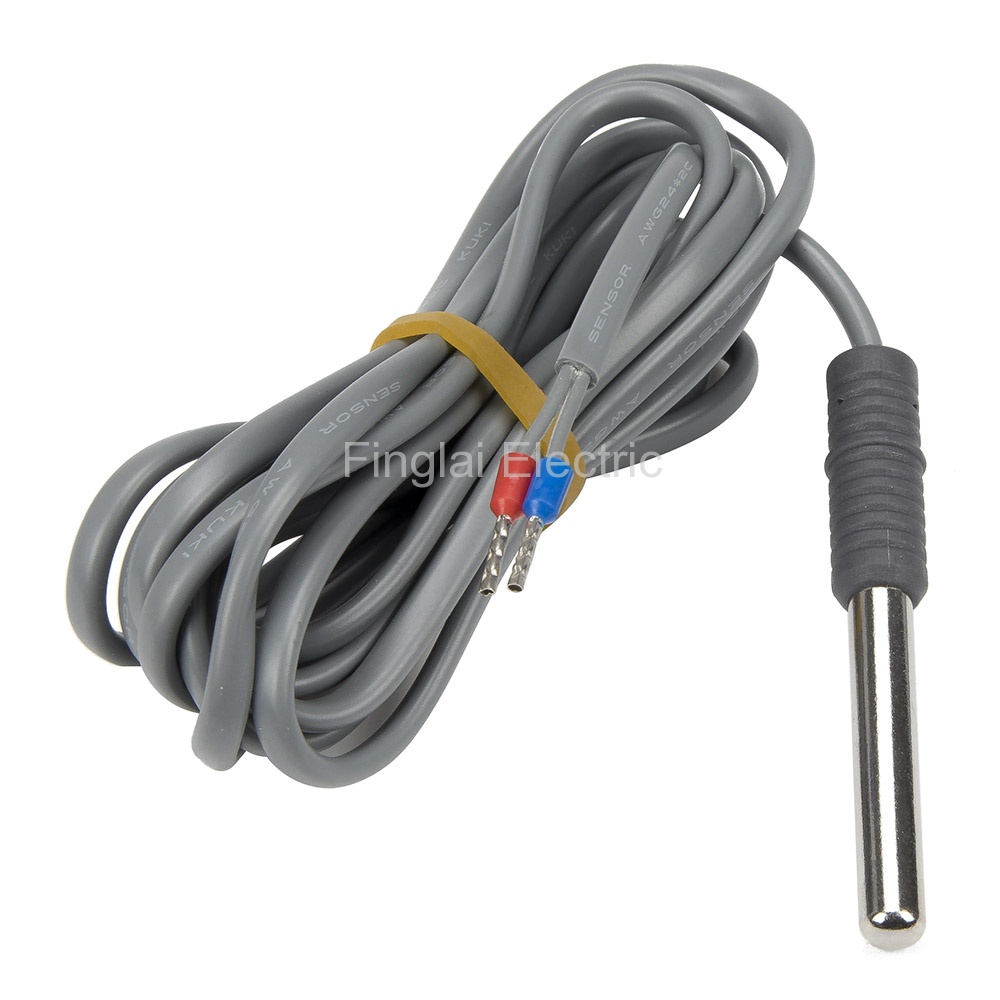

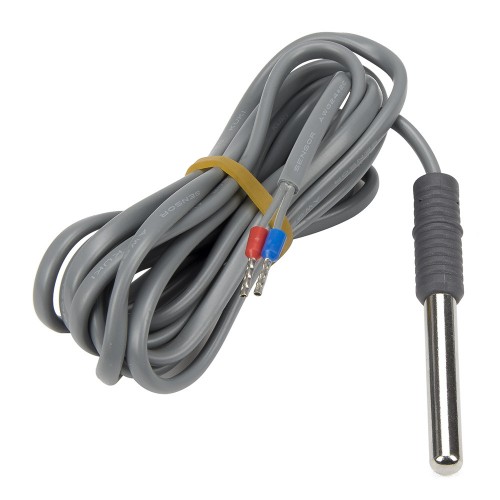

FTARP13 NTC 2m cable stainless steel waterproof probe 10K resistance 3435K B value RTD temperature sensor for STC-9200 STC-1000
10 sold
Product features
Mouse over to zoom in
FTARP13 NTC 2m cable stainless steel waterproof probe 10K resistance 3435K B value RTD temperature sensor for STC-9200 STC-1000
Price: US $2.07 / piece
Model number: FTARP13-NTC-SR10B3435P2
Product name: NTC temperature sensor
Deliver to:
Shipping:
US $6.95via
Estimated Delivery Time: 9-17 days
Total price:US $9.02
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Online store: |
| FTARP13-NTC-P | Plastic head NTC | -50-110 ℃ | US $1.84 - 3.64/ pieceOrder (3) |
| FTARP13-NTC-S | Metal head NTC | -50-110 ℃ | Visiting... |
▇ FTARP13-NTC-S NTC temperature sensor model number legend
FTARP13-NTC-S
Parent Model Number
▇ General
| Model number | FTARP13 series |
| Mounting form | probe |
| Resistacne | 10KΩ at 25℃ |
| B value | 3435K at 25/85℃ |
| Probe material | Plastic; Stainless steel |
| Probe diameter | 6mm |
| Probe length | Stainless steel: 34mm; Plastic: 18mm |
| Cable material | Plastic |
| Cable length | 2m, 5m, can be customized Current: 2m |
| Matched instrument | STC-9200, STC-1000 |
| Insulating resistance | 20MΩ min |
| Purpose | For defrost temperature controller |
▇ FTARP13-NTC-S NTC temperature sensor child models
| No | Model Number | Resistance | B Value | Cable Length | MOQ | Unit Price | Related Product |
| 1 | FTARP13-NTC-SR10B3435P2 | 10K | 3435 | 2m | 1 | US $2.07 | Visiting... |
| 2 | FTARP13-NTC-SR10B3435P3.5 | 10K | 3435 | 3.5m | 1 | US $2.76 | Order |
| 3 | FTARP13-NTC-SR10B3435P5 | 10K | 3435 | 5m | 1 | US $3.64 | Order |
FTARP13 series NTC temperature sensor temperature VS resistance characteristic
Packaging Details
Product quantity: 1pc
Package weight: 0.09kg
Package size: 10 x 10 x 4 cm
