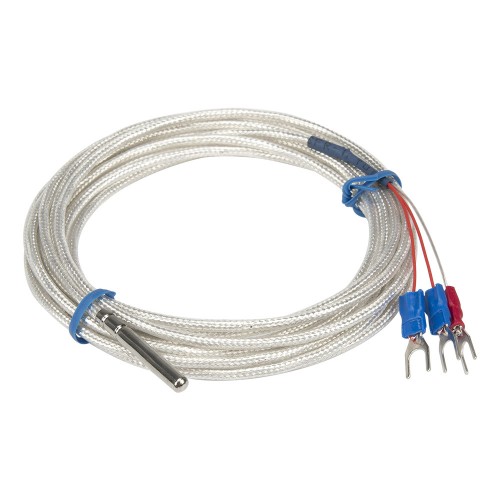

FTARP10 PT100 2B grade 4*30mm roller groove probe 3m FEP cable waterproof oilproof anticorrosive type RTD temperature sensor

Product features
Mouse over to zoom in
FTARP10 PT100 2B grade 4*30mm roller groove probe 3m FEP cable waterproof oilproof anticorrosive type RTD temperature sensor
Price: US $6.15 / piece
Model number: FTARP10-PT100-2BD4L30P3
Product name: Temperature sensor
Accuracy:
A grade: ±(0.15℃+0.2%|t|)
US $8.4B grade: ±(0.3℃+0.5%|t|)
US $6.832B grade: ±(0.6℃+1%|t|)
US $6.151/3B grade: ±(0.1℃+0.17%|t|)
Probe diameter:
4mm
US $6.155mm6mm
Probe length:
30mm
US $6.1515mm
Cabel material:
FEP silver plated copper
Cable length:
0.5m
US $3.911m
US $4.131.5m
US $4.582m
US $5.033m
US $6.154m
US $7.285m
US $8.410m
Deliver to:
Shipping:
US $7.53via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $13.68
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARP10-PT100PT100-50-200 ℃Visiting...
FTARP10-PT1000PT1000-50-200 ℃US $5.93 - 10.81/ pieceOrder (3)
▇ FTARP10-PT100 temperature sensor model number legend
▇ General
Model number FTARP10 series
Mounting form Roller groove probe; Polish rod probe
Accuracy A grade: ±(0.15℃+0.2%|t|); B grade: ±(0.3℃+0.5%|t|); 2B grade: ±(0.6℃+1%|t|); 1/3B grade: ±(0.1℃+0.17%|t|)
Current: 2B grade: ±(0.6℃+1%|t|)
Probe material Stainless steel
Probe diameter 4mm, 5mm, 6mm, can be customzied
Current: 4mm
Probe length 30mm, 15mm, can be customzied
Current: 30mm
Cable material FEP silver plated copper (Fit to anti water, anti corrosive and anti acid, can  resist 180℃)
Cable length Standard is 2m, customer can select 0.5, 1, 1.5, 2, 3, 4, 5 or specify the cable length
Current: 3m
Thermal response time <8s
Insulating resistance 20MΩ min
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
▇ FTARP10-PT100 temperature sensor child models
No Model Number Accuracy Probe Diameter Probe Length Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARP10-PT100-AD4L30P0.5 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 0.5m 1 US $5.03 Order
2 FTARP10-PT100-AD4L30P1 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 1m 1 US $6.15 Order
3 FTARP10-PT100-AD4L30P1.5 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 1.5m 1 US $6.83 Order
4 FTARP10-PT100-AD4L30P2 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 2m 1 US $7.28 Order
5 FTARP10-PT100-AD4L30P3 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 3m 1 US $8.4 Order Unfold
6 FTARP10-PT100-AD4L30P4 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 4m 1 US $9.52 Order
7 FTARP10-PT100-AD4L30P5 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 5m 1 US $10.42 Order
8 FTARP10-PT100-AD4L30P10 A grade: ±(0.15℃+0.2%|t|) 4mm 30mm FEP silver plated copper 10m 1 US $15.59 Order
9 FTARP10-PT100-AD4L15P0.5 A grade: ±(0.15℃+0.2%|t|) 4mm 15mm FEP silver plated copper 0.5m 1 US $5.68 Order
10 FTARP10-PT100-AD4L15P1 A grade: ±(0.15℃+0.2%|t|) 4mm 15mm FEP silver plated copper 1m 1 US $6.61 Order
11 FTARP10-PT100-BD4L30P0.5 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm FEP silver plated copper 0.5m 1 US $4.58 Order
12 FTARP10-PT100-BD4L30P1 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm FEP silver plated copper 1m 1 US $4.58 Order
13 FTARP10-PT100-BD4L30P1.5 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm FEP silver plated copper 1.5m 1 US $5.03 Order
14 FTARP10-PT100-BD4L30P2 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm FEP silver plated copper 2m 1 US $5.48 Order
15 FTARP10-PT100-BD4L30P3 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm FEP silver plated copper 3m 1 US $6.83 Order
16 FTARP10-PT100-BD4L30P4 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm FEP silver plated copper 4m 1 US $7.73 Order
17 FTARP10-PT100-BD4L30P5 B grade: ±(0.3℃+0.5%|t|) 4mm 30mm FEP silver plated copper 5m 1 US $8.85 Order
18 FTARP10-PT100-2BD4L30P0.5 2B grade: ±(0.6℃+1%|t|) 4mm 30mm FEP silver plated copper 0.5m 1 US $3.91 Order
19 FTARP10-PT100-2BD4L30P1 2B grade: ±(0.6℃+1%|t|) 4mm 30mm FEP silver plated copper 1m 1 US $4.13 Order
20 FTARP10-PT100-2BD4L30P1.5 2B grade: ±(0.6℃+1%|t|) 4mm 30mm FEP silver plated copper 1.5m 1 US $4.58 Order
21 FTARP10-PT100-2BD4L30P2 2B grade: ±(0.6℃+1%|t|) 4mm 30mm FEP silver plated copper 2m 1 US $5.03 Order
22 FTARP10-PT100-2BD4L30P3 2B grade: ±(0.6℃+1%|t|) 4mm 30mm FEP silver plated copper 3m 1 US $6.15 Visiting...
23 FTARP10-PT100-2BD4L30P4 2B grade: ±(0.6℃+1%|t|) 4mm 30mm FEP silver plated copper 4m 1 US $7.28 Order
24 FTARP10-PT100-2BD4L30P5 2B grade: ±(0.6℃+1%|t|) 4mm 30mm FEP silver plated copper 5m 1 US $8.4 Order
25 FTARP10-PT100-1/3BD4L30P1 1/3B grade: ±(0.1℃+0.17%|t|) 4mm 30mm FEP silver plated copper 1m 1 US $11.58 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.11kg
Package size: 10 x 10 x 5 cm
