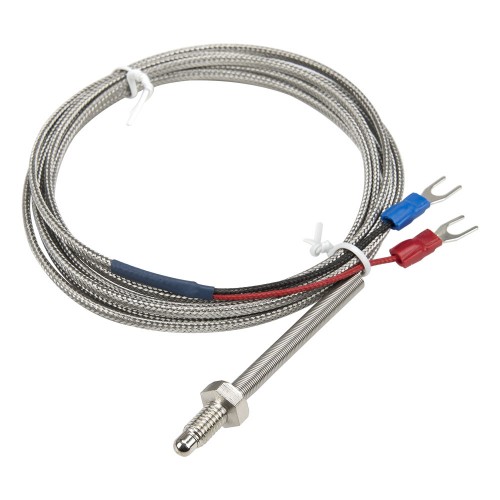

FTARB02-K-M6HM2 K bolt spring protected thermocouple temperature sensor with M6 thread size, 2m cable length

Product features
Mouse over to zoom in
FTARB02 K type bolt head 2m cable spring protected thermocouple temperature sensor
Price: US $2.02 / piece
Model number: FTARB02-K-M6HM2
Product name: Thermocouple
Thread size:
M6
US $2.02
M8
Cabel material:
high temperature metal screening
Deliver to:
Shipping:
US $5.45via
Estimated Delivery Time: 12-20 days
quantity:



Total price:US $7.47
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberTypeMeasuring rangeOnline store:
FTARB02-KK0-600℃Visiting...
FTARB02-EE0-400℃US $1.46 - 6.1/ pieceOrder (8)
FTARB02-JJ0-400℃
FTARB02-PT100PT100Metal calbe: -50-450℃; PTFE cable: -50-260℃US $3.97 - 11.16/ pieceOrder (45)
FTARB02-K thermocouple model number legend
FTARB02-K


Parent Model Number
-M6


Thread size


-M6: M6


-M8: M8
HM


Cabel material


HM: high temperature metal screening
2


Cable length


0.5: 0.5m


1: 1m


2: 2m


3: 3m


4: 4m


5: 5m


7: 7m


8: 8m


10: 10m
General
Model number FTARB02 series
Mounting form Bolt
Accuracy 2B grade: ±(0.6℃+1%|t|); B grade: ±(0.3℃+0.5%|t|); A grade: ±(0.15℃+0.2%|t|); 1/3B grade: ±(0.1℃+0.17%|t|)
Thread size M6. Can make M8, M10, M12
Current: M6
Cabel material High Temperature resistance metal screening; High quality PTFE silver plated copper
Current: high temperature metal screening
Cable length Standard is 2m, customer can select 0.5, 1, 3, 4, 5 , 7, 8, 10m or customized
Current: 2m
Thermal response time Thermocouple: <0.5s; RTD: <12s
Insulating resistance 5MΩ min at 20℃, RH<80%
Technical article PT100 Platinum RTD temperature resistance list - 0.00385 coefficient
FTARB02-K thermocouple child models
No Model Number Thread Size Cabel Material Cable Length MOQ Unit Price Related Product
1 FTARB02-K-M6HM0.5 M6 high temperature metal screening 0.5m 1 US $1.46 Order
2 FTARB02-K-M6HM1 M6 high temperature metal screening 1m 1 US $1.46 Order
3 FTARB02-K-M6HM2 M6 high temperature metal screening 2m 1 US $2.02 Visiting...
4 FTARB02-K-M6HM3 M6 high temperature metal screening 3m 1 US $2.74 Order
5 FTARB02-K-M6HM4 M6 high temperature metal screening 4m 1 US $3.3 Order Unfold
6 FTARB02-K-M6HM5 M6 high temperature metal screening 5m 1 US $4.19 Order
7 FTARB02-K-M6HM7 M6 high temperature metal screening 7m 1 US $4.87 Order
8 FTARB02-K-M6HM8 M6 high temperature metal screening 8m 1 US $5.43 Order
9 FTARB02-K-M6HM10 M6 high temperature metal screening 10m 1 US $6.1 Order
10 FTARB02-K-M8HM1 M8 high temperature metal screening 1m 1 US $2.17 Order
Packaging Details
Package weight: 0.07kg
Package size: 10 x 10 x 3 cm
Product quantity: 1pcs
