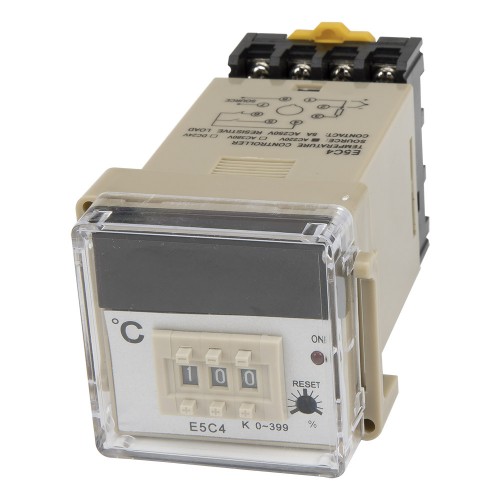

E5C4 48*48mm AC 220V relay main output and K thermocouple input digital temperature controller with socket base
Product features
Mouse over to zoom in
E5C4 48*48mm AC 220V relay main output and K thermocouple input digital temperature controller with socket base
Price: US $7.87 / piece
Model number: E5C4-R20K-S220VAC
Product name: Digital temperature controller
Control model:
ON/OFFDeliver to:
Shipping:
US $10.46via
Estimated Delivery Time: 9-15 days
Total price:US $18.33
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | External dimensions | Perforation dimensions | Online store: |
E5C4 | 48x48x100 mm | 44 10x44 10 mm | Visiting... |
▇ E5C4 digital temperature controller model number legend
E5C4
Parent Model Number
▇ General
Model number | E5C4 |
Accuracy | ±1%F.S±1℃ |
Supply voltage | 110Vac, 220Vac, 50/60Hz Current: 220VAC |
Input type | K, J |
Output type | Electromagnetic relay, SSR (not in one product, need to select) Current: Electromagnetic relay |
Power consumption | Less than 5 VA |
Control method | ON/OFF Control |
Setting method | Dial switch |
Indication method | 7-segment 3-digital display and LED indication |
Alarms | No alarm |
Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
Operating humidity | 85% RH max, non-condensing |
▇ Output type and description
Electromagnetic relay | Contact rating: 5A at 250Vac |
Solid state relay | Contact rating can be selected, order separately (Single phase 40A, Three phase 40A) |
▇ Input type and measuring range
K | 0-399 ℃ (Bolt, Press spring, Ring, M12 probe, M8 probe, Flexible probe, Armor high temperature resistant, Customized thread probe) |
▇ E5C4 digital temperature controller child models
No | Model Number | Output Type | Control Model | Input Type And Range | Socket | Supply Voltage | MOQ | Unit Price | Related Product |
1 | E5C4-R20K-S220VAC | Electromagnetic relay | ON/OFF | K (0-399℃) | With socket | 220VAC | 1 | US $7.87 | Visiting... |
2 | E5C4-R20K-S110VAC | Electromagnetic relay | ON/OFF | K (0-399℃) | With socket | 110VAC | 1 | US $7.87 | Order |
3 | E5C4-R20K-N220VAC | Electromagnetic relay | ON/OFF | K (0-399℃) | Without socket | 220VAC | 1 | US $7.65 | Order |
4 | E5C4-R20K-N110VAC | Electromagnetic relay | ON/OFF | K (0-399℃) | Without socket | 110VAC | 1 | US $7.65 | Order |
5 | E5C4-R20P-S220VAC | Electromagnetic relay | ON/OFF | PT100 | With socket | 220VAC | 1 | US $7.87 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.35kg
Package size: 13 x 8 x 9 cm
