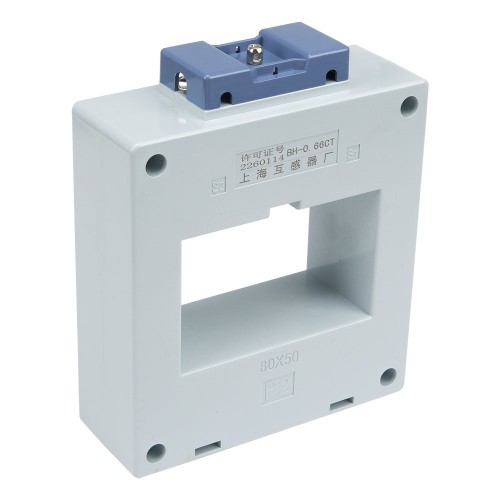

BH-0.66CT-80 series current transformers
Main child models
Mouse over to zoom in
Price: US $6.6 / piece
Model number: BH-0.66CT-80-3-1000/5
Product name: Current transformer
Product description
▇ Model number and description
| Model number | Same model | Hole size | Rated primary current | Rated secondary current | Rated burden (VA) | Online store: |
| BH-0.66-20 | BH-0.66CT-20 | 20mm | 75/100/150A | 5A | 3.75, 5-3.75 | |
| BH-0.66CT-30 | BH-0.66-30 | 30mm | 20/30/50/75/100/150/200/250/300/400 | 5A | 5-3.75 | US $2.56 - 2.79/ pieceOrder (15) |
| BH-0.66-40 | BH-0.66CT-40 | 40mm | 150/200/250/300/400/500/600 | 5A | 5-3.75, 10-3.75 | |
| BH-0.66-50 | BH-0.66CT-50 | 50mm | 300/400/500/600/750/800/1000 | 5A | 5-3.75, 10-3.75 | |
| BH-0.66-60 | BH-0.66CT-60 | 60mm | 300/400/500/600/750/800/1000/1200/1500/2000 | 5A | 5-3.75, 10-3.75, 15-3.75 | |
| BH-0.66CT-80 | BH-0.66-80 | 80mm | 500/600/750/800/1000/1200/1500/2000 | 5A | 5-3.75, 10-3.75, 15-3.75 | Visiting... |
| BH-0.66-100 | BH-0.66CT-100 | 100mm | 750/800/1000/1200/1500/2000/2500/3000 | 5A | 10-3.75, 15-3.75, 20-3.75 | |
| BH-0.66-120 | BH-0.66CT-120 | 120mm | 1500/2000/2500/3000/4000/5000 | 5A | 15-3.75, 20-3.75 |
▇ BH-0.66CT-80 current transformer model number legend
BH-0.66CT-80
Parent Model Number
▇ General
| Model number | BH-0.66 series |
| Rated voltage | ≤0.66KV |
| Accuracy class | 0.2, 0.5, 0.5S, 3 |
| Matched meter | 6L2, 99T1, SQ-72, SQ-96 |
| Dielectric strength | 3KV/1min |
| Alias name | BH-0.66 series mutual inductor |
▇ BH-0.66CT-80 current transformer child models
| No | Model Number | Matched Copper Plate Quantity | Primary Current | Secondary Current | MOQ | Unit Price |
| 1 | BH-0.66CT-80-1-1000/5 | 1 | 1000A | 5A | 1 | US $5.48 |
| 2 | BH-0.66CT-80-3-1000/5 | 3 (80x50) | 1000A | 5A | 1 | US $6.6 |
