SQ-72-A100/5 72*72mm current transformer type 100/5A pointer AC ammeter SQ-72 series analog AMP meter 72x72 mm size

Product features
Mouse over to zoom in

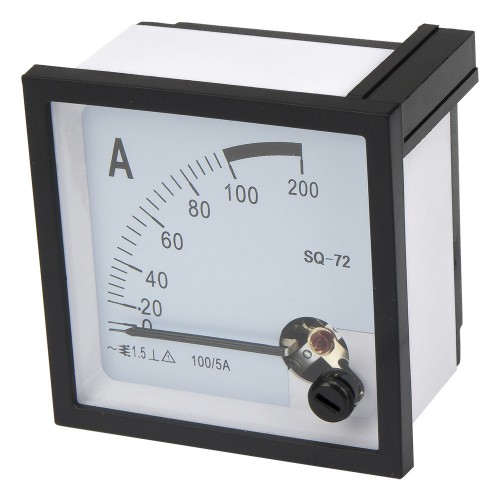

SQ-72-A100/5 72*72mm current transformer type 100/5A pointer AC ammeter SQ-72 series analog AMP meter 72x72 mm size
Price: US $3.25 / piece
Model number: SQ-72-A100/5
Product name: Pointer ammeter
Deliver to:
Shipping:
US $6.58via
Sorry, this item is no longer available!
Quantity:
Total price:US $9.83
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
Model numberSame modelTypeRangeOnline store:
SQ-72-ACZ-72-AAC AmmeterConnect directly: 1, 2, 3, 10, 15, 20, 30, 50A;
Need current transformer: 10/5, 20/5, 30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5A		Visiting...
SQ-72-DADC AmmeterConnect directly: 1, 2, 3, 5, 10, 15, 20A;
Need shunt: 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 800, 1000, 1500A		US $3.25/ pieceOrder (22)
SQ-72-VCZ-72-VAC VoltmeterConnect directly: 5, 10, 15, 20, 30, 50, 100, 150, 250, 300, 450, 500, 600, 750, 1000V
Need potential transformer: 1K/100, 10K/100, 6K/100V		US $3.25/ pieceOrder (18)
▇ SQ-72-A pointer ammeter model number legend
▇ General
Model number SQ-72
Accuracy level 1.5 level and 2.5 level
External dimensions 72x72 mm
Perforation dimensions 67 10x67 10 mm
Matched current transformer BH-0.66-30
Matched shunt FL-2
Resistance to mechanical forces Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength 2KV 50Hz for 1min
Voltage affection The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position Vertical
Operating temperature -20 to 40 ℃ (-4 to 104 ℉)
Operating humidity 85% RH max, non-condensing
▇ SQ-72-A pointer ammeter child models
No Model Number Measured Range MOQ Unit Price Related Product
1 SQ-72-A1 1A 1 US $3.25 Order
2 SQ-72-A2 2A 1 US $3.25 Order
3 SQ-72-A3 3A 1 US $3.25 Order
4 SQ-72-A5 5A 1 US $3.25 Order
5 SQ-72-A10 10A 1 US $3.25 Order Unfold
6 SQ-72-A15 15A 1 US $3.25 Order
7 SQ-72-A20 20A 1 US $3.25 Order
8 SQ-72-A30 30A 1 US $3.25 Order
9 SQ-72-A40 40A 1 US $3.25 Order
10 SQ-72-A50 50A (Connect directly) 1 US $3.25 Order
11 SQ-72-A20/5 20/5A (Need current transformer) 1 US $2.48 Order
12 SQ-72-A30/5 30/5A 1 US $2.48 Order
13 SQ-72-A50/5 50/5A 1 US $3.25 Order
14 SQ-72-A75/5 75/5A 1 US $3.25 Order
15 SQ-72-A100/5 100/5A 1 US $3.25 Visiting...
16 SQ-72-A150/5 150/5A 1 US $3.25 Order
17 SQ-72-A200/5 200/5A 1 US $3.25 Order
18 SQ-72-A250/5 250/5A 1 US $3.25 Order
19 SQ-72-A300/5 300/5A 1 US $3.25 Order
20 SQ-72-A400/5 400/5A 1 US $3.25 Order
21 SQ-72-A500/5 500/5A 1 US $3.25 Order
22 SQ-72-A600/5 600/5A 1 US $3.25 Order
23 SQ-72-A800/5 800/5A 1 US $3.25 Order
24 SQ-72-A1000/5 1000/5A 1 US $3.25 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.2kg
Package size: 13 x 8 x 9 cm
