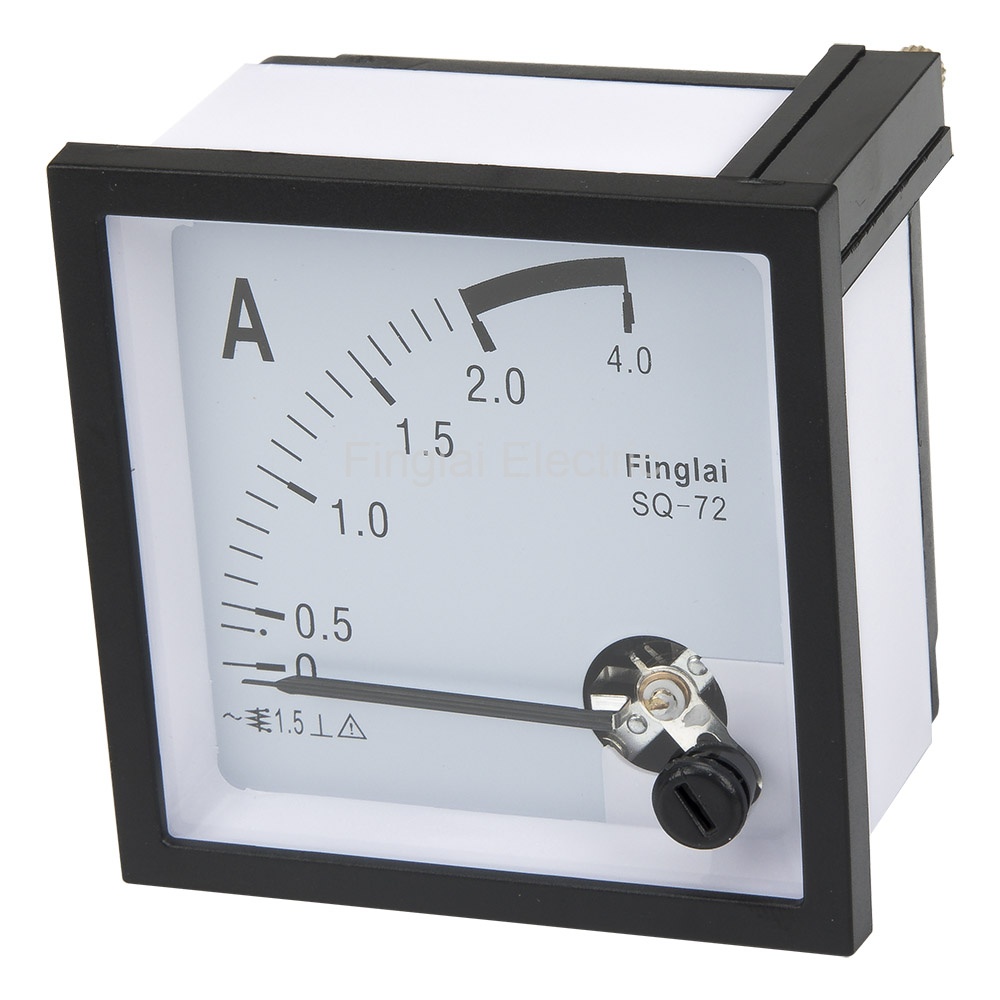

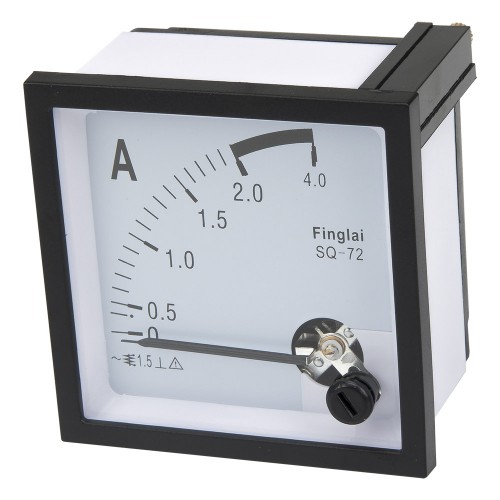

SQ-72-A2 72*72mm 2A pointer AC ammeter SQ-72 series analog AMP meter 72x72 mm size
Product features
Mouse over to zoom in
SQ-72-A2 72*72mm 2A pointer AC ammeter SQ-72 series analog AMP meter 72x72 mm size
Price: US $3.91 / piece
Model number: SQ-72-A2
Product name: Pointer ammeter
Measured range:
1AUS $3.912A
US $3.913A
US $3.915A
US $3.9110A
US $3.9115A
US $3.9120A
US $3.9130A
US $3.9150A (Connect directly)
US $4.5850/5A (Need current transformer)
US $3.9175/5A
US $3.91100/5A
US $3.91150/5A
US $3.91200/5A
US $3.91300/5A
US $3.91400/5A
US $3.91500/5A
US $3.91600/5A
US $3.91800/5A
US $3.911000/5A
US $4.36
Deliver to:
Shipping:
US $7.76via
Estimated Delivery Time: 9-15 days
Total price:US $11.67
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Same model | Type | Range | Online store: |
| SQ-72-A | CZ-72-A | AC Ammeter | Connect directly: 1, 2, 3, 10, 15, 20, 30, 50A; Need current transformer: 10/5, 20/5, 30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5A | Visiting... |
| SQ-72-DA | DC Ammeter | Connect directly: 1, 2, 3, 5, 10, 15, 20A; Need shunt: 20, 30, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 800, 1000, 1500A | US $4.13 - 4.58/ pieceOrder (22) | |
| SQ-72-V | CZ-72-V | AC Voltmeter | Connect directly: 5, 10, 15, 20, 30, 50, 100, 150, 250, 300, 450, 500, 600, 750, 1000V Need potential transformer: 1K/100, 10K/100, 6K/100V | US $3.91 - 5.03/ pieceOrder (18) |
▇ SQ-72-A pointer ammeter model number legend
SQ-72-A
Parent Model Number
▇ General
| Model number | SQ-72 |
| Accuracy level | 1.5 level and 2.5 level |
| External dimensions | 72x72 mm |
| Perforation dimensions | 67 10x67 10 mm |
| Matched current transformer | BH-0.66-30 |
| Matched shunt | FL-2 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity | 85% RH max, non-condensing |
▇ SQ-72-A pointer ammeter child models
Packaging Details
Product quantity: 1pc
Package weight: 0.2kg
Package size: 13 x 8 x 9 cm
