SQ-72-A150/5 72*72mm current transformer type 150/5A pointer AC ammeter SQ-72 series analog AMP meter 72x72 mm size
Product features
Mouse over to zoom in

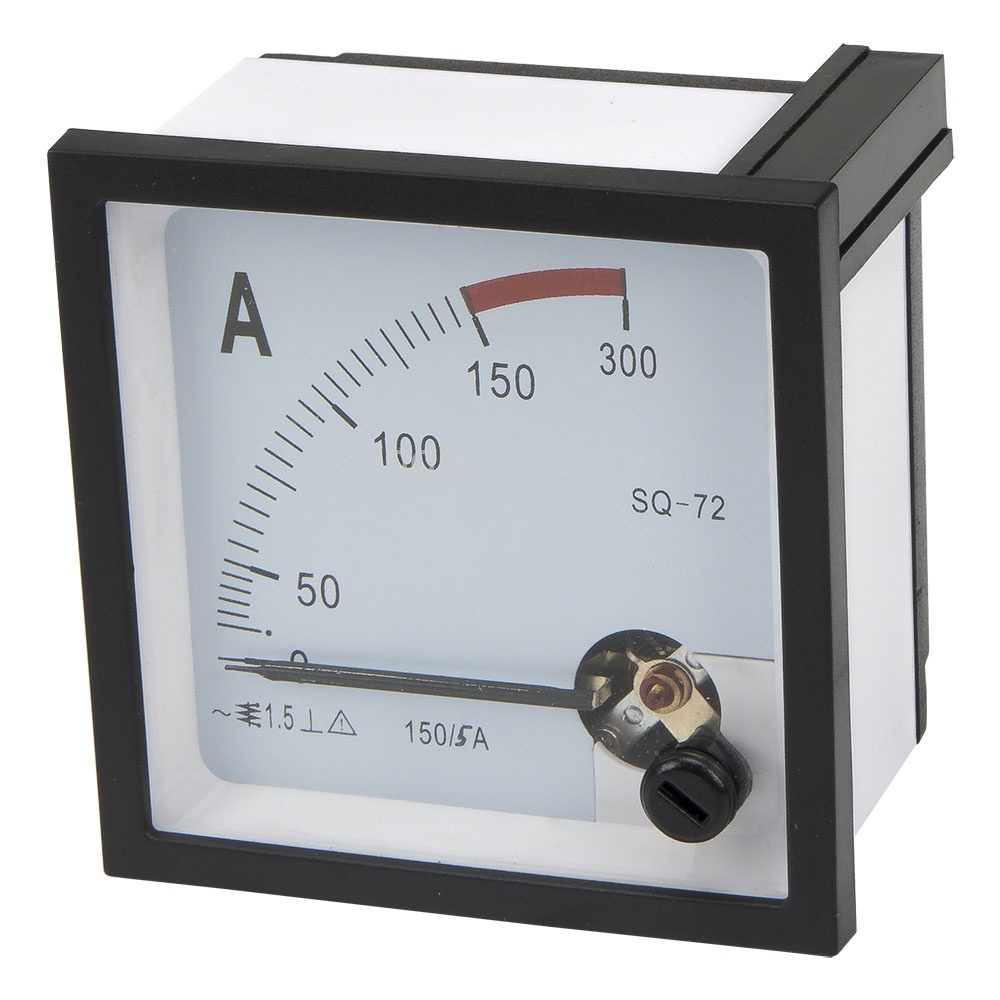

SQ-72-A150/5 72*72mm current transformer type 150/5A pointer AC ammeter
Price: US $3.91 / piece
Model number: SQ-72-A150/5
Product name: Pointer ammeter
Deliver to:
Shipping:
US $7.79via
Estimated Delivery Time: 12-20 days
Total price:US $11.7
Buy Now
Add to Cart
Inquire
Payment:PayPalWESTERN UNIONBANK TRANSFER
Product description
External dimensions and parameters
| Model number | Same model | Type | Range | Online store:
|
| SQ-72-A | CZ-72-A | Ammeter | Connect directly: 1, 2, 3, 10, 15, 20, 30, 50A;
Need current transformer: 10/5, 20/5, 30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5A | Visiting... |
| SQ-72-V | CZ-72-V | Voltmeter | 5, 10, 15, 20, 30, 50, 100, 150, 250, 250, 300, 450, 500, 600, 750, 1000V
1K/100, 10K/100, 6K/100V | US $3.91 - 5.03/ pieceOrder (18) |
SQ-72-A pointer ammeter model number legend
150/5
50: 50A (Connect directly)
50/5: 50/5A (Need current transformer)
General
| Model number |
SQ-72 |
| Accuracy level |
1.5 level and 2.5 level |
| External dimensions |
72x72 mm |
| Perforation dimensions |
67 10x67 10 mm |
| Matched current transformer |
BH-0.66-30 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity |
85% RH max, non-condensing |
SQ-72-A pointer ammeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
SQ-72-A1 |
1A |
1 |
US $3.91 |
Order |
| 2 |
SQ-72-A2 |
2A |
1 |
US $3.91 |
Order |
| 3 |
SQ-72-A3 |
3A |
1 |
US $3.91 |
Order |
| 4 |
SQ-72-A5 |
5A |
1 |
US $3.91 |
Order |
| 5 |
SQ-72-A10 |
10A |
1 |
US $3.91 |
Order Unfold |
| 6 |
SQ-72-A15 |
15A |
1 |
US $3.91 |
Order |
| 7 |
SQ-72-A20 |
20A |
1 |
US $3.91 |
Order |
| 8 |
SQ-72-A30 |
30A |
1 |
US $3.91 |
Order |
| 9 |
SQ-72-A50 |
50A (Connect directly) |
1 |
US $4.58 |
Order |
| 10 |
SQ-72-A50/5 |
50/5A (Need current transformer) |
1 |
US $3.91 |
Order |
| 11 |
SQ-72-A75/5 |
75/5A |
1 |
US $3.91 |
Order |
| 12 |
SQ-72-A100/5 |
100/5A |
1 |
US $3.91 |
Order |
| 13 |
SQ-72-A150/5 |
150/5A |
1 |
US $3.91 |
Visiting... |
| 14 |
SQ-72-A200/5 |
200/5A |
1 |
US $3.91 |
Order |
| 15 |
SQ-72-A300/5 |
300/5A |
1 |
US $3.91 |
Order |
| 16 |
SQ-72-A400/5 |
400/5A |
1 |
US $3.91 |
Order |
Packaging Details
Package weight: 0.2kg
Package size: 13 x 8 x 9 cm
Product quantity: 1pcs
