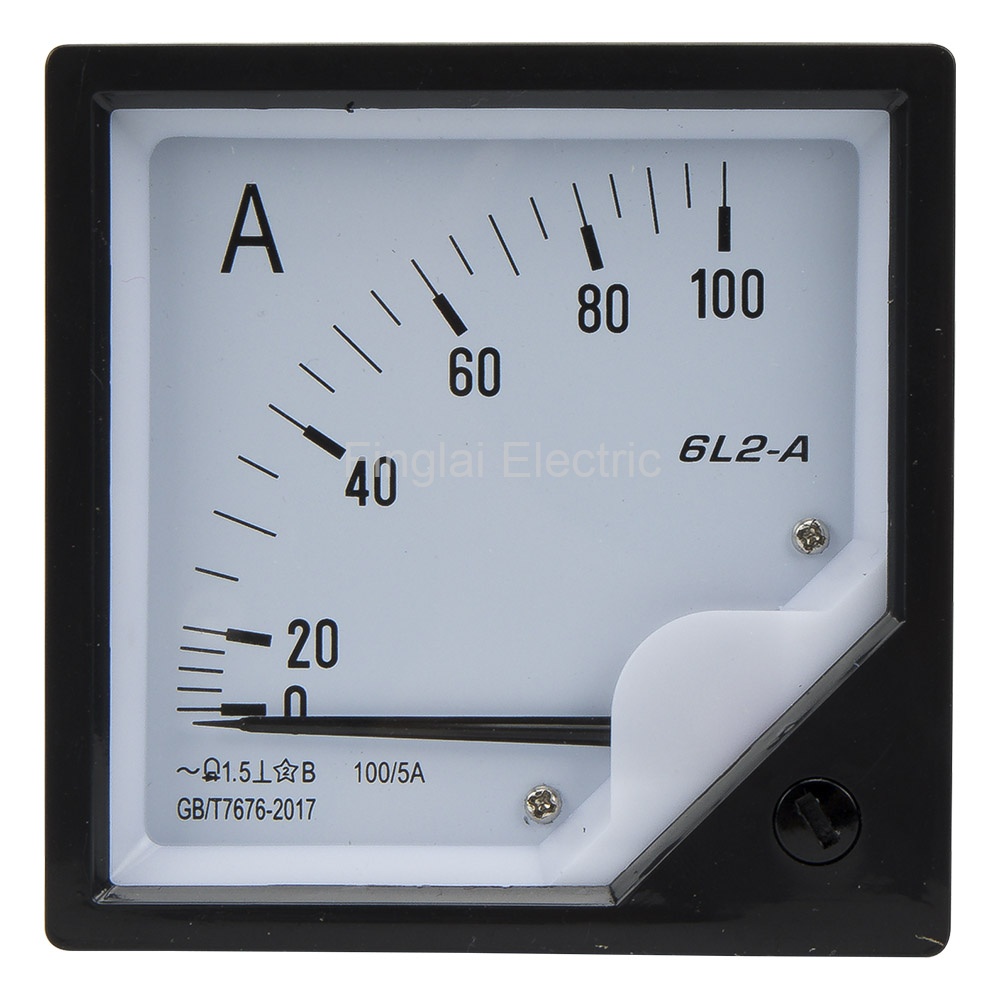

6L2-A100/5 80*80mm current transformer type 100/5A pointer AC ammeter 6L2 series analog AMP meter 80x80 mm size
13 sold
Product features
Mouse over to zoom in
6L2-A100/5 80*80mm current transformer type 100/5A pointer AC ammeter 6L2 series analog AMP meter 80x80 mm size
Price: US $3.08 / piece
Model number: 6L2-A100/5
Product name: Pointer ammeter
Deliver to:
Shipping:
US $9.84via
Estimated Delivery Time: 9-15 days
Total price:US $12.92
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store:
|
| 6L2-A | Ammeter | 10, 20, 30, 50, 100, 200, 300, 500mA; 1, 2, 3, 5, 10, 15, 20, 30, 50A;
30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1K/5, 1.5K/5, 2K/5, 3K/5A, 3.5K/5A | Visiting... |
| 6L2-V | Voltmeter | 3, 5, 15, 20, 10, 30, 50, 100, 150, 250, 300, 450, 500, 600, 1KV
6K/100, 10K/100, 35/100V | US $3.08/ pieceOrder (12) |
| 6L2-Hz | Frequency meter | 45-55Hz 100V, 45-55Hz 220V, 45-55Hz 380V, 45-65Hz 380V, 45-65Hz 500V | US $6.94/ pieceOrder |
| 6L2-W | Power meter | 600KW 380V 1K/5A | |
| 6L2-COSφ | Factor meter | 5A 380V, 5A 100V | |
▇ 6L2-A pointer ammeter model number legend
▇ General
| Model number |
6L2 |
| Accuracy level |
1.5 level and 2.5 level |
| External dimensions |
80x80x73 mm |
| Perforation dimensions |
76 10x76 10 mm |
| Matched current transformer |
BH-0.66-30 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity |
80% RH max, non-condensing |
▇ 6L2-A pointer ammeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
6L2-A5 |
5A |
1 |
US $3.08 |
Order |
| 2 |
6L2-A10 |
10A |
1 |
US $3.08 |
Order |
| 3 |
6L2-A20 |
20A |
1 |
US $3.08 |
Order |
| 4 |
6L2-A30 |
30A |
1 |
US $3.08 |
Order |
| 5 |
6L2-A50 |
50A |
1 |
US $3.08 |
Order Unfold |
| 6 |
6L2-A25/5 |
25/5A |
1 |
US $3.08 |
Order |
| 7 |
6L2-A50/5 |
50/5A |
1 |
US $3.08 |
Order |
| 8 |
6L2-A100/5 |
100/5A |
1 |
US $3.08 |
Visiting... |
| 9 |
6L2-A150/5 |
150/5A |
1 |
US $3.08 |
Order |
| 10 |
6L2-A200/5 |
200/5A |
1 |
US $3.08 |
Order |
| 11 |
6L2-A250/5 |
250/5A |
1 |
US $3.08 |
Order |
| 12 |
6L2-A300/5 |
300/5A |
1 |
US $3.08 |
Order |
| 13 |
6L2-A400/5 |
400/5A |
1 |
US $3.08 |
Order |
| 14 |
6L2-A500/5 |
500/5A |
1 |
US $3.08 |
Order |
| 15 |
6L2-A600/5 |
600/5A |
1 |
US $3.08 |
Order |
| 16 |
6L2-A3.5K/5 |
3.5K/5A |
1 |
US $3.08 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 21 x 11 x 14 cm
