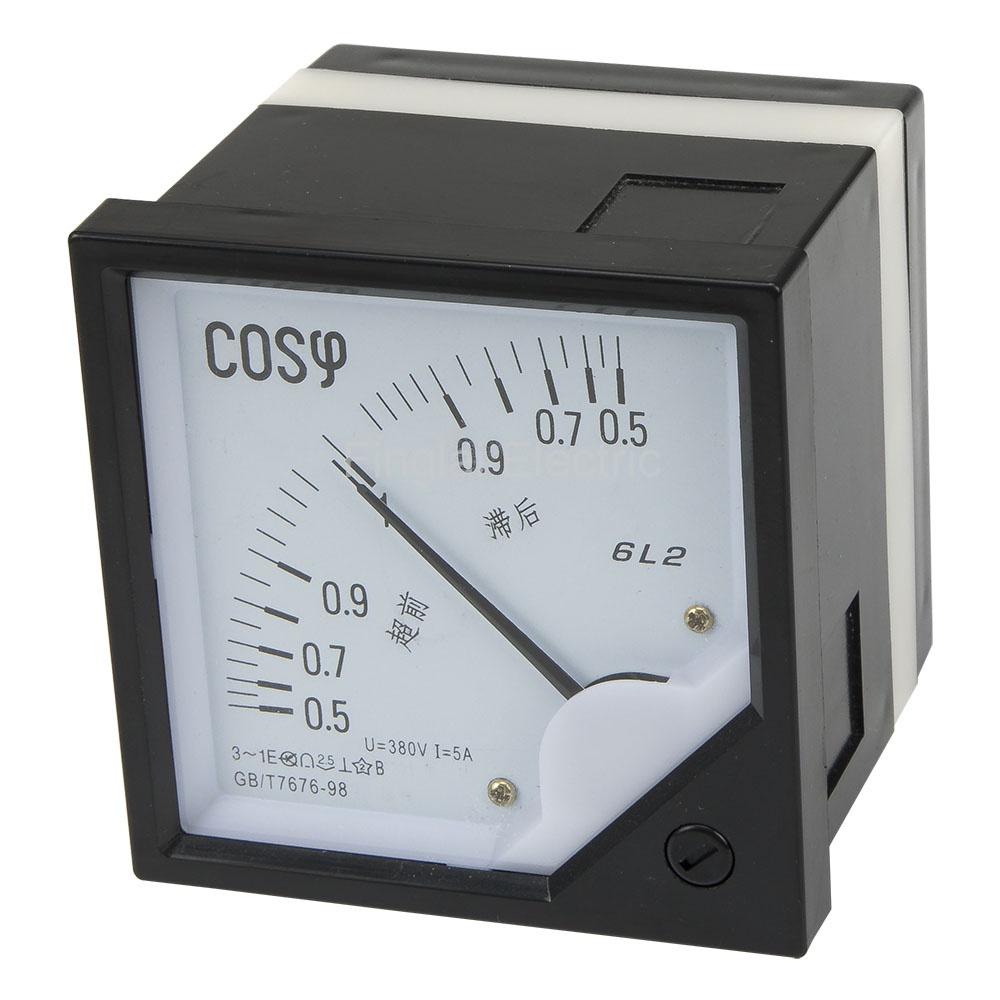

6L2-COS series 80*80mm pointer AC analog three phase power factor meters

Main child models
Mouse over to zoom in
Price: US $6.6 / piece
Model number: 6L2-COS0.5T1-380V5A
Product name: Pointer power factor meter
Measured range:
0.5(lagging)~1~0.5(leading)
Rated voltage:
380V
Rated current:
5A
View details
Product description
▇ External dimensions and parameters
Model numberTypeRangeOnline store:
6L2-AAC Ammeter10, 20, 30, 50, 100, 200, 300, 500mA; 1, 2, 3, 5, 10, 15, 20, 30, 50A;
30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1K/5, 1.5K/5, 2K/5, 3K/5A, 3.5K/5A		US $3.08/ pieceOrder (17)
6L2-VAC Voltmeter3, 5, 15, 20, 10, 30, 50, 100, 150, 250, 300, 450, 500, 600, 1KV
6K/100, 10K/100, 35/100V		US $3.08/ pieceOrder (12)
6L2-HZFrequency meter45-55Hz 100V, 45-55Hz 220V, 45-55Hz 380V, 45-65Hz 380V, 45-65Hz 500VUS $7.05/ pieceOrder (1)
6L2-WPower meter600KW 380V 1K/5A
6L2-COSPower factor meter5A 380V, 5A 100VVisiting...
▇ 6L2-COS pointer power factor meter model number legend
6L2-COS
Parent Model Number
Measured range
0.5T1: 0.5(lagging)~1~0.5(leading)
Rated voltage
-380V: 380V
Rated current
5A: 5A
▇ General
Model number 6L2
Accuracy level 1.5 level and 2.5 level
External dimensions 80x80x73 mm
Perforation dimensions 76 10x76 10 mm
Matched current transformer BH-0.66-30
Resistance to mechanical forces Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength 2KV 50Hz for 1min
Voltage affection The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position Vertical
Operating temperature -20 to 40 ℃ (-4 to 104 ℉)
Operating humidity 80% RH max, non-condensing
▇ 6L2-COS pointer power factor meter child models
No Model Number Measured Range Rated Voltage Rated Current MOQ Unit Price
1 6L2-COS0.5T1-380V5A 0.5(lagging)~1~0.5(leading) 380V 5A 1 US $6.6
