6L2-A5 80*80mm 5A pointer AC ammeter 6L2 series analog AMP meter 80x80 mm size

Product features
Mouse over to zoom in

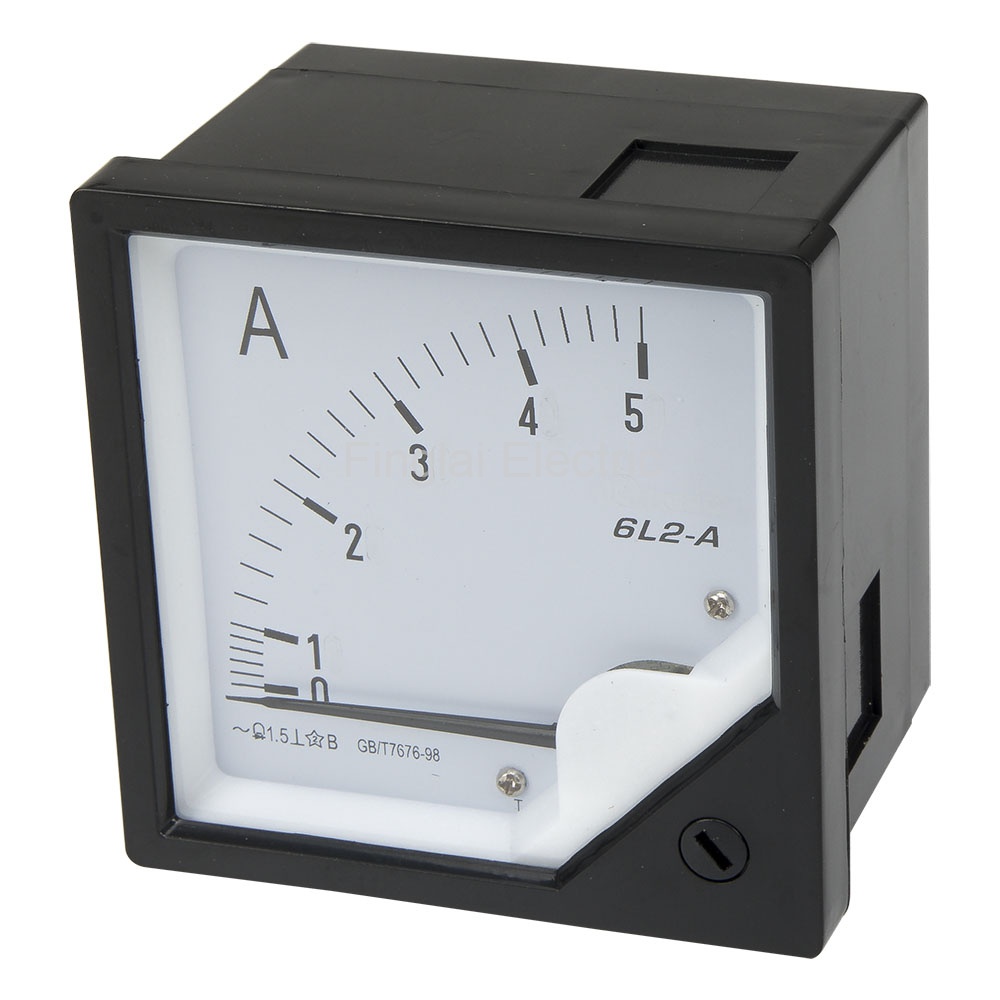

6L2-A5 80*80mm 5A pointer AC ammeter
Price: US $3.08 / piece
Model number: 6L2-A5
Product name: Pointer ammeter
Deliver to:
Shipping:
US $11.21via
Estimated Delivery Time: 12-20 days
quantity:
Total price:US $14.29
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
External dimensions and parameters
Model numberTypeRangeOnline store:
6L2-AAmmeter10, 20, 30, 50, 100, 200, 300, 500mA; 1, 2, 3, 5, 10, 15, 20, 30, 50A;
30/5, 50/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1K/5, 1.5K/5, 2K/5, 3K/5A		Visiting...
6L2-VVoltmeter3, 5, 15, 20, 10, 30, 50, 100, 150, 250, 300, 450, 500, 600, 1KV
6K/100, 10K/100, 35/100V		US $3.02/ pieceOrder (7)
6L2-HzFrequency meter45-55Hz 100V, 45-55Hz 220V, 45-55Hz 380V, 45-65Hz 380V, 45-65Hz 500VUS $6.94/ pieceOrderAdd to Cart
6L2-WPower meter600KW 380V 1K/5A
6L2-COSφFactor meter5A 380V, 5A 100V
6L2-A pointer ammeter model number legend
6L2-A
Parent Model Number
5
Measured range
5: 5A
10: 10A
20: 20A
30: 30A
50: 50A
50/5: 50/5A
100/5: 100/5A
150/5: 150/5A
200/5: 200/5A
250/5: 250/5A
300/5: 300/5A
400/5: 400/5A
500/5: 500/5A
General
Model number 6L2
Accuracy level 1.5 level and 2.5 level
External dimensions 80x80x73 mm
Perforation dimensions 76 10x76 10 mm
Matched current transformer BH-0.66-30
Resistance to mechanical forces Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength 2KV 50Hz for 1min
Voltage affection The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position Vertical
Operating temperature -20 to 40 ℃ (-4 to 104 ℉)
Operating humidity 80% RH max, non-condensing
6L2-A pointer ammeter child models
No Model Number Measured Range MOQ Unit Price Related Product
1 6L2-A5 5A 1 US $3.08 Visiting...
2 6L2-A10 10A 1 US $3.08 Order
3 6L2-A20 20A 1 US $3.08 Order
4 6L2-A30 30A 1 US $3.08 Order
5 6L2-A50 50A 1 US $3.08 Order Unfold
6 6L2-A50/5 50/5A 1 US $3.08 Order
7 6L2-A100/5 100/5A 1 US $3.08 Order
8 6L2-A150/5 150/5A 1 US $3.08 Order
9 6L2-A200/5 200/5A 1 US $3.08 Order
10 6L2-A250/5 250/5A 1 US $3.08 Order
11 6L2-A300/5 300/5A 1 US $3.08 Order
12 6L2-A400/5 400/5A 1 US $3.08 Order
13 6L2-A500/5 500/5A 1 US $3.08 Order
Packaging Details
Package weight: 0.4kg
Package size: 21 x 11 x 14 cm
Product quantity: 1pcs
