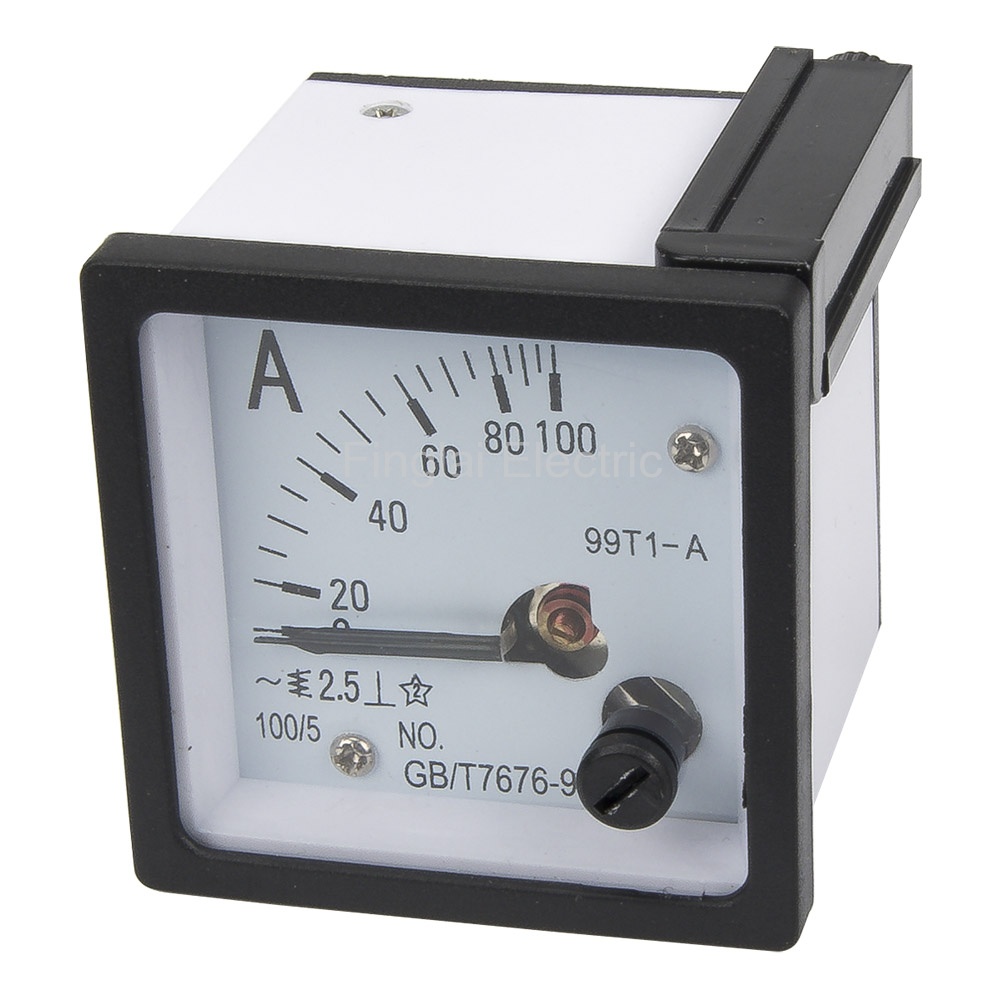

99T1-A100/5 48*48mm 100/5A pointer AC analog ammeter 99T1 series analog AMP meter 48x48 mm size
Product features
Mouse over to zoom in
99T1-A100/5 48*48mm 100/5A pointer AC analog ammeter 99T1 series analog AMP meter 48x48 mm size
Price: US $2.32 / piece
Model number: 99T1-A100/5
Product name: Pointer ammeter
Deliver to:
Shipping:
US $5.74via
Estimated Delivery Time: 9-15 days
Total price:US $8.06
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store:
|
| 99T1-A | Ammeter (usual type) | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | Visiting... |
| 99T1-AW | Ammeter (with white cover) | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | US $2.55/ pieceOrder (11) |
| 99T1-V | Voltmeter | 250, 300, 450, 500V | US $2.91/ pieceOrder (4) |
| 99T1-HZ | Frequency meter | 45-65Hz 380V, 45-65Hz 220V | US $6.66/ pieceOrder (2) |
▇ 99T1-A pointer ammeter model number legend
▇ General
| Model number |
99T1 |
| Accuracy level |
1.5 level and 2.5 level |
| External dimensions |
48x48 mm |
| Perforation dimensions |
45 10x45 10 mm |
| Matched current transformer |
99t1-A:BH-0.66-30 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity |
80% RH max, non-condensing |
▇ 99T1-A pointer ammeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
99T1-A10/5 |
10/5A |
1 |
US $2.32 |
Order |
| 2 |
99T1-A30/5 |
30/5A |
1 |
US $2.32 |
Order |
| 3 |
99T1-A40/5 |
40/5A |
1 |
US $2.32 |
Order |
| 4 |
99T1-A50/5 |
50/5A |
1 |
US $2.32 |
Order |
| 5 |
99T1-A75/5 |
75/5A |
1 |
US $2.32 |
Order Unfold |
| 6 |
99T1-A100/5 |
100/5A |
1 |
US $2.32 |
Visiting... |
| 7 |
99T1-A150/5 |
150/5A |
1 |
US $2.32 |
Order |
| 8 |
99T1-A200/5 |
200/5A |
1 |
US $2.32 |
Order |
| 9 |
99T1-A250/5 |
250/5A |
1 |
US $2.32 |
Order |
| 10 |
99T1-A300/5 |
300/5A |
1 |
US $2.32 |
Order |
| 11 |
99T1-A400/5 |
400/5A |
1 |
US $2.32 |
Order |
| 12 |
99T1-A500/5 |
500/5A |
1 |
US $2.32 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 8 x 8 x 8 cm
