99T1-HZ45T65-220V 48*48mm pointer AC analog frequency meter ►

99T1-HZ 45-65Hz 380V 48*48mm pointer AC analog frequency meter

3 sold
Product features
Mouse over to zoom in

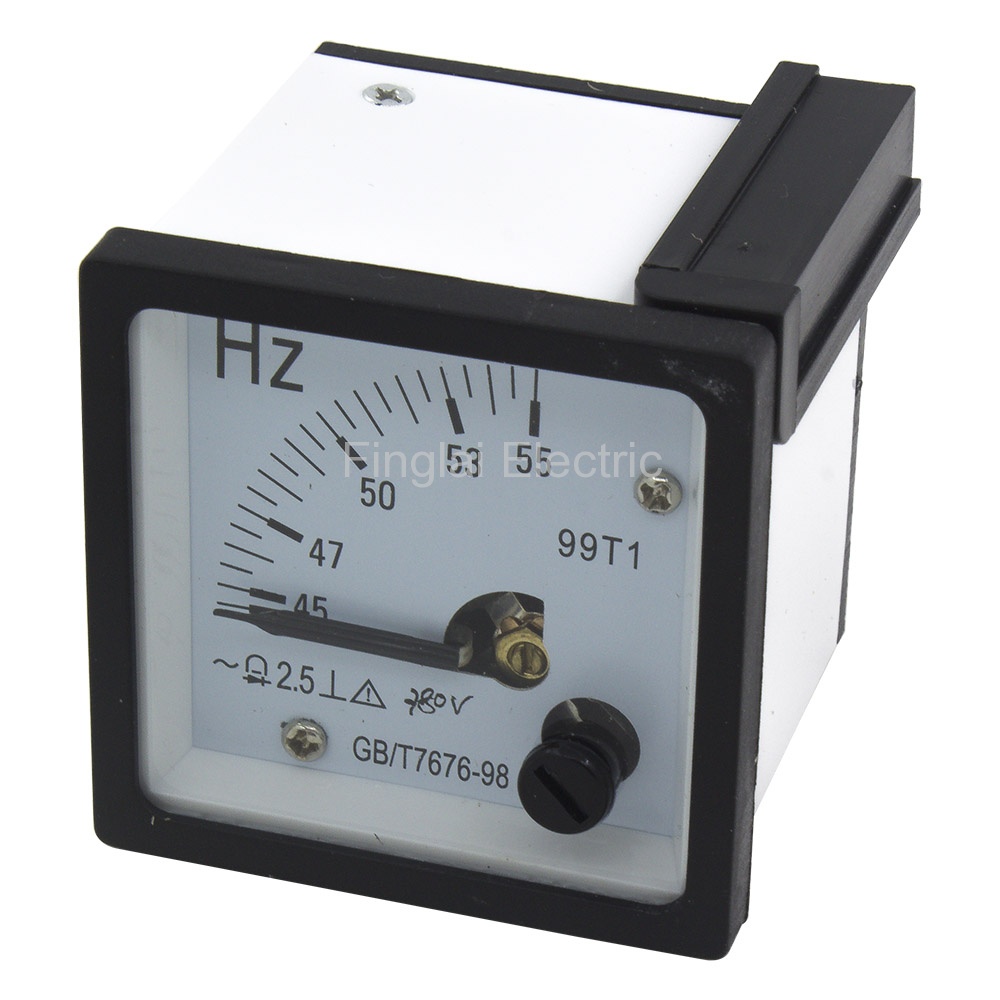

99T1-HZ 45-65Hz 380V 48*48mm pointer AC analog frequency meter
Price: US $6.66 / piece
Model number: 99T1-HZ45T65-380V
Product name: Pointer frequency meter
Frequency range:
45-65Hz
Voltage:
380V
US $6.66220V
US $6.66
Deliver to:
Shipping:
US $8.69via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $15.35
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
Model numberTypeRangeOnline store:
99T1-AAC Ammeter (usual type)30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A, 4K/5AUS $2.32 - 2.55/ pieceOrder (23)
99T1-AWAC Ammeter (with white cover)30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5AUS $2.55/ pieceOrder (11)
99T1-VAC Voltmeter250, 300, 450, 500VUS $2.91/ pieceOrder (4)
99T1-HZFrequency meter45-65Hz 380V, 45-65Hz 220VVisiting...
▇ 99T1-HZ pointer frequency meter model number legend
99T1-HZ
Parent Model Number
45T65
Frequency range
45T65: 45-65Hz
-380V
Voltage
-380V: 380V
-220V: 220V
▇ General
Model number 99T1
Accuracy level 1.5 level and 2.5 level
External dimensions 48x48 mm
Perforation dimensions 45 10x45 10 mm
Matched current transformer 99t1-A:BH-0.66-30
Resistance to mechanical forces Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength 2KV 50Hz for 1min
Voltage affection The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position Vertical
Operating temperature -20 to 40 ℃ (-4 to 104 ℉)
Operating humidity 80% RH max, non-condensing
▇ 99T1-HZ pointer frequency meter child models
No Model Number Frequency Range Voltage MOQ Unit Price Related Product
1 99T1-HZ45T65-380V 45-65Hz 380V 1 US $6.66 Visiting...
2 99T1-HZ45T65-220V 45-65Hz 220V 1 US $6.66 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 8 x 8 x 8 cm
