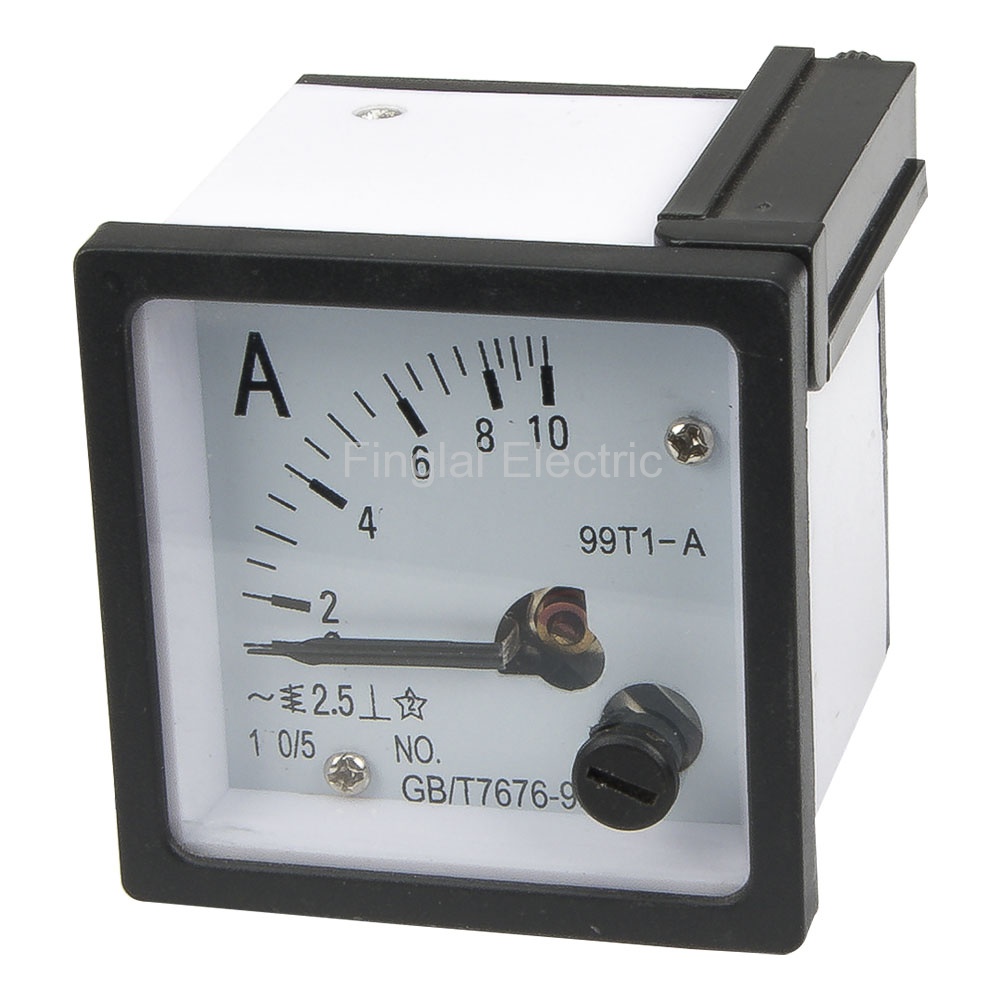

99T1-A series 48*48mm pointer AC analog ammeters
Main child models
Mouse over to zoom in
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store: |
| 99T1-A | Ammeter (usual type) | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | Visiting... |
| 99T1-AW | Ammeter (with white cover) | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | US $2.55/ pieceOrder (11) |
| 99T1-V | Voltmeter | 250, 300, 450, 500V | US $2.91/ pieceOrder (4) |
| 99T1-HZ | Frequency meter | 45-65Hz 380V, 45-65Hz 220V | US $6.66/ pieceOrder (2) |
▇ 99T1-A pointer ammeter model number legend
99T1-A
Parent Model Number
▇ General
| Model number | 99T1 |
| Accuracy level | 1.5 level and 2.5 level |
| External dimensions | 48x48 mm |
| Perforation dimensions | 45 10x45 10 mm |
| Matched current transformer | 99t1-A:BH-0.66-30 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity | 80% RH max, non-condensing |
▇ 99T1-A pointer ammeter child models
| No | Model Number | Measured Range | MOQ | Unit Price |
| 1 | 99T1-A10/5 | 10/5A | 1 | US $2.32 |
| 2 | 99T1-A30/5 | 30/5A | 1 | US $2.32 |
| 3 | 99T1-A50/5 | 50/5A | 1 | US $2.32 |
| 4 | 99T1-A75/5 | 75/5A | 1 | US $2.32 |
| 5 | 99T1-A100/5 | 100/5A | 1 | US $2.32 |
| 6 | 99T1-A150/5 | 150/5A | 1 | US $2.32 |
| 7 | 99T1-A200/5 | 200/5A | 1 | US $2.32 |
| 8 | 99T1-A250/5 | 250/5A | 1 | US $2.32 |
| 9 | 99T1-A300/5 | 300/5A | 1 | US $2.32 |
| 10 | 99T1-A400/5 | 400/5A | 1 | US $2.32 |
| 11 | 99T1-A500/5 | 500/5A | 1 | US $2.32 |
