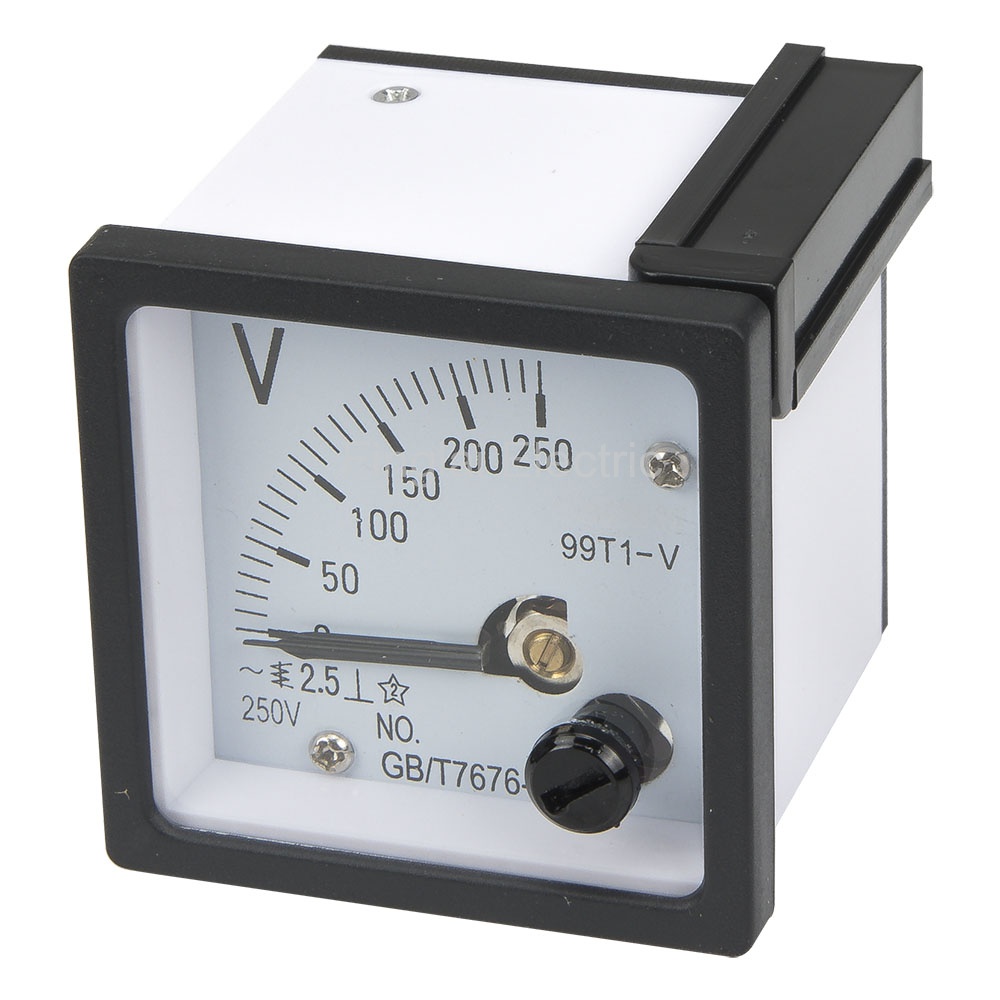

99T1-V250 48*48mm 250V white cover pointer AC analog voltmeter 99T1 series volt meter meter 48x48 mm size

Product features
Price: US $2.91 / piece
Model number: 99T1-V250
Product name: Pointer voltmeter
Measured range:
250V
US $2.91
300V
US $2.91
450V
US $2.91
500V
US $2.91
Deliver to:
Shipping:
US $6.93via
Estimated Delivery Time: 12-20 days
quantity:



Total price:US $9.84
Buy Now
Add to Cart
Inquire
Payment:
PayPalWESTERN UNIONBANK TRANSFER
Product description
External dimensions and parameters
Model numberTypeRangeOnline store:
99T1-AAmmeter (usual type)30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5AUS $2.32/ pieceOrder (11)
99T1-AWAmmeter (with white cover)30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5AUS $2.55/ pieceOrder (11)
99T1-VVoltmeter250, 300, 450, 500VVisiting...
99T1-HZFrequency meter45-65Hz 380V, 45-65Hz 220VUS $6.66/ pieceOrder (2)
99T1-V pointer voltmeter model number legend
99T1-V


Parent Model Number
250


Measured range


250: 250V


300: 300V


450: 450V


500: 500V
General
Model number 99T1
Accuracy level 1.5 level and 2.5 level
External dimensions 48x48 mm
Perforation dimensions 45 10x45 10 mm
Matched current transformer 99t1-A:BH-0.66-30
Resistance to mechanical forces Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping
Dielectric strength 2KV 50Hz for 1min
Voltage affection The measured tolerance don't exceed base tolerance when the measured value changed 15%
Work position Vertical
Operating temperature -20 to 40 ℃ (-4 to 104 ℉)
Operating humidity 80% RH max, non-condensing
99T1-V pointer voltmeter child models
No Model Number Measured Range MOQ Unit Price Related Product
1 99T1-V250 250V 1 US $2.91 Visiting...
2 99T1-V300 300V 1 US $2.91 Order
3 99T1-V450 450V 1 US $2.91 Order
4 99T1-V500 500V 1 US $2.91 Order
Packaging Details
Package weight: 0.15kg
Package size: 13 x 8 x 9 cm
Product quantity: 1pcs
