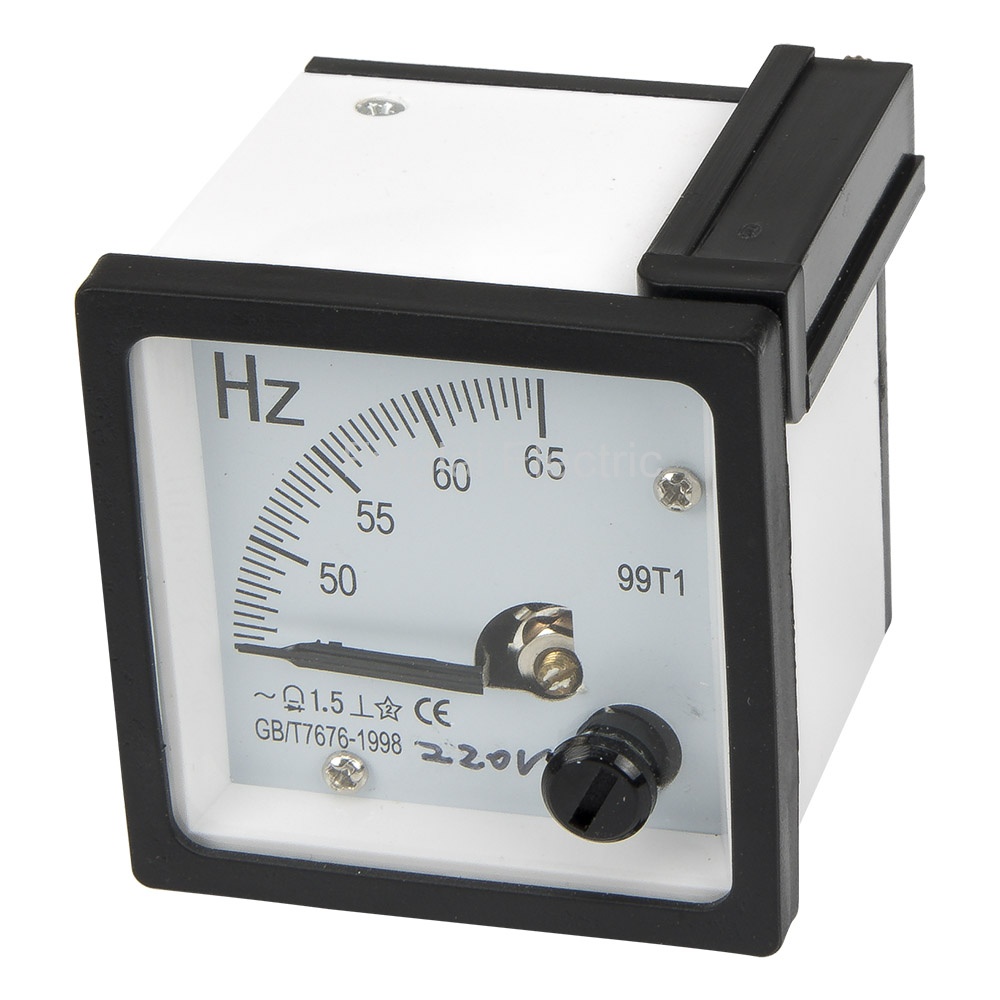

99T1-HZ 45-65Hz 220V 48*48mm pointer AC analog frequency meter
Product features
Mouse over to zoom in
99T1-HZ 45-65Hz 220V 48*48mm pointer AC analog frequency meter
Price: US $6.66 / piece
Model number: 99T1-HZ45T65-220V
Product name: Pointer frequency meter
Deliver to:
Shipping:
US $6.86via
Estimated Delivery Time: 9-15 days
Total price:US $13.52
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
Model number | Type | Range | Online store:
|
99T1-A | Ammeter (usual type) | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | US $2.32/ pieceOrder (11) |
99T1-AW | Ammeter (with white cover) | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | US $2.55/ pieceOrder (11) |
99T1-V | Voltmeter | 250, 300, 450, 500V | US $2.91/ pieceOrder (4) |
99T1-HZ | Frequency meter | 45-65Hz 380V, 45-65Hz 220V | Visiting... |
▇ 99T1-HZ pointer frequency meter model number legend
▇ General
Model number |
99T1 |
Accuracy level |
1.5 level and 2.5 level |
External dimensions |
48x48 mm |
Perforation dimensions |
45 10x45 10 mm |
Matched current transformer |
99t1-A:BH-0.66-30 |
Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
Dielectric strength |
2KV 50Hz for 1min |
Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
Work position |
Vertical |
Operating temperature |
-20 to 40 ℃ (-4 to 104 ℉) |
Operating humidity |
80% RH max, non-condensing |
▇ 99T1-HZ pointer frequency meter child models
No |
Model Number |
Frequency Range |
Voltage |
MOQ |
Unit Price |
Related Product |
1 |
99T1-HZ45T65-380V |
45-65Hz |
380V |
1 |
US $6.66 |
Order |
2 |
99T1-HZ45T65-220V |
45-65Hz |
220V |
1 |
US $6.66 |
Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 8 x 8 x 8 cm
