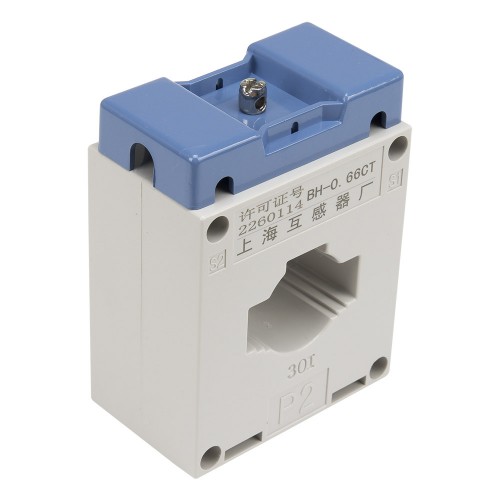

BH-0.66-30 series current transformers
Main child models
Mouse over to zoom in
Product description
▇ Model number and description
| Model number | Same model | Hole size | Rated primary current | Rated secondary current | Rated burden (VA) | Online store: |
| BH-0.66-20 | BH-0.66CT-20 | 20mm | 75/100/150A | 5A | 3.75, 5-3.75 | |
| BH-0.66CT-30 | BH-0.66-30 | 30mm | 20/30/50/75/100/150/200/250/300/400 | 5A | 5-3.75 | Visiting... |
| BH-0.66-40 | BH-0.66CT-40 | 40mm | 150/200/250/300/400/500/600 | 5A | 5-3.75, 10-3.75 | |
| BH-0.66-50 | BH-0.66CT-50 | 50mm | 300/400/500/600/750/800/1000 | 5A | 5-3.75, 10-3.75 | |
| BH-0.66-60 | BH-0.66CT-60 | 60mm | 300/400/500/600/750/800/1000/1200/1500/2000 | 5A | 5-3.75, 10-3.75, 15-3.75 | |
| BH-0.66CT-80 | BH-0.66-80 | 80mm | 500/600/750/800/1000/1200/1500/2000 | 5A | 5-3.75, 10-3.75, 15-3.75 | US $5.48 - 6.6/ pieceOrder (2) |
| BH-0.66-100 | BH-0.66CT-100 | 100mm | 750/800/1000/1200/1500/2000/2500/3000 | 5A | 10-3.75, 15-3.75, 20-3.75 | |
| BH-0.66-120 | BH-0.66CT-120 | 120mm | 1500/2000/2500/3000/4000/5000 | 5A | 15-3.75, 20-3.75 |
▇ BH-0.66CT-30 current transformer model number legend
BH-0.66CT-30
Parent Model Number
Primary current
▇ General
| Model number | BH-0.66 series |
| Rated voltage | ≤0.66KV |
| Accuracy class | 0.2, 0.5, 0.5S, 3 |
| Matched meter | 6L2, 99T1, SQ-72, SQ-96 |
| Dielectric strength | 3KV/1min |
| Alias name | BH-0.66 series mutual inductor |
▇ BH-0.66CT-30 current transformer child models
| No | Model Number | Primary Current | Secondary Current | MOQ | Unit Price |
| 1 | BH-0.66CT-30-5/1 | 5A | 1A | 1 | US $2.79 |
| 2 | BH-0.66CT-30-5/5 | 5A | 5A | 1 | US $2.56 |
| 3 | BH-0.66CT-30-10/5 | 10A | 5A | 1 | US $2.56 |
| 4 | BH-0.66CT-30-20/5 | 20A | 5A | 1 | US $2.56 |
| 5 | BH-0.66CT-30-30/5 | 30A | 5A | 1 | US $2.56 |
| 6 | BH-0.66CT-30-50/5 | 50A | 5A | 1 | US $2.56 |
| 7 | BH-0.66CT-30-75/5 | 75A | 5A | 1 | US $2.56 |
| 8 | BH-0.66CT-30-100/5 | 100A | 5A | 1 | US $2.56 |
| 9 | BH-0.66CT-30-150/5 | 150A | 5A | 1 | US $2.56 |
| 10 | BH-0.66CT-30-200/5 | 200A | 5A | 1 | US $2.56 |
| 11 | BH-0.66CT-30-250/5 | 250A | 5A | 1 | US $2.56 |
| 12 | BH-0.66CT-30-300/5 | 300A | 5A | 1 | US $2.56 |
| 13 | BH-0.66CT-30-400/5 | 400A | 5A | 1 | US $2.56 |
| 14 | BH-0.66CT-30-500/5 | 500A | 5A | 1 | US $2.79 |
| 15 | BH-0.66CT-30-600/5 | 600A | 5A | 1 | US $2.79 |
