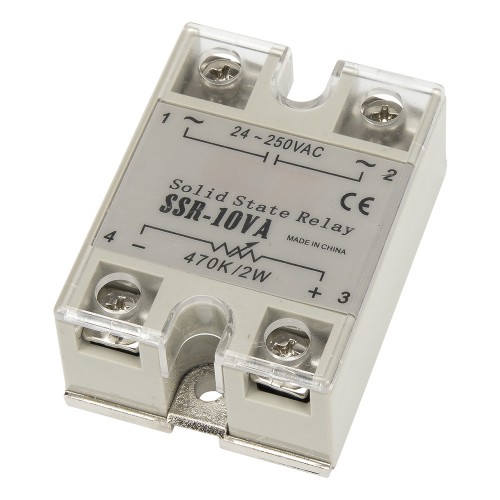

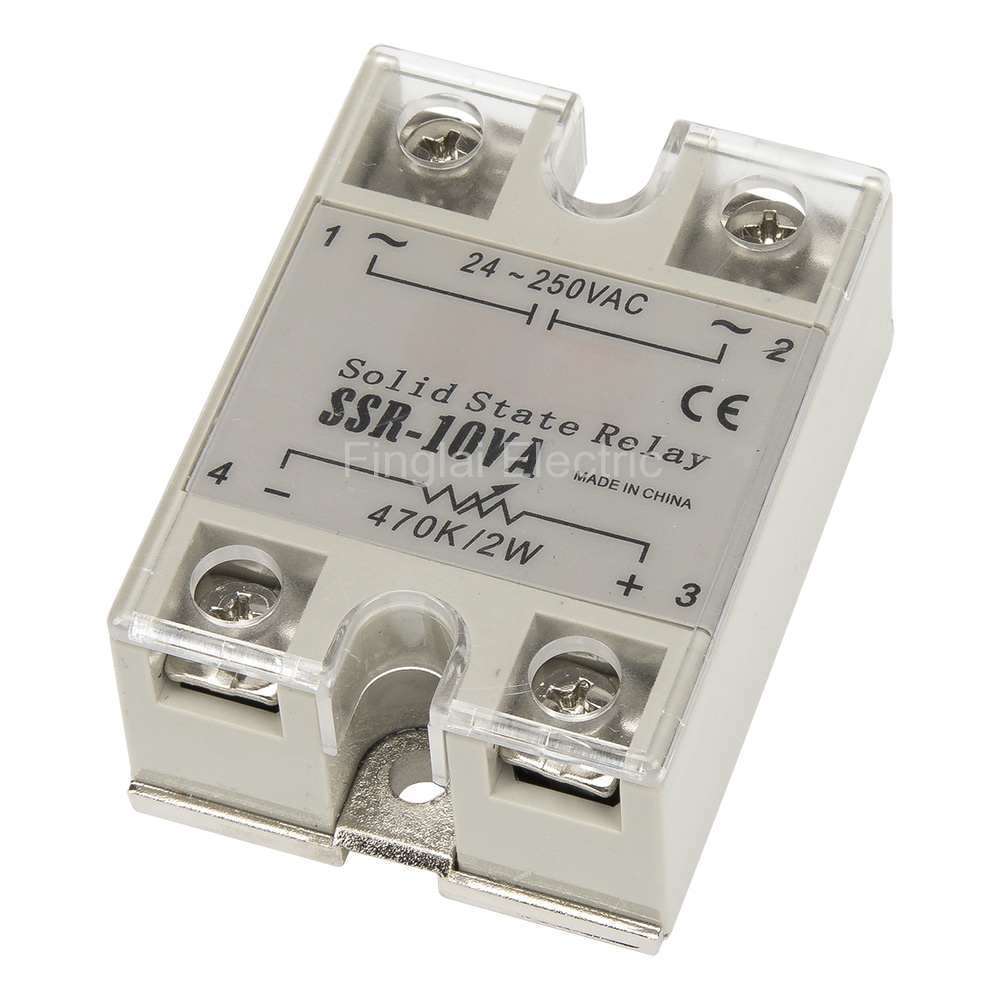

SSR-10VA single phase resistance to AC 10A 24-250V solid state voltage regulator 10VA SSR

Product features
Mouse over to zoom in
SSR-10VA single phase resistance to AC 10A 24-250V solid state voltage regulator 10VA SSR
Price: US $3.37 / piece
Model number: SSR-10VA-220V
Product name: Solid state relay
Load voltage:
24-480VAC
US $2.3324-250VAC
US $3.37
Deliver to:
Shipping:
US $8.69via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $12.06
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberLoad currentLoad voltageOnline store:
SSR-10VA10A24-480VAC; 24-250VACVisiting...
SSR-25VA25A24-480VAC; 24-250VACUS $2.53 - 3.64/ pieceOrder (2)
SSR-40VA40A24-480VAC
SSR-60VA60A24-480VAC
SSR-75VA75A24-480VAC
SSR-80VA80A24-480VAC
SSR-100VA100A24-480VAC
▇ SSR-10VA solid state relay model number legend
SSR-10VA
Parent Model Number
-220V
Load voltage
-U: 24-480VAC
-220V: 24-250VAC
▇ Suitable maximum load power
Load current (A) 10 25 40 60 75 80 100
220V resistive load power (KW) 1.1 2.8 4.4 6.6 8.3 8.8 11
220V inductive load power (KW) 0.4 0.8 1.3 1.9 2.4 2.6 3.2
▇ General
Model number SSR-VA series
Rated input control voltage Variable resistor
Input resistance 470KΩ 2W potentiometer
Wattage of VR 1/4 W min
Pick-up or drop-out time 10ms max
Control type Phase control
Input-ON indication LED
On-state leakage current 2mA max
On-state voltage drop at Imax 1.5Vac
Matched heat sink ≤40A: FHSI01-50, ≤60A: FHSI02-50, ≤120A: FHSI03-100
Matched thermal grease HZ-KS101
Dielectric strength 2500VAC 50/60Hz for 1 minute
Insulation resistance 500 MΩ min at 500 VDC
External dimensions 62x45x23.5mm
Terminals Screw
Operational temperature -30 to 75℃
Operational humidity 95% max no condensation
Alias name SSR-VA series ingle phase resistance to AC solid state voltage regulator
Advantage
1. Special general circuit design for large current, high quality circuit board.
2. Use copper terminals for big current, increase the safety of connection and use.
3. Use pure aluminium base plate, with better performance and long life.
4. Hign-end flame-retardant PV plastic, thermostability can up to 70-80 degrees.
Note 1. Model selection method: calculate the load current, according to load type, multiply the balance factor.
Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod.
Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor.
Example: 220V 3KW resistive load. 3KW/220V*2=27.3, select 40A specification.

2. To use product long and safely, please install the product with corresponding heat sink and fan.
▇ SSR-10VA solid state relay child models
No Model Number Load Voltage MOQ Unit Price Related Product
1 SSR-10VA-U 24-480VAC 1 US $2.33 Order
2 SSR-10VA-220V 24-250VAC 1 US $3.37 Visiting...
Single phase resistance to AC solid state voltage regulator drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
