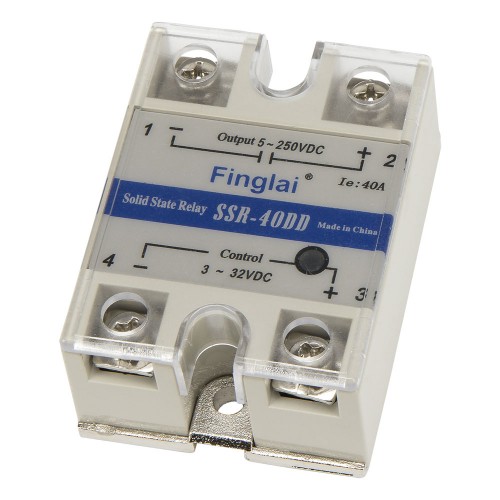

SSR-40DD single phase DC to DC 40A 5-250VDC solid state relay 40DD SSR
Product features
Mouse over to zoom in
SSR-40DD single phase DC to DC 40A 5-250VDC solid state relay 40DD SSR
Price: US $4.38 / piece
Model number: SSR-40DD
Product name: Solid state relay
Deliver to:
Shipping:
US $6.86via
Estimated Delivery Time: 9-15 days
Total price:US $11.24
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Load current | Load voltage | Online store:
|
| SSR-10DD | 10A | 5-250VDC | US $2.91/ pieceOrder |
| SSR-25DD | 25A | 5-250VDC | US $3.07/ pieceOrder |
| SSR-40DD | 40A | 5-250VDC | Visiting... |
▇ General
| Model number |
SSR-DD series |
| Rated input control voltage |
3-32Vdc |
| Rated input control current |
3-25mA |
| Pick-up voltage |
3Vdc |
| Drop-out voltage |
1Vdc |
| Pick-up or drop-out time |
10ms max |
| Control type |
Zero crossing detection |
| Input-ON indication |
LED |
| On-state leakage current |
2mA max |
| On-state voltage drop at Imax |
1.5Vac |
| Matched heat sink |
≤40A: FHSI01-50 |
| Matched thermal grease |
HZ-KS101 |
| Dielectric strength |
2500VAC 50/60Hz for 1 minute |
| Insulation resistance |
500 MΩ min at 500 VDC |
| External dimensions |
62x45x23.5mm |
| Terminals |
Screw |
| Operational temperature |
-30 to 75℃ |
| Operational humidity |
95% max no condensation |
| Alias name |
SSR-DD series single phase DC to DC SSR |
| Advantage |
|
| 1. Special general circuit design for large current, high quality circuit board. | |
| 2. Use copper terminals for big current, increase the safety of connection and use. | |
| 3. Use pure aluminium base plate, with better performance and long life. | |
| 4. Hign-end flame-retardant PV plastic, thermostability can up to 70-80 degrees. |
|
Single phase DC-DC SSR wiring diagram
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
