SSR-60DA single phase DC to AC 60A 480V solid state relay 60DA SSR

56 sold
Product features
Mouse over to zoom in

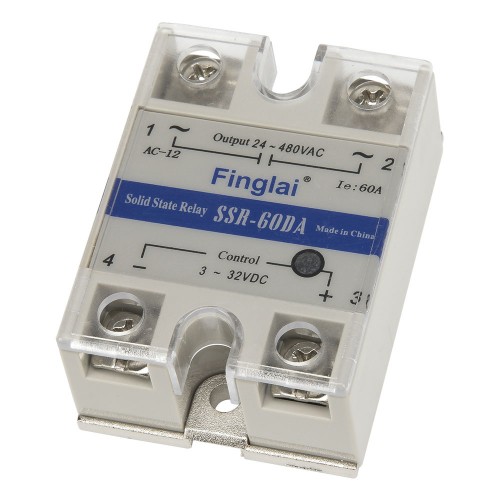

SSR-60DA single phase DC to AC 60A 480V solid state relay 60DA SSR
Price: US $4.69 / piece
Model number: SSR-60DA
Product name: Solid state relay
Deliver to:
Shipping:
US $8.69via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $13.38
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberLoad currentLoad voltageRemarkOnline store:
SSR-10DA10A24-480VacZero crossing detectionUS $2.33/ pieceOrder
SSR-25DA25A24-480VacZero crossing detectionUS $2.53/ pieceOrder
SSR-40DA40A24-480VacZero crossing detectionUS $3.19/ pieceOrder
SSR-60DA60A24-480VacZero crossing detectionVisiting...
SSR-80DA80A24-480VacZero crossing detectionUS $5.7/ pieceOrder
SSR-100DA100A24-480VacZero crossing detectionUS $5.9/ pieceOrder
SSR-10DAP10A24-480VacRandom
SSR-15DAP15A24-480VacRandom
SSR-25DAP25A24-480VacRandom
SSR-40DAP40A24-480VacRandomUS $9.58/ pieceOrder
▇ Suitable maximum load power
Load current (A) 10 25 40 60 75 80 100
220V resistive load power (KW) 1.1 2.8 4.4 6.6 8.3 8.8 11
220V inductive load power (KW) 0.4 0.8 1.3 1.9 2.4 2.6 3.2
▇ General
Model number SSR-DA series
Rated input control voltage 3-32Vdc
Rated input control current DC: 3-25mA
Pick-up voltage 3Vdc
Drop-out voltage 1Vdc
Pick-up or drop-out time 10ms max
Control type Zero crossing detection, Random
Input-ON indication LED
On-state leakage current 2mA max
On-state voltage drop at Imax 1.5Vac
Matched heat sink ≤40A: FHSI01-50, ≤60A: FHSI02-50, ≤120A: FHSI03-100
Matched thermal grease HZ-KS101
Dielectric strength 2500VAC 50/60Hz for 1 minute
Insulation resistance 500 MΩ min at 500 VDC
External dimensions 63x45.5x25.5mm
Terminals Screw
Operational temperature -30 to 75℃
Operational humidity 95% max no condensation
PCS/Box 10
Alias name SSR-DA series single phase DC to AC SSR
Advantage
1. Special general circuit design for large current, high quality circuit board.
2. Use copper terminals for big current, increase the safety of connection and use.
3. Use pure aluminium base plate, with better performance and long life.
4. Hign-end flame-retardant PV plastic, thermostability can up to 70-80 degrees.
Note 1. Model selection method: calculate the load current, according to load type, multiply the balance factor.
Resistive load: balance factor is 2 times, such as incandescent lamp, resistance wire, oven, heating rod.
Inductive load: balance factor is 7 times, such as: transformer, coil, fan motor, pump motor.
Example: 220V 3KW resistive load. 3KW/220V*2=27.3, select 40A specification.

2. To use product long and safely, please install the product with corresponding heat sink and fan.
SSR series solid state relay drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
