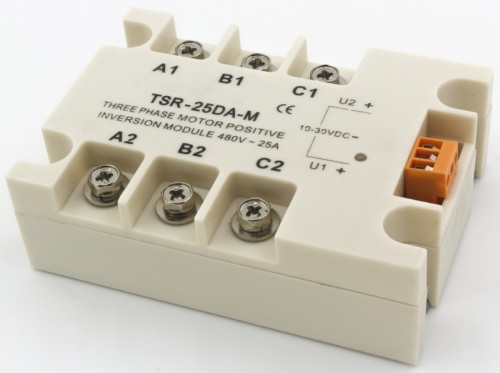

TSR-25DA-M three phase DC to AC 25A 24-480VAC three phase motor positive inversion solid state relay module
Product features
Mouse over to zoom in
TSR-25DA-M three phase DC to AC 25A 24-480VAC three phase motor positive inversion solid state relay module
Price: US $29.03 / piece
Model number: TSR-25DA-M
Product name: Solid state relay
Deliver to:
Shipping:
US $14.97via
Estimated Delivery Time: 9-15 days
Total price:US $44
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Load current | Load voltage | Online store:
|
| TSR-25DA-M | 25A | 24-480Vac | Visiting... |
| TSR-40DA-M | 40A | 24-480Vac | US $31.25/ pieceOrder |
▇ Suitable maximum load power
| Load current (A) |
25 |
40 |
| 380V inductive load power (KW) |
1.4 |
2.2 |
▇ General
| Model number |
TSR-DA-M series |
| Rated input control voltage |
10-30Vdc |
| Rated input control current |
10-30mA |
| Input-ON indication |
LED |
| On-state leakage current |
10mA max |
| On-state voltage drop at Imax |
2V |
| Conversion time |
300ms |
| Matched heat sink |
≤40A: FHSI04-105, ≤60A: FHSH01-110, ≤80A: FHSH01-150, ≤150A: FHSY01-110 |
| Matched thermal grease |
HZ-KS101 |
| Dielectric strength |
2500VAC 50/60Hz for 1 minute |
| Insulation resistance |
1000 MΩ min at 500 VDC |
| External dimensions |
105x74x33mm |
| Terminals |
Screw |
| Operational temperature |
-30 to 75℃ |
| Operational humidity |
95% max no condensation |
| Alias name |
TSR-DA-M series three phase motor positive inversion SSR module |
| Advantage |
| Special for the motor which is clockwise running and reversed running frequently |
|
Packaging Details
Product quantity: 1pc
Package weight: 0.6kg
Package size: 14.5 x 8.5 x 10.5 cm
